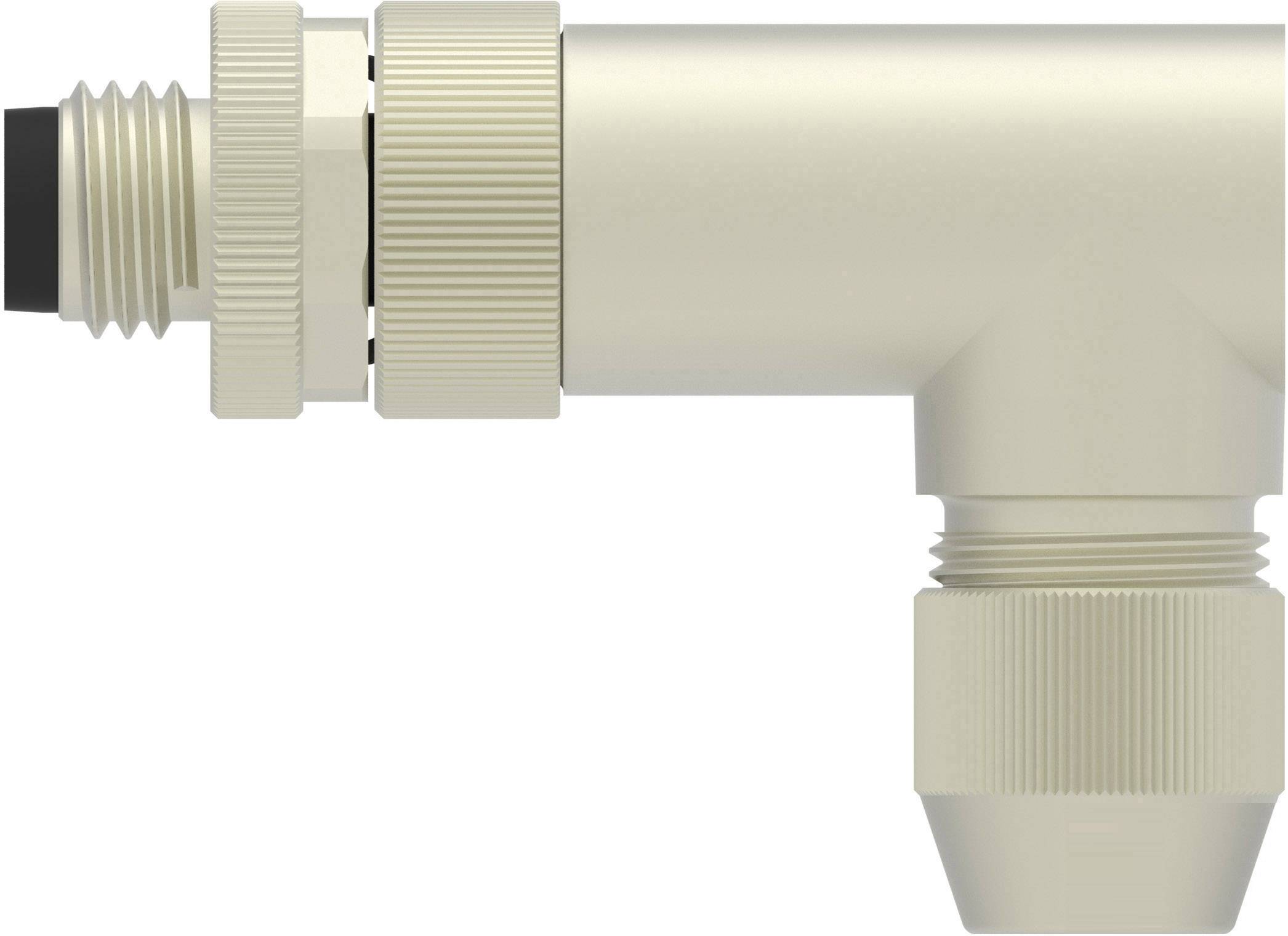

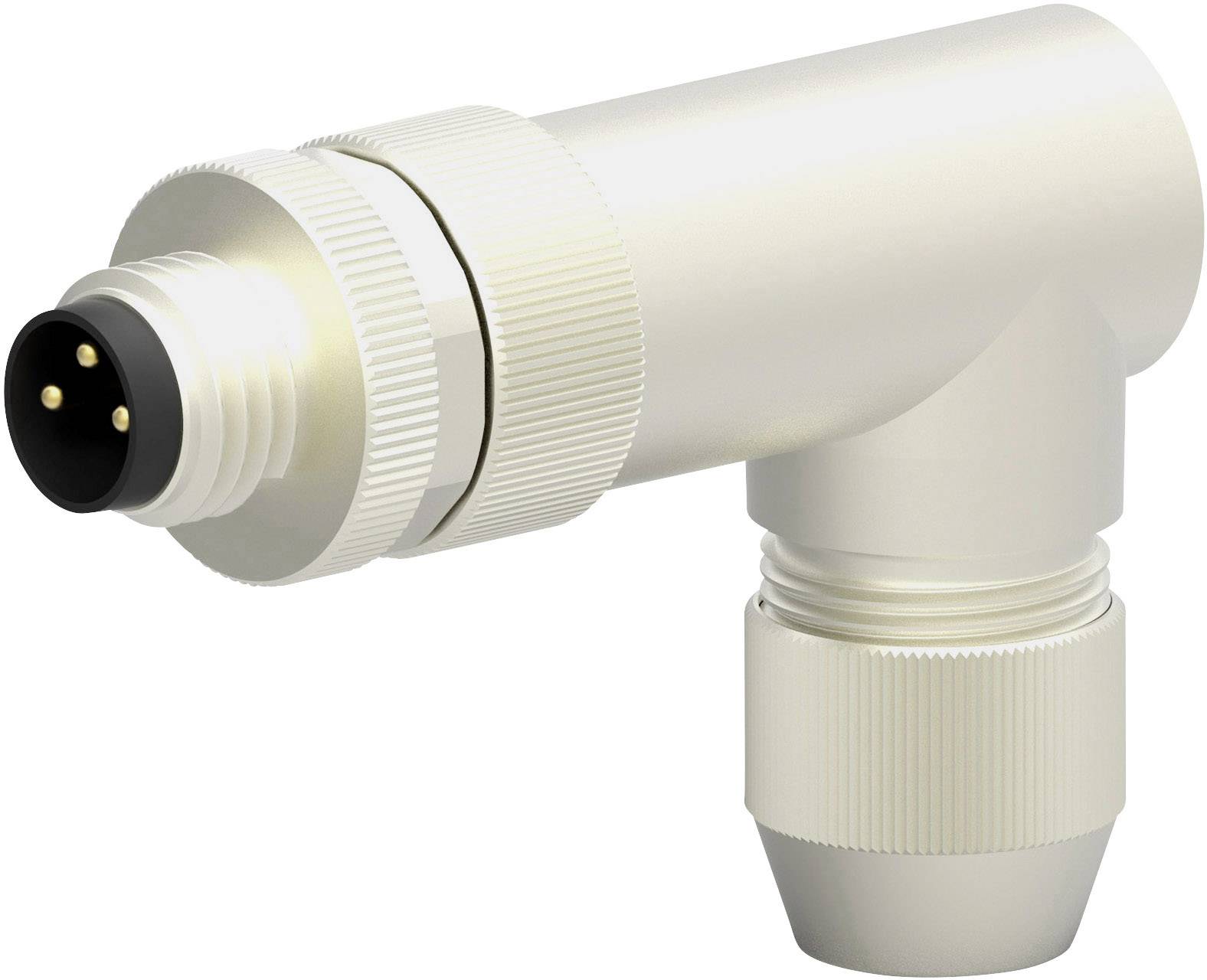

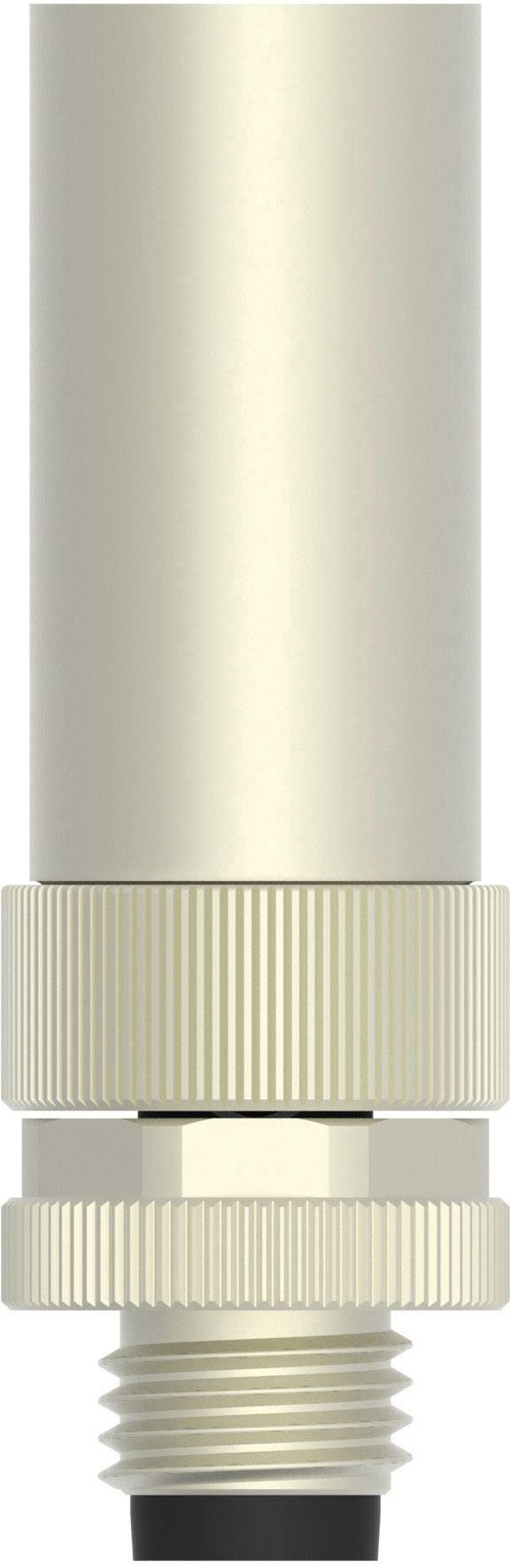

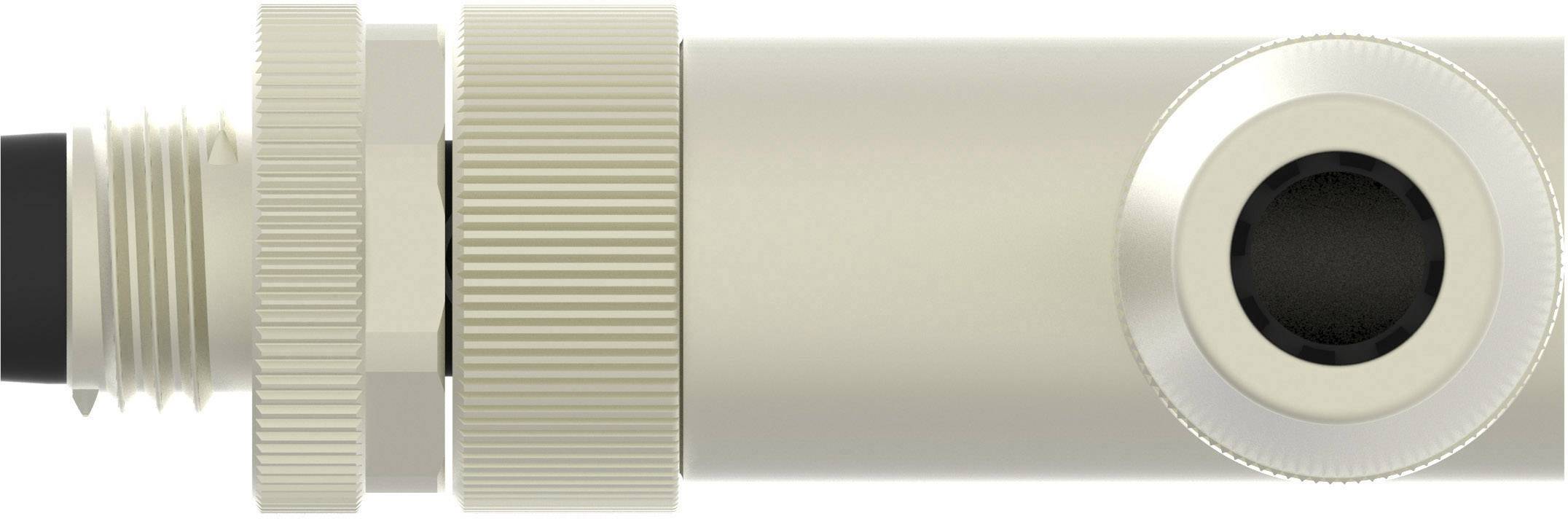

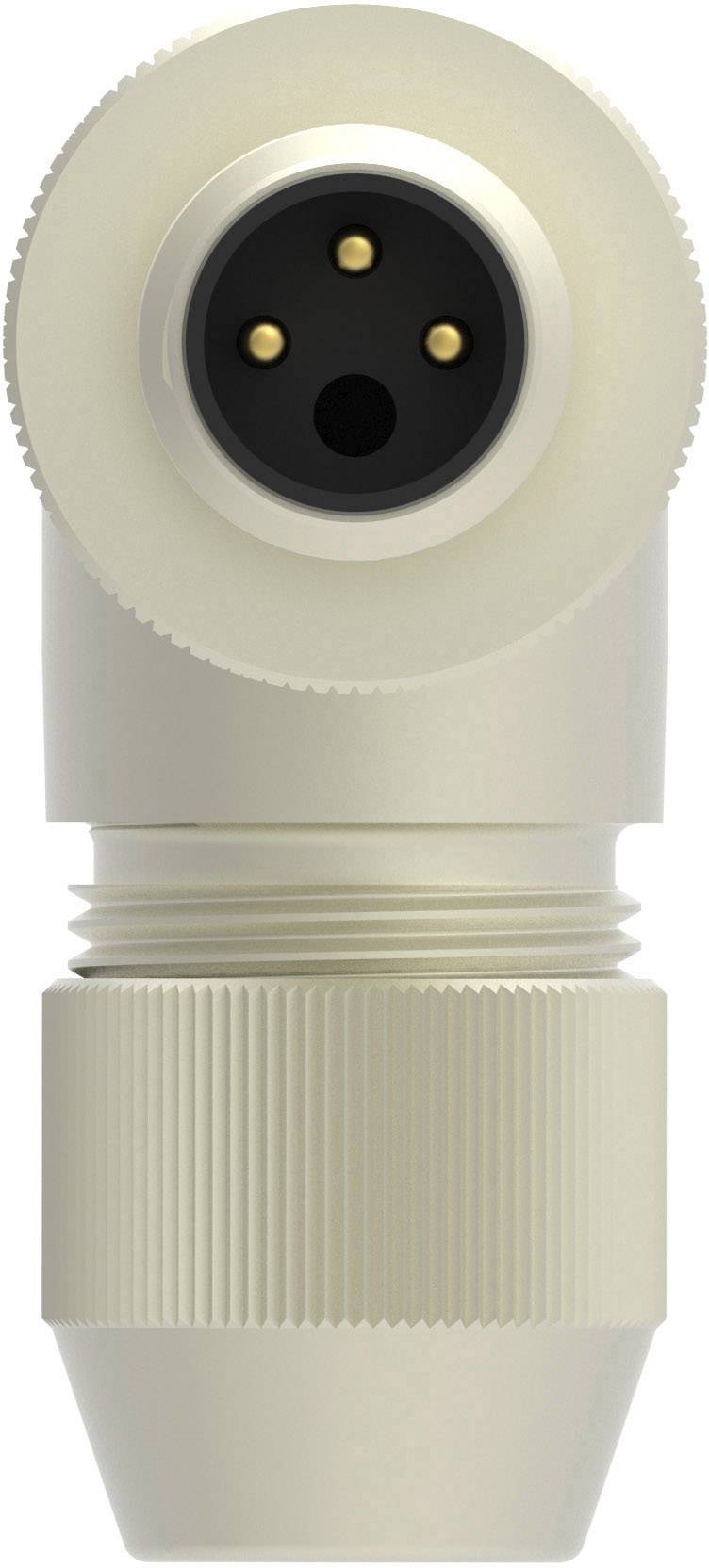

TE Connectivity T4013019031-000 Sensor/actuator connector M8 Plug, right angle No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Plug, right angle
Connector standard
Sensor connector
No. of pins
3
Nominal voltage
60 V
Number
Minimum order quantity: 6
Total (€ 11.76 / piece)
€ 70.56
plus VAT.
Highlights & Details
M8 sensor connector
Our service for you
Technical specifications
- Type
T4013019031-000
- Product type
Sensor/actuator connector
- Connector type
Plug, right angle
- Connector standard
Sensor connector
- No. of pins
3
- Nominal voltage
60 V
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Connection
Screws
- Factory colour
Silver
- Thread type connection side
M8
- Contact surface
Brass nickel plated
- max. cross section
0.25 mm²
- Min. cross section
0.14 mm²
IP67
- Features
Shielded
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Manufacturer part #
T4013019031-000
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1713669 TE Connectivity T4013019031-000 Sensor/actuator connector M8 Plug, right angle No. of pins (RJ): 3 1 pc(s)
