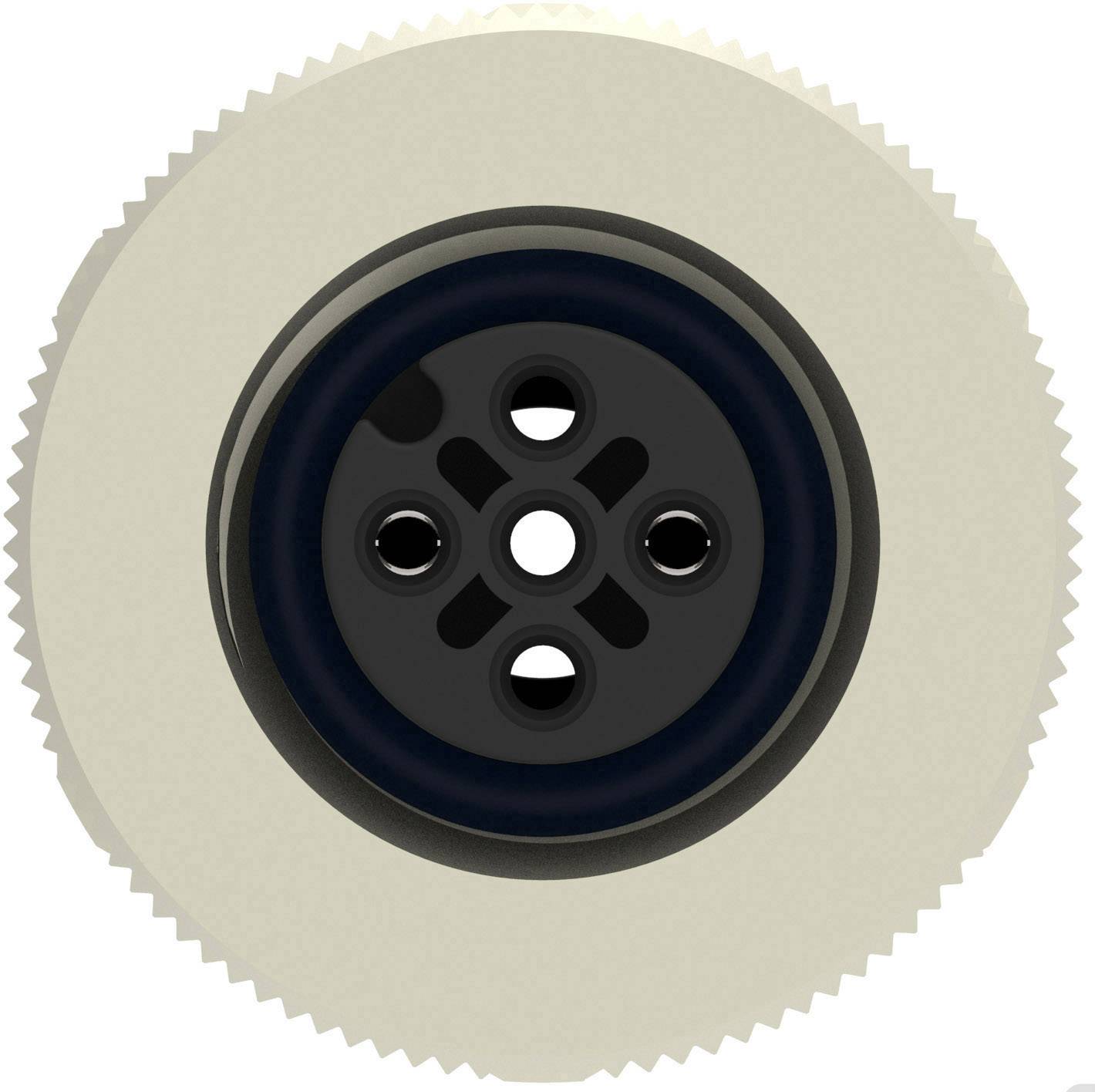

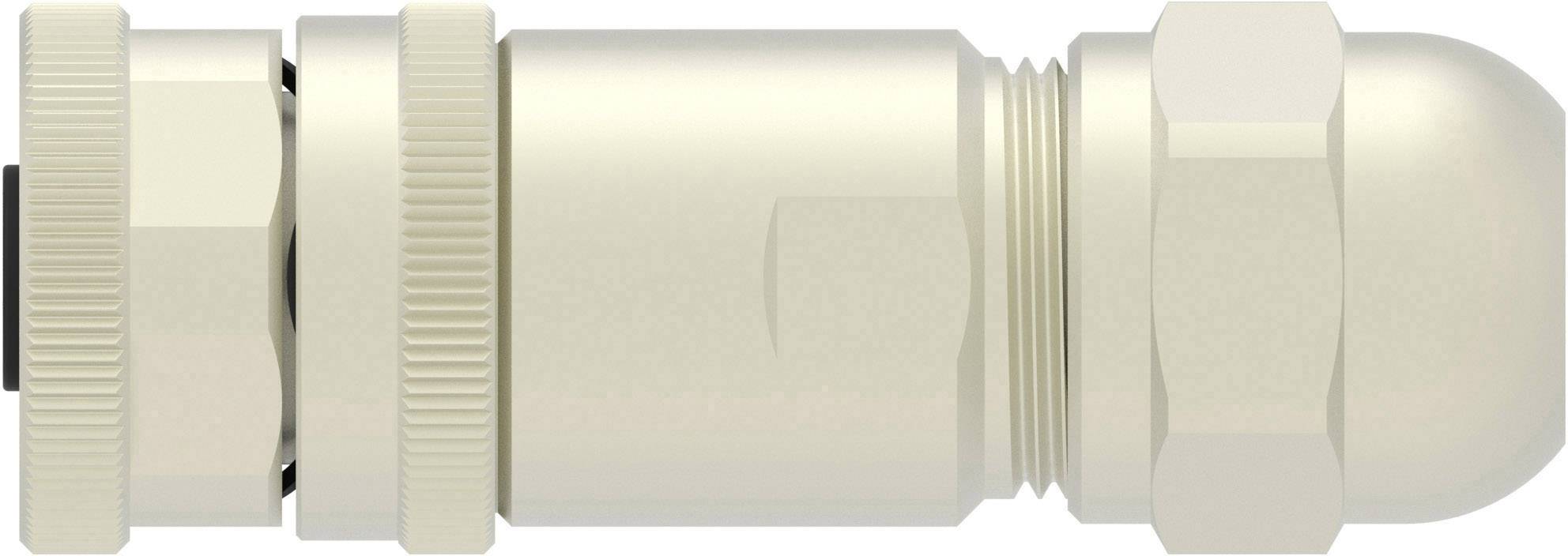

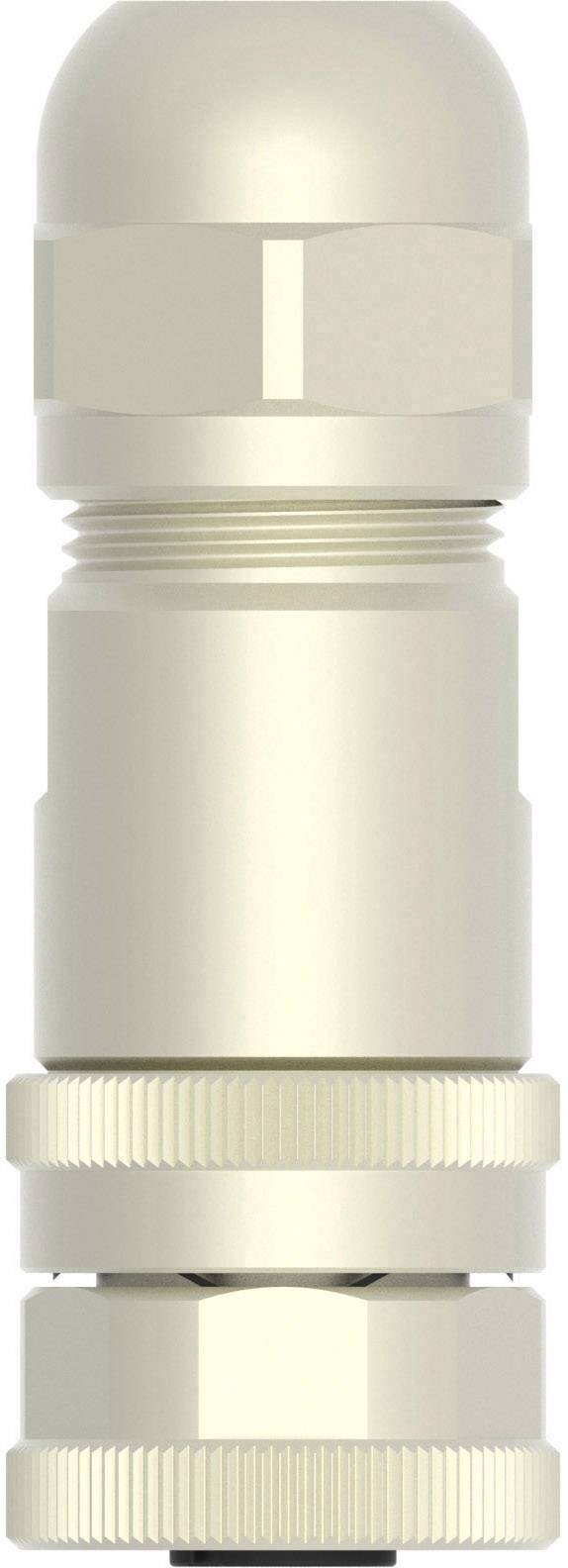

TE Connectivity T4110012021-000 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 2 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Socket, straight
Connector standard
Sensor connector
No. of pins
2
Nominal voltage
250 V
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
Only 6 Piece(s) available
Highlights & Details
M12 sensor connector
Our service for you
Technical specifications
- Type
T4110012021-000
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
- Connector standard
Sensor connector
- No. of pins
2
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Factory colour
Silver
- Thread type connection side
M12
- Thread type (wiring and installation)
PG9
- Coding
A
- Contact surface
Brass nickel plated
- max. cross section
0.82 mm²
- Min. cross section
0.20 mm²
IP67
- Features
Shielded
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Manufacturer part #
T4110012021-000
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1713648 TE Connectivity T4110012021-000 Sensor/actuator connector M12 Socket, straight No. of pins (RJ): 2 1 pc(s)
