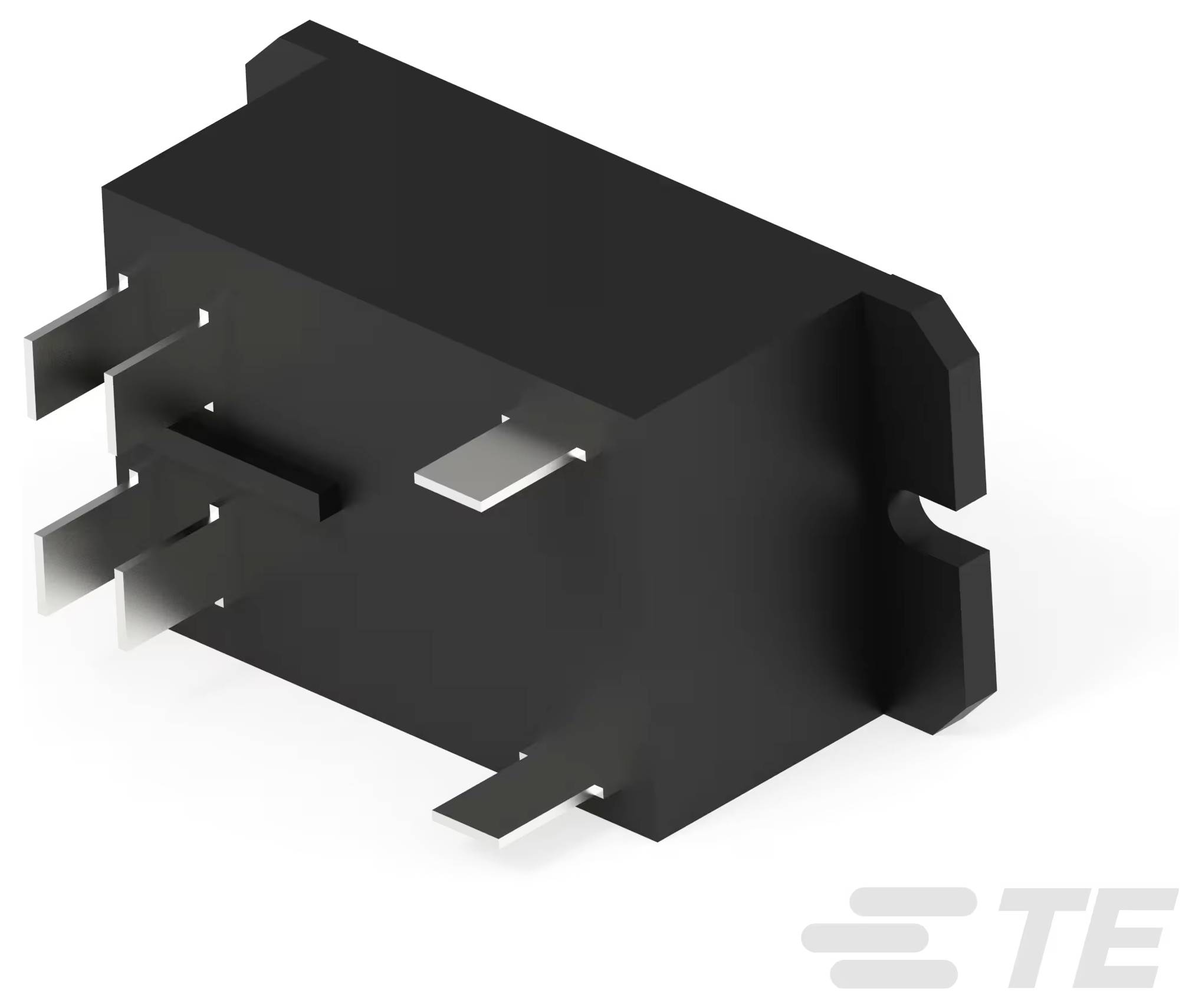

TE Connectivity T92P7D22-24 Industrial relay Nominal voltage: 24 V DC 2 makers Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial relay
Contact type
2 makers
Nominal voltage
24 V DC
Type
T92P7D22-24
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
14-day return policy included
Highlights & Details
TE Connectivity T92P7D22-24 Industrial relay Nominal voltage: 24 V DC 2 makers Piece 1 pc(s)
Our service for you
Technical specifications
- Output side connection: AC / AC
- relay mounting type: PCB mounting
- Output nominal voltage (AC relay) (Vrms): 0 – 277
- Output nominal current (A): 0 – 40
- Output nominal current (arms): 0 – 40
- Output voltage (max.) (V) 600
- output current (min.) (A): 0.5
- Output switching: Random
- sealing class: RTI
- Housing type: Plastic dust cap
- Insulation distance class (mm): 8 – 9.5
- Insulation creep current class (mm): 8 – 9.5
- Insulation probe functions: Original standing surge voltage of 8,000 V between contacts & coil
- Contact cut-off current (A): 40
- contact start current (
- A): 40 contact limit current (A): 40
- contact numbers of the poles: 2
- -pole DC monostable
- input voltage: 0 – 24
- Packaging type
Piece
- Product type
Industrial relay
- Type
T92P7D22-24
- Connection
Print
- Contact type
2 makers
- Contact material
AgCdO
- Nominal voltage
24 V DC
- Creepage distance (coil/clips)
8 mm
- Resistance (coil)
350 Ω
- Coil voltage rating
1700 mW
- Features
+ enclosure
- Max. temperature
+85 °C
- Min. temperature
-55 °C
- Length
52.32 mm
- Width
34.54 mm
- Height
30.73 mm
- Dim
(L x W x H) 52.32 x 34.54 x 30.73 mm
- Content
1 pc(s)
- Weight
86 g
- RoHS-compliant
Yes
