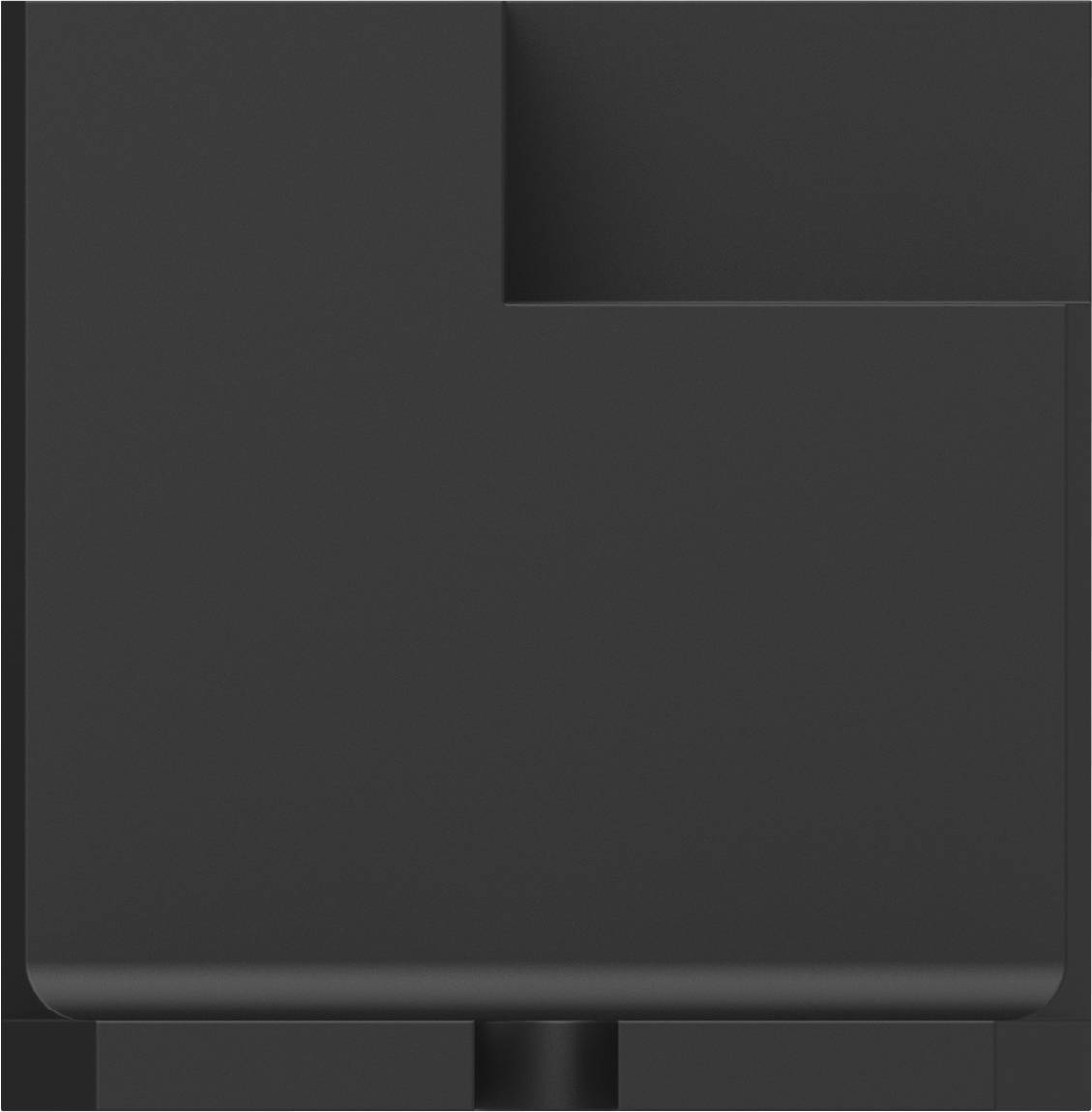

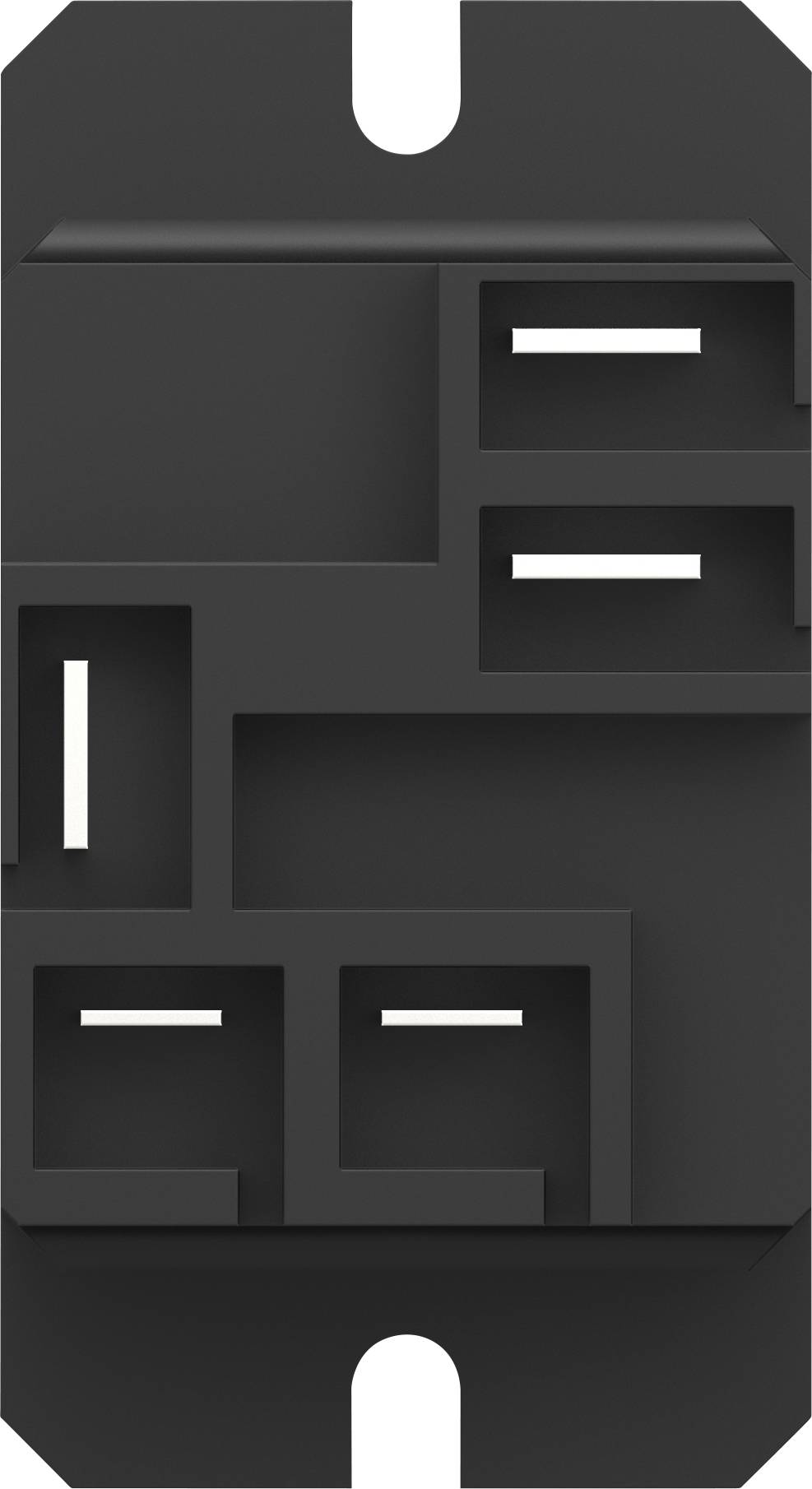

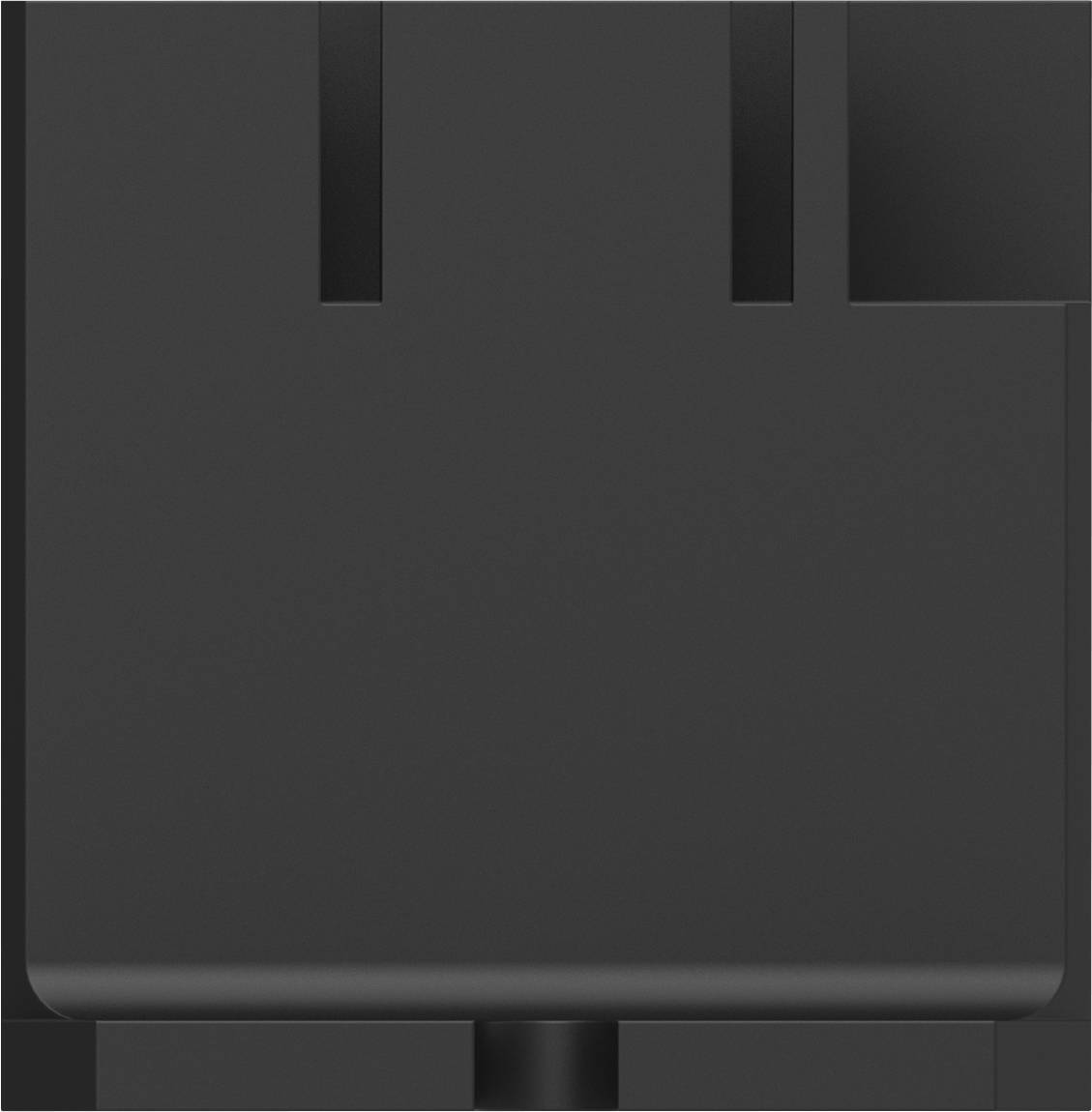

Buy TE Connectivity T9AP5D52-12 Industrial relay Nominal voltage: 12 V DC 1 change-over Piece 1 pc(s)

1/5

Packaging type

Piece

Product type

Industrial relay

Contact type

1 change-over

Nominal voltage

12 V DC

Type

T9AP5D52-12

Fast track dispatch on Fri, 2 Oct

10 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Piece(s)

Total (€ 6.71 / piece)

€ 6.71

plus VAT.

Only 10 Piece(s) available

14-day return policy included

Highlights & Details

Output Port: AC / AC
Type of Relay Mounting: Flange Mounting, PCB Mounting
Type of Relay Connection: PCB Connections
Output Rated Voltage (AC Relay) (Vrms): 0 – 240
Output Rated Current (A): 0 – 10, 0 – 20
Output Rated Current (Arms): 0 – 10, 0 – 20
Output Voltage (max.) (V) 240
output current (min.) (A): 1
Output switching: Random
sealing class: RTI
Housing type: Plastic dust cap
Insulation distance class (mm): 2.5 – 4
Insulation creep current class (mm): 5.5 – 8
Insulation probe functions: Original standing surge voltage of 6,000 V between contacts & coil
Contact cut-off current (A): 20
Contact coating material: AgCdO
Contact switch-in current (A): 20
Contact limit current (A):
20 contact duration current: 20 contact duration of the short-time system (A)
