A black electrical connector with two vertical slots mounted on a rectangular base.

A black electrical connector with two vertical slots mounted on a rectangular base.

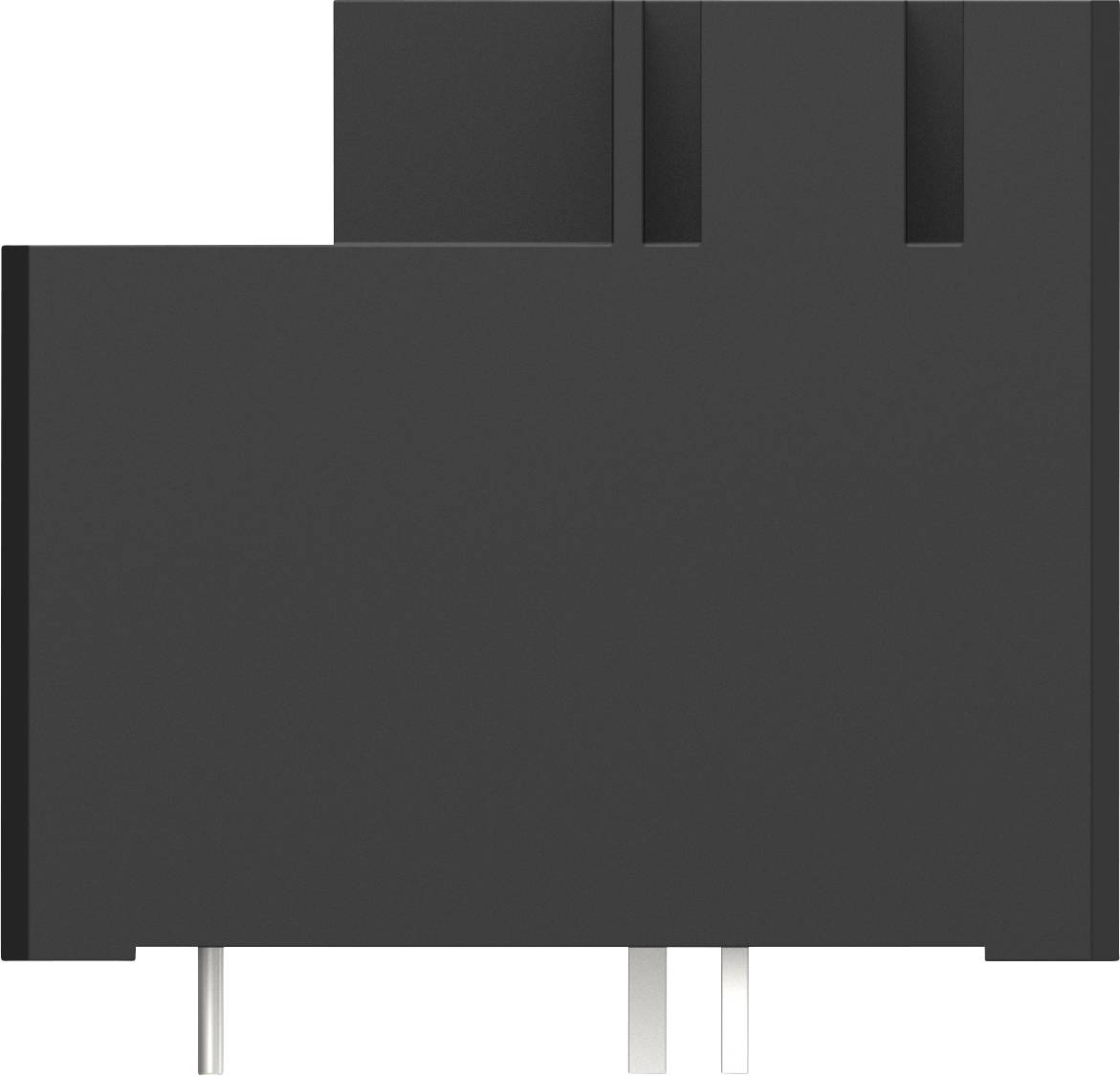

Black, rectangular electronic component with two metal pins at the bottom, likely for use in an electronic device.

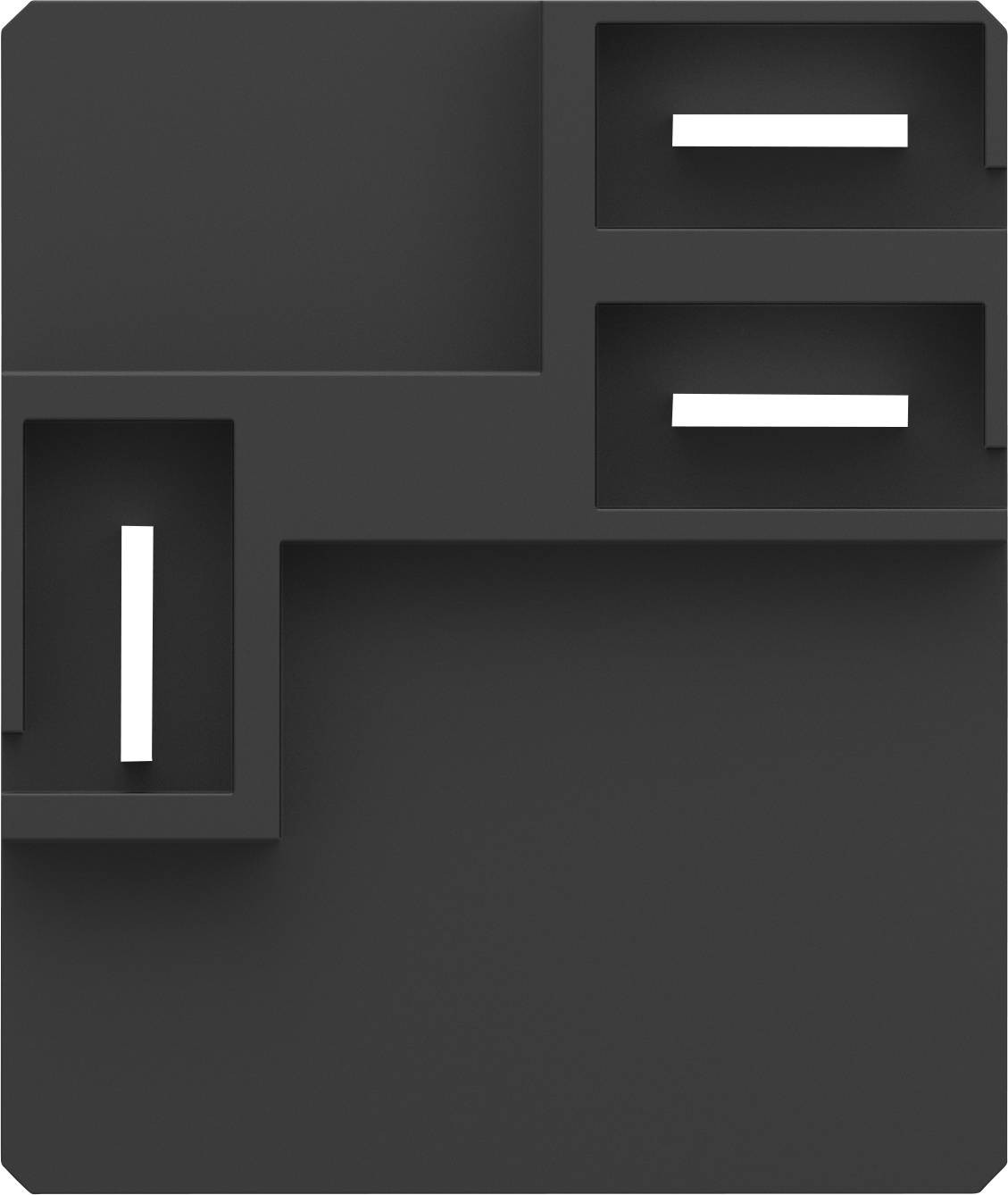

Black wall shelf with asymmetrical compartments and vertical white strips. Modern design, minimalist aesthetic.

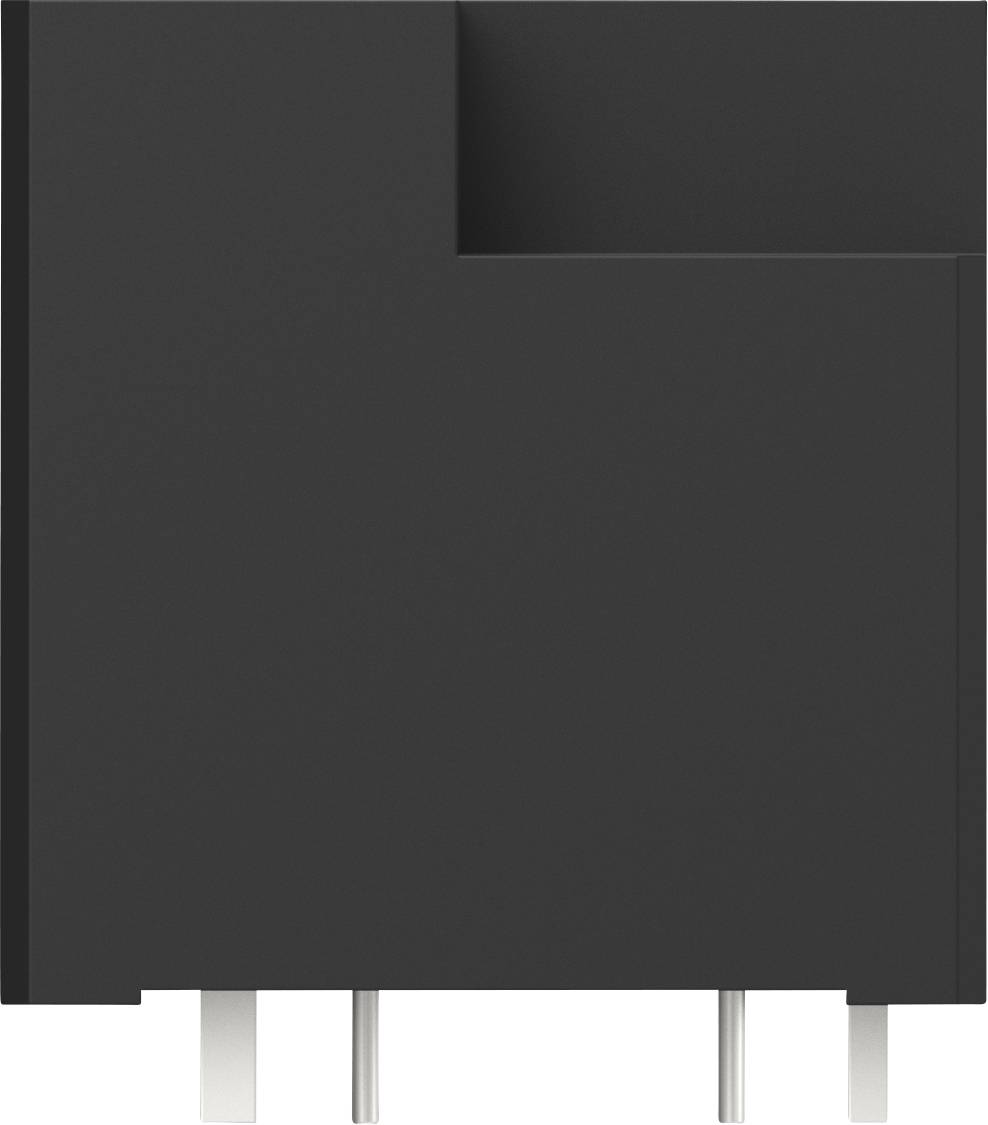

Black and grey rectangular object with metal pins along the bottom edge. The design features an L-shaped recess.

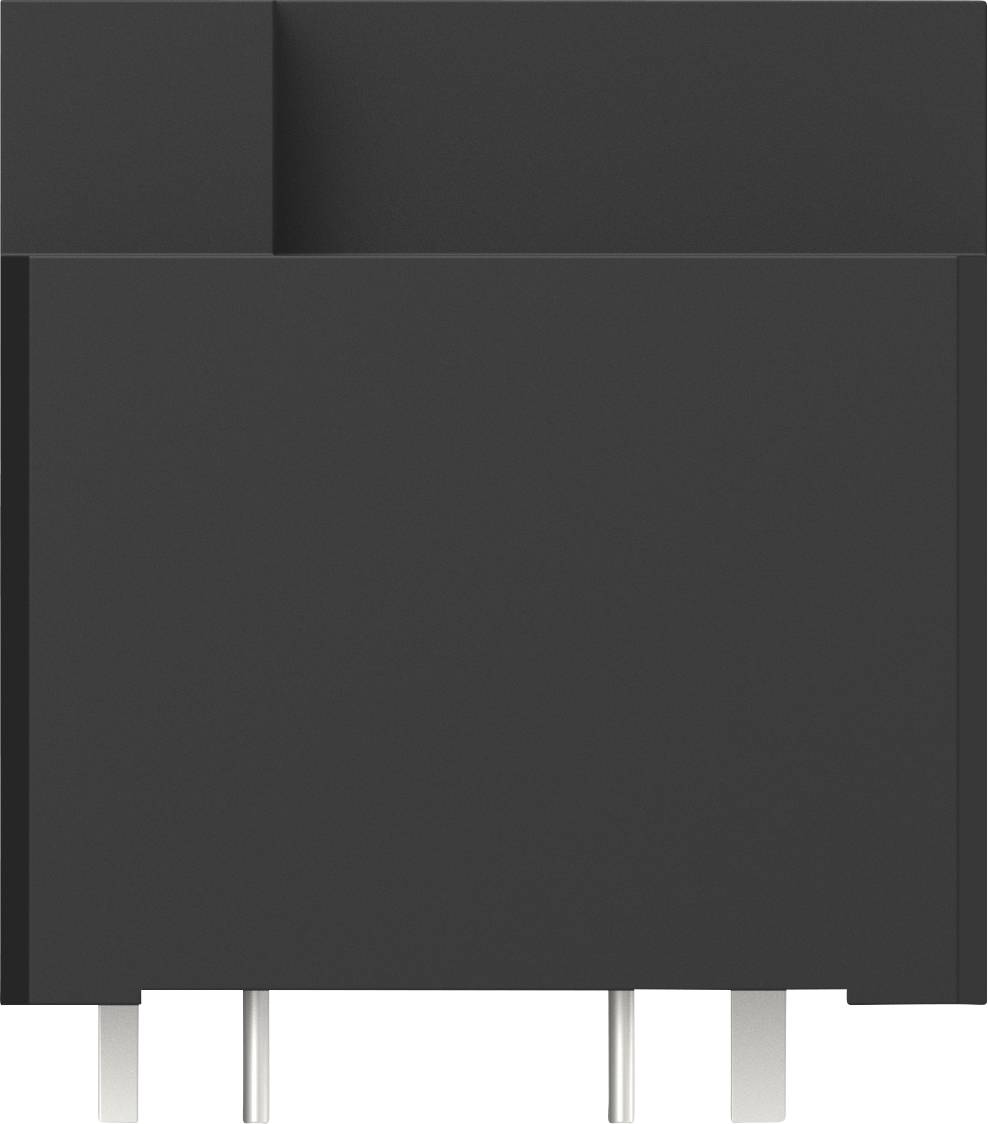

A black electric switch with three metal pins at the bottom.

1/5

Packaging type

Piece

Product type

Industrial relay

Contact type

1 maker

Nominal voltage

12 V DC

Switching voltage (max.)

240 V AC

TE Connectivity

Fast track dispatch on Mon, 5 Oct

32 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.87 / piece)

€ 5.87

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

TE Connectivity T9AS1D22-12 Industrial relay Nominal voltage: 12 V DC 1 maker Piece 1 pc(s)

Our service for you

Technical specifications

Output side connection: AC / AC
Type of relay mounting: PCB
Type of relay connection: PCB connections
Output nominal voltage (AC relay) (Vrms): 0 – 240
Output nominal current (A): 0 – 30
Output nominal current (Arms): 0 – 30
Output voltage (max.) (V) 240
output current (min.) (A): 1
Output switching: Random
sealing class: RTIII
Housing type: Sealed
Insulation distance class (mm): 2.5 – 4
Insulation creep current class (mm): 5.5 – 8
Insulation probe functions: Original standing surge voltage of 6,000 V between contacts & coil
Contact cut-off current (A): 30
Contact coating material: AgCdO
Contact switch-in current (A): 30
Contact limit current (A):
1

Packaging type: Piece

Product type: Industrial relay

Type: T9AS1D22-12

Connection: Print

Factory colour: Black

Contact type: 1 maker

Contact material: AgCdO

Nominal voltage: 12 V DC

Switching voltage (max.): 240 V AC

Creepage distance (coil/clips): 6.36 mm

Resistance (coil): 144 Ω

Coil voltage rating: 1000 mW

Features: Washable (RT III)

Max. temperature: +85 °C

Min. temperature: -55 °C

Length: 32.5 mm

Width: 27.4 mm

Height: 27.9 mm

Dim: (L x W x H) 32.5 x 27.4 x 27.9 mm

Content: 1 pc(s)

Weight: 33 g

RoHS-compliant: Yes
