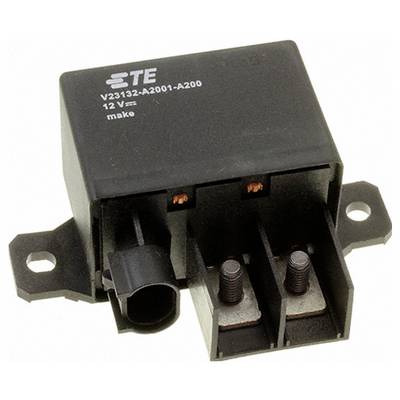

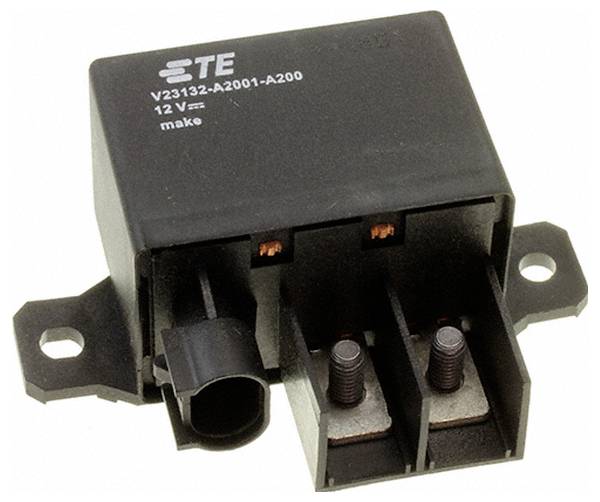

TE Connectivity V23132A2001A200 Automotive relay 12 V DC 180 A 1 maker
EAN:
Part number:
Item no:
Product type
Automotive relay
Coil nominal voltage
12 V DC
Contact type
1 maker
Connection
Screw terminal
Switching voltage (max.)
12 V DC
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Our service for you
Technical specifications
- Sealing class: RTI
- High power relay (>75 A): Yes
- Contact switching load (min.): 1000mA for 5VDC
- Magnet system: Monostable, DC
- Mounting brackets: With
- mounting type: Screw
- Rated current (85 °C) (A): 130 A
- Relay type: High current relay MCR 200
- Coil switching: Parallel switched resistor
- Nominal coil power (DC) (mW): 3900 mW
- Product type
Automotive relay
- Type
V23132A2001A200
- Features
+ resistor
- Coil nominal voltage
12 V DC
- Contact type
1 maker
- Contact material
AgSnO2
- Connection
Screw terminal
- Switching voltage (max.)
12 V DC
- Switching current (max.)
180 A
- NO switching current (max.)
180 A
- Resistance (coil)
37 Ω
- Max. temperature
125 °C
- Width
45 mm
- Height
40 mm
- Length
63 mm
- Dim
(L x W x H) 63 x 45 x 40 mm
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2272826 TE Connectivity V23132A2001A200 Automotive relay 12 V DC 180 A 1 maker
Description
Hints
Switch current information refers to peak current. Full details free to download from our comprehensive product documents library.
