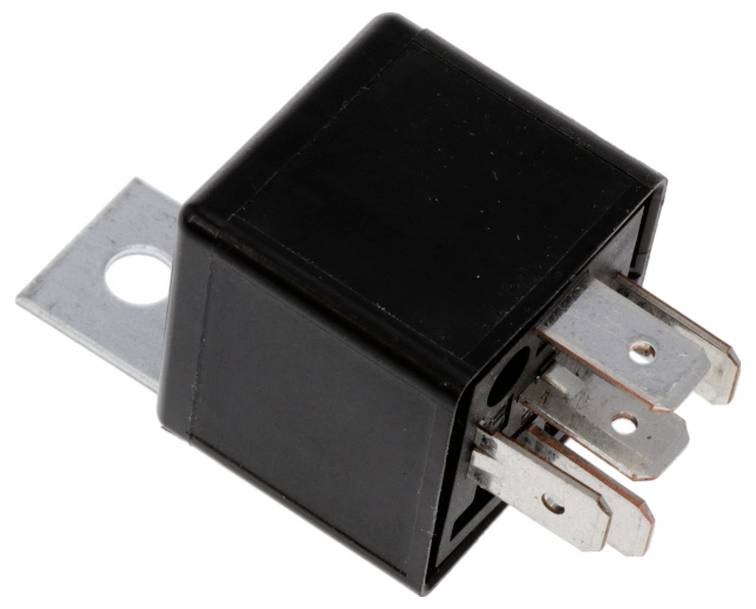

TE Connectivity V23134A1052C643-EV-CBOX Automotive relay 12 V DC 60 A 1 change-over
EAN:
Part number:
Item no:
Product type
Automotive relay
Coil nominal voltage
12 V DC
Contact type
1 change-over
Switching voltage (max.)
12 V DC
Switching current (max.)
60 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Sealing class: RTI
- contact limit short-time current (A): 240 A
- contact switching load (min.): 1000mA for 5VDC
- soldering process: Plug-in, quick connection
- magnet system: Monostable, DC
- mounting brackets: With
- mounting type: Plug-in
- nominal current (85 °C) (A): 60 A
- relay type: Load relay F4
- coil rated power (DC) (mW): 1600 mW
- Product type
Automotive relay
- Type
V23134A1052C643-EV-CBOX
- Coil nominal voltage
12 V DC
- Contact type
1 change-over
- Contact material
Ag-alloy
- Switching voltage (max.)
12 V DC
- Switching current (max.)
60 A
- Resistance (coil)
90 Ω
- Max. temperature
125 °C
- Width
25.9 mm
- Height
24.9 mm
- Length
25.9 mm
- Dim
(L x W x H) 25.9 x 25.9 x 24.9 mm
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2272815 TE Connectivity V23134A1052C643-EV-CBOX Automotive relay 12 V DC 60 A 1 change-over
Description
Hints
Switch current information refers to peak current. Full details free to download from our comprehensive product documents library.
