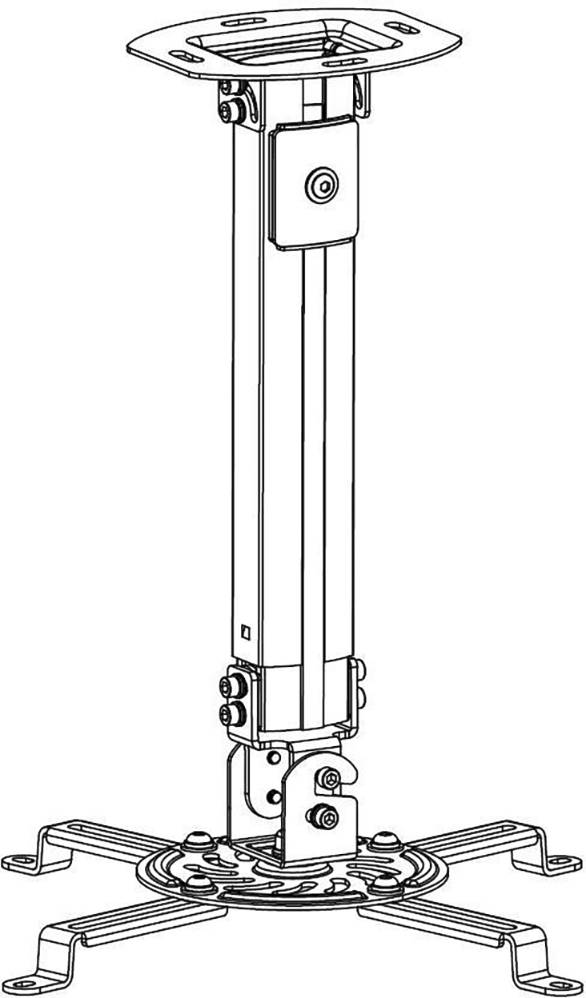

TECHly ICA-PM-18M projector ceiling bracket, extension 545-900 mm, silver

Highlights & Details

Ceiling projector with universal bracket
Suitable for both flat and inclined ceilings
Compatible with most projectors on the market
Maximum weight supported: 13.5 kg
With 4 adjustable support arms
Adjustable height
With cable management system

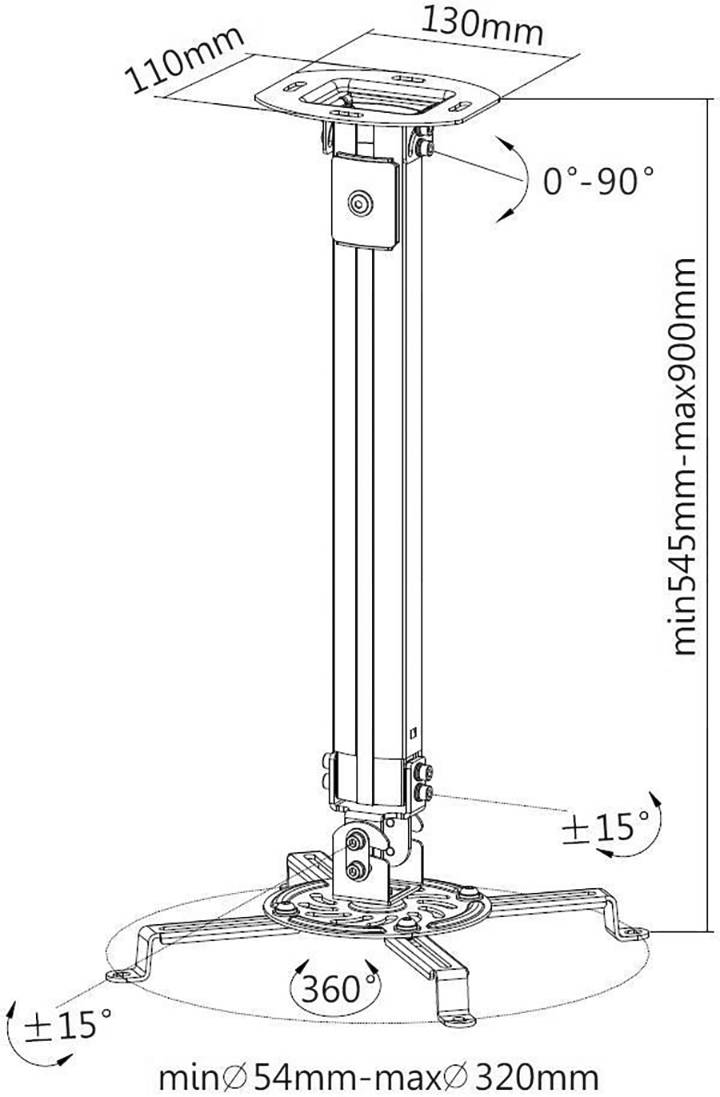

Technical specifications

Material: Steet and aluminium
Height 545-900 mm
Powder-coated
Rotation: 360°
Swiveling: +/-15°

Product type: Projector ceiling mount

Holder type: Tiltable
Swivelling
Swivelling

Rotatable: Yes

Tilt range (top): 15°

Tilt range (bottom): 15°

Max. distance to floor/ceiling: 900 mm

Min. distance to floor/ceiling: 545 mm

Max. load capacity: 13.5 kg

Factory colour: Silver

Width: 130 mm

Weight: 1.77 kg

Content: 1 pc(s)

Dim: (W x D) 130 mm x 85 mm

Depth: 85 mm

Product type description: Zubehör TFT/LCD-TV

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2309222 TECHly ICA-PM-18M Projector ceiling mount Tiltable, Swivelling, Swivelling Max. distance to floor/ceiling: 900 mm Silver

Description

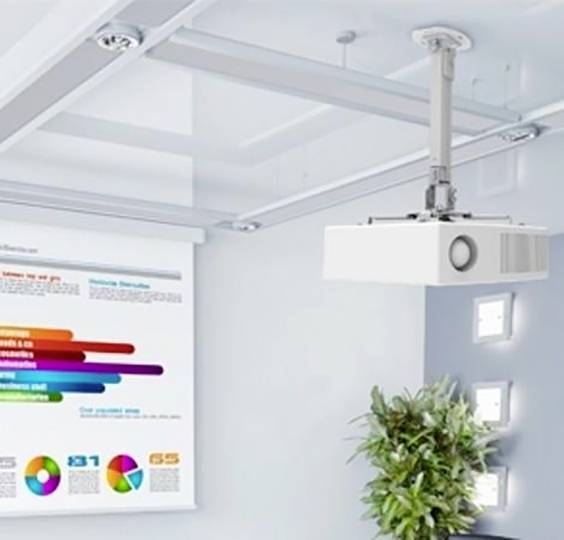

ICA PM-18M is a universal projector ceiling mount up to 13.5 kg. The inclination of the mounting plate adapts to inclined ceilings and floors. Provides multi-directional positioning with four adjustable support arms that can be adjusted to a variety of mounting holes. The cables required for installation are routed inside the central column and are therefore not visible. The QD allows quick installation of the projector and is easy to solve for maintenance. The extendable aluminum column enables the adaptation to different heights. This video projector mount is perfect for use in classrooms, meeting rooms, hotels, bars and restaurants and much more.
