TECHly IDATA-EX-HL21TY HDMI extender set 1920 x 1080 p Black
EAN:
Part number:
Item no:
Highlights & Details
TECHly IDATA-EX-HL21TY HDMI 1x2 Extender Splitter via CAT6/6a/7 50m with IR pass back, black
- Distribute 1 HDMI source over network cables to 2 HD screens at the same time
- Compatible with CAT6/6a/7 network cables
- The highest supported resolution is up to 1080p@60Hz
- Expand the HDMI signal via CAT6 cable to up to 50m/164ft
- Supports the IR-Passback for remote control source devices in an uncomplicated way
- Uncompressed and without latency
- Plug-and-Play
Technical specifications
- Product type
HDMI extender set
- Supported monitors
2
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
3 x
- Interfaces (output)
RJ45
Infrared
- Resolution (max.)
1920 x 1080 p
- Power supply (LOV)
via PSU
- Factory colour
Black
- Weight
0.740
- Width
157.8 mm
- Height
21.6 mm
- Depth
65 mm
- Dim
(W x H x D) 157.8 x 21.6 x 65 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2309223 TECHly IDATA-EX-HL21TY HDMI extender set 1920 x 1080 p Black
Description

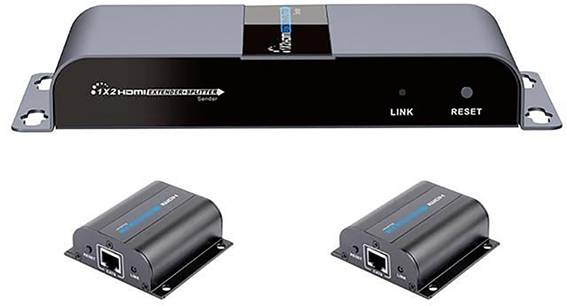

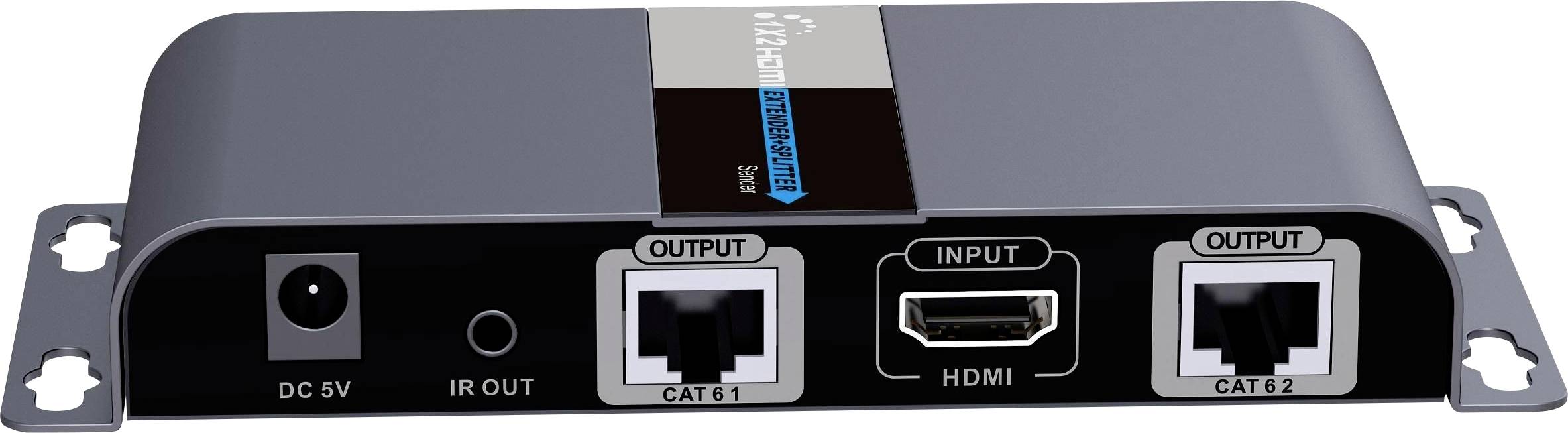

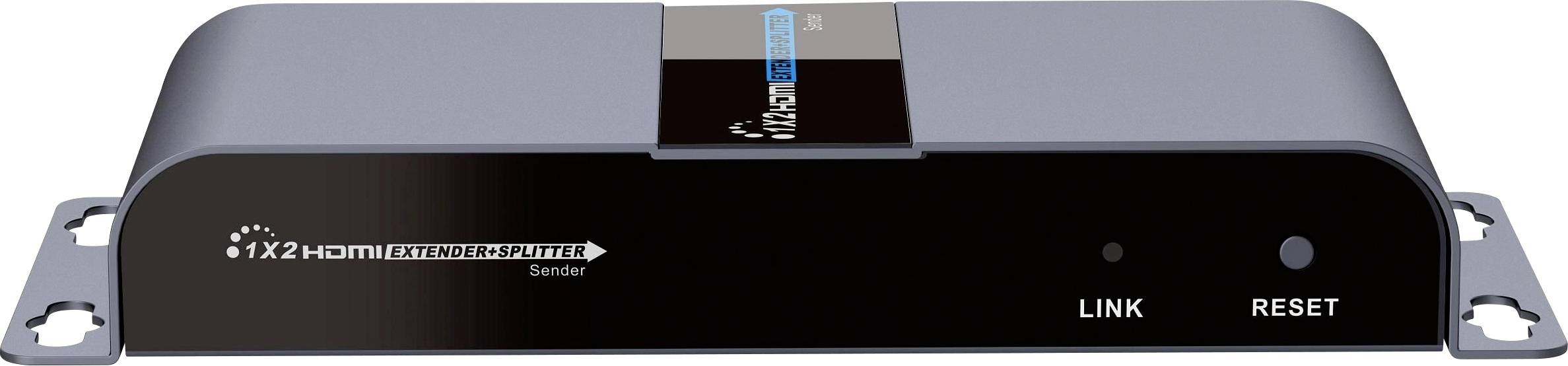

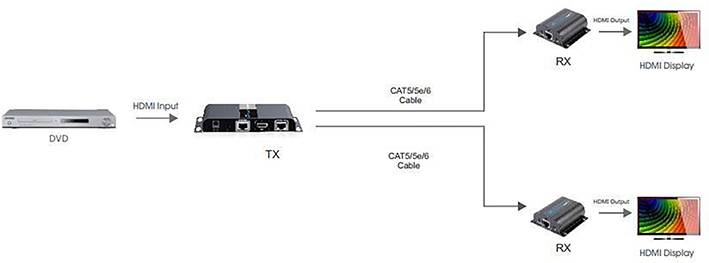

This HDMI extender splitter includes a transmitter and two receivers, extending 1 HDMI source to 2 HDMI displays via a single CAT6/6a/7 cable up to 50 m. The highest supported resolution is 1920x1080@60Hz and supports IR passback, EDID pass-through and only one power adapter is required for the transmitter, the receiver is supplied with power from the transmitter via CAT6 cable. Ideal solution for HDMI exhibitions, video conferences and exhibition centers, etc.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Transmitter unit
- 2x receiver unit
- Power supply DC5V/2A
- IR blaster extension cable
- 2x IR receiver extension cable
- User manual
