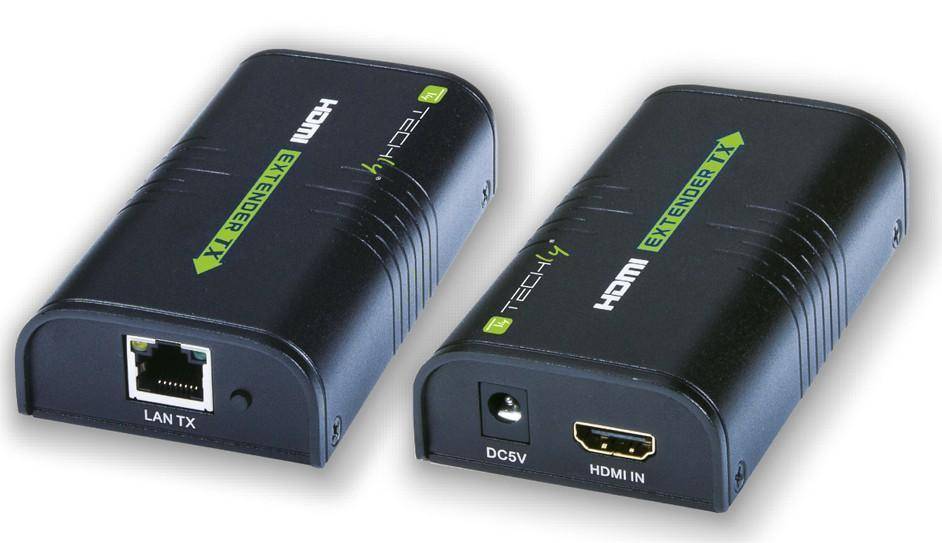

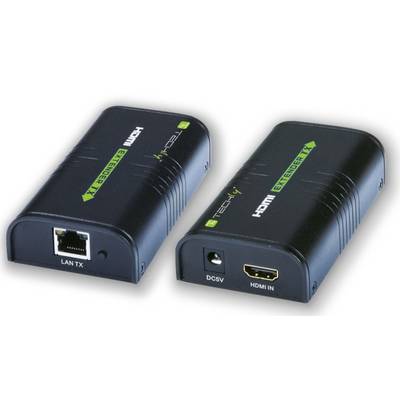

TECHly IDATA-EXTIP-373 HDMI™ Extension via RJ45 network cable 120 m
EAN:
Part number:
Item no:
TECHly IDATA-EXTIP-373 HDMI™ Extension via RJ45 network cable 120 m
Highlights & Details

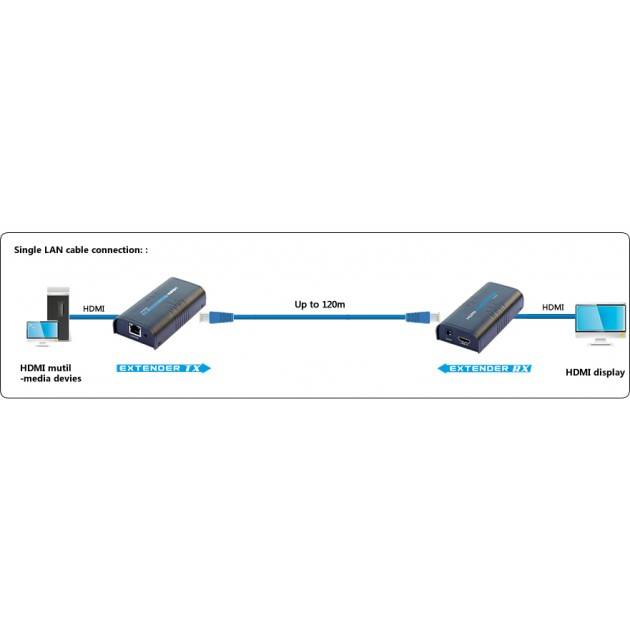

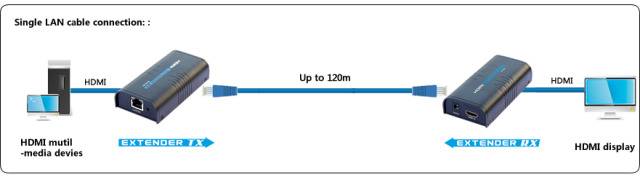

- • Extension of an HDMI connection by using a Cat.6 or higher-quality network cable up to 120 m.

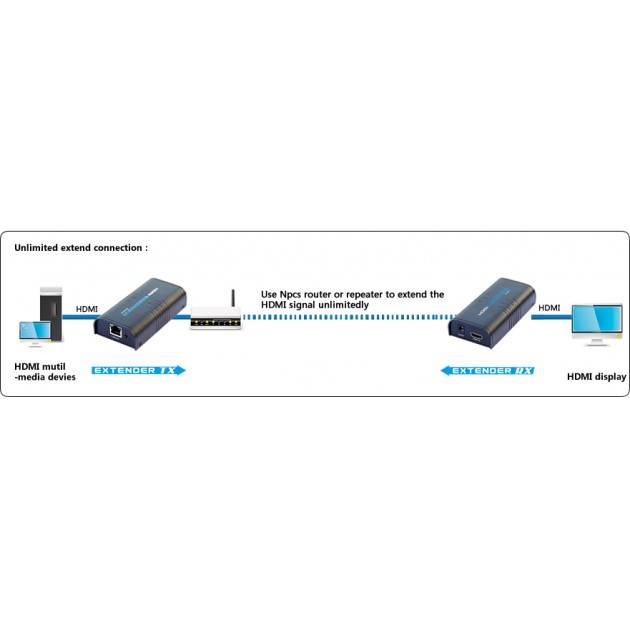

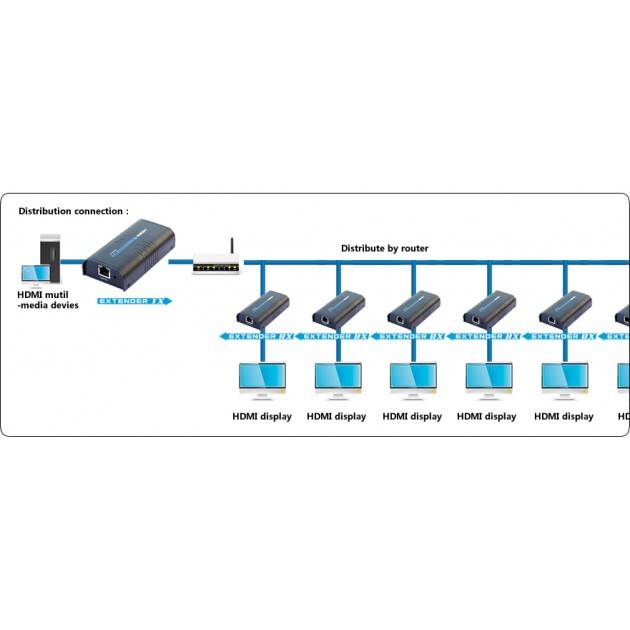

- • With the use of a switch, it is also possible to distribute the signal to several receivers with only one local unit.
Technical specifications
- Product type
Extension
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
1920 x 1080 p
- Range (max.)
120 m
- Factory colour
Multicolour
- Weight
0.511
- Width
70 mm
- Height
155 mm
- Dim
(W x H x D) 70 x 155 x 200 mm
- Version
Cable extension
- Type A
HDMI plug
- Type B
HDMI plug
- Depth
200 mm
- Cable use
Networks
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1783871 TECHly IDATA-EXTIP-373 HDMI™ Extension via RJ45 network cable 120 m
Description
Techly IDATA-EXTIP-373. Operating voltage 5 V, power consumption (typical) 3 W, power consumption 1 A. Receiver dimensions (W x D x H): 58 x 110 x 26 mm, receiver weight: 239 g, transmitter dimensions (W x D x H): 58 x 110 x 26 mm
This text is machine translated.
This text is machine translated.
Features
- • supports HDCP 1.2
- • Resolution HDMI input: 480i / 60Hz, 480p / 60Hz, 576i / 50Hz, 576p / 50Hz, 720p / 50/60Hz, 1080i / 50/60Hz, 1080p / 50/60Hz
- • Resolution HDMI output: 480p / 60Hz, 576p / 50Hz, 720p / 50/60Hz, 1080p / 50/60Hz
- • Color format Video support: 24Bit / 30bit deep color / deep color 36bit
- • supported audio format : DTS-HD / Dolby True-HD / LPCM 7.1 / DTS / Dolby-AC3 / DSD
- • Maximum transmission speed: 10.2Gbps
- • TMDS signal: 0.5-1.5Vp-p (TMDS)
- • DDC signal: 5Vp-p (TTL)
- • Input cable length: ≤5m (High Speed HDMI cable AWG26)
- • Output cable length: ≤ 5m (High Speed HDMI cable AWG26 )
- • Connector type: RJ45
- • Interface: Cat. 5e / 6
- • Transmission distance: Up to 120m with Cat. 6 cables (up to 100m with Cat. 5e)
- • WIRING STANDARD TIA / EIA 568 B
- • Power supply: DC5V
- • Power consumption<: 3.6W
- • Operating temperature 0-55℃
- • Storage temperature -20 - 70℃ (non-condensing)
- • Dimensions (WxDxH): 5.7 x 10.6 x 2.6 cm
