TECHly IDATA-HDMI2-RIP4KT HDMI™ Repeater 40 m
EAN:
Part number:
Item no:
Highlights & Details

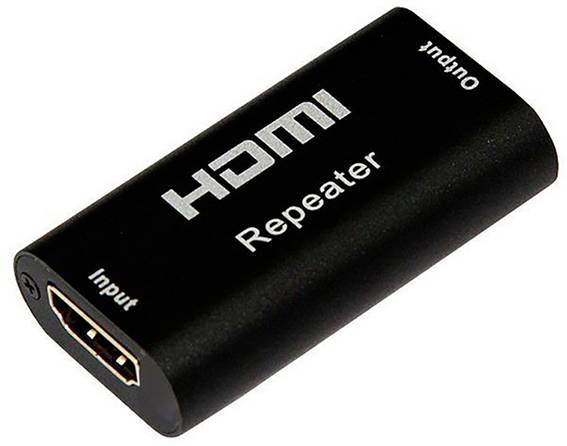

TECHly IDATA-HDMI2-RIP4KT HDMI™ Repeater 40 m
- Compatible with the HDMI 2.0 standard
- Supports 3D video and 4K2K at 60Hz/30Hz resolution
- Improvement of the quality of the output signal
- Extends the signal up to a maximum distance of 40 Meters
Technical specifications
- Supports HDMI 2.0
- Supports 3D, 4Kx2K @ 30Hz\60Hz
- Supports HDCP 2.2
- Frequency up to 340 MHz
- HDMI transmission speed: 3.4Gbps (single link)
- Input/output resolutions: HD: 480i@60Hz, 576i@50Hz, 480p@60Hz, 1080p@50Hz, 1080p@60Hz, 1080i@50Hz, 1080p@30Hz, 1080p@25Hz, 1080p@24Hz, 2160p@30Hz
- Transmission up to 25 m at 4Kx2K@60Hz resolution, 40 m at 1080p@60Hz
- HDMI AWG24 cable socket (input): Cable length: 1-15 m.
- HDMI AWG24 cable female (output): Cable length: 5-25 m.
- Product type
Repeater
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
3840 x 2160 p
- Range (max.)
40 m
- Factory colour
Black
- Weight
0.050
- Length
5.1 cm
- Width
2.8 cm
- Height
1.3 cm
- Dim
(L x W x H) 5.1 x 2.8 x 1.3 cm
- No. of outputs
1 x
- No. of inputs
1 x
- Cable length
40 m
- Version
Cable
- Type A
HDMI plug
- Type B
HDMI plug
- Depth
55 mm
- Cable use
TV/monitor
- Connection type
HDMI
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2309264 TECHly IDATA-HDMI2-RIP4KT HDMI™ Repeater 40 m
Description

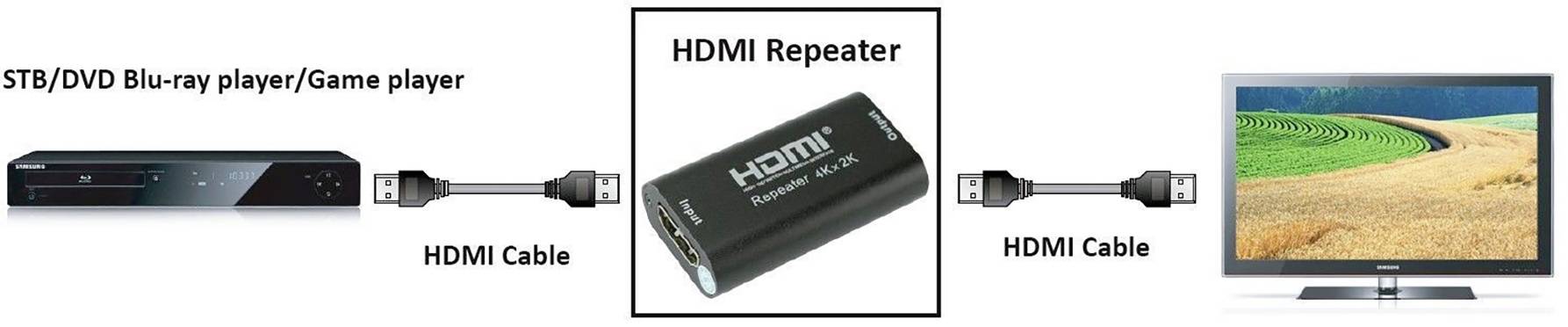

THE IDATA HDMI2-RIP4KT repeater regenerates the incoming HDMI signal by decoding it and reencoding it into a new HDMI signal. In this way, it enables the extension of the transmission distance of the signal without impairment. It can extend the transmission distance to up to 40 meters.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x 4K-HDMI repeater YUV 04:04:04
