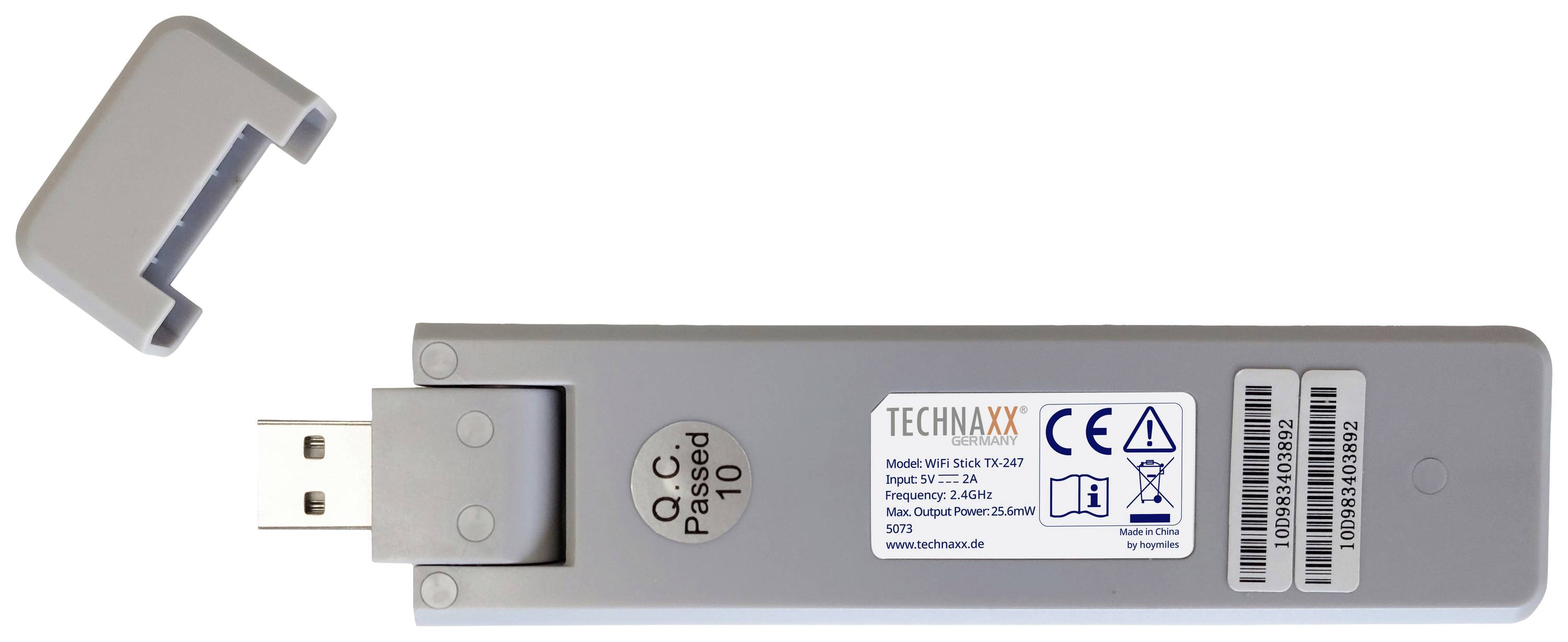

USB deployment device 'TECHNAXX' with cover removed. Label contains product information and CE marking.

Back of a Technaxx Wi-Fi dongle with label. Shows model number TX-207, input power 12V-2A, frequency 5.8 GHz, CE and RoHS symbols.

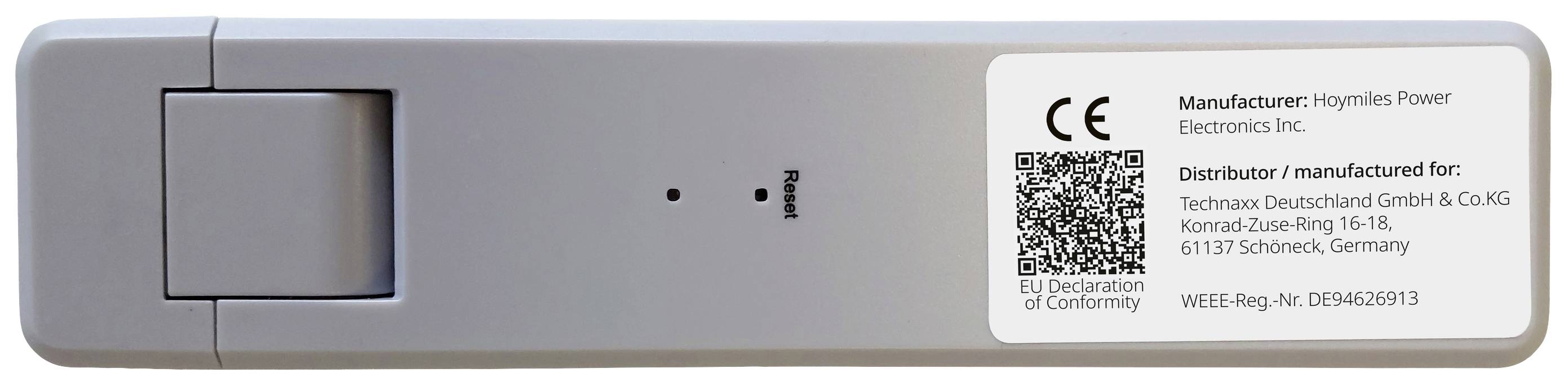

A white device with a label shows that it is manufactured by 'Hoymiles Power Electronics Inc.' and distributed by 'Technaxx Deutschland GmbH & Co.KG'.

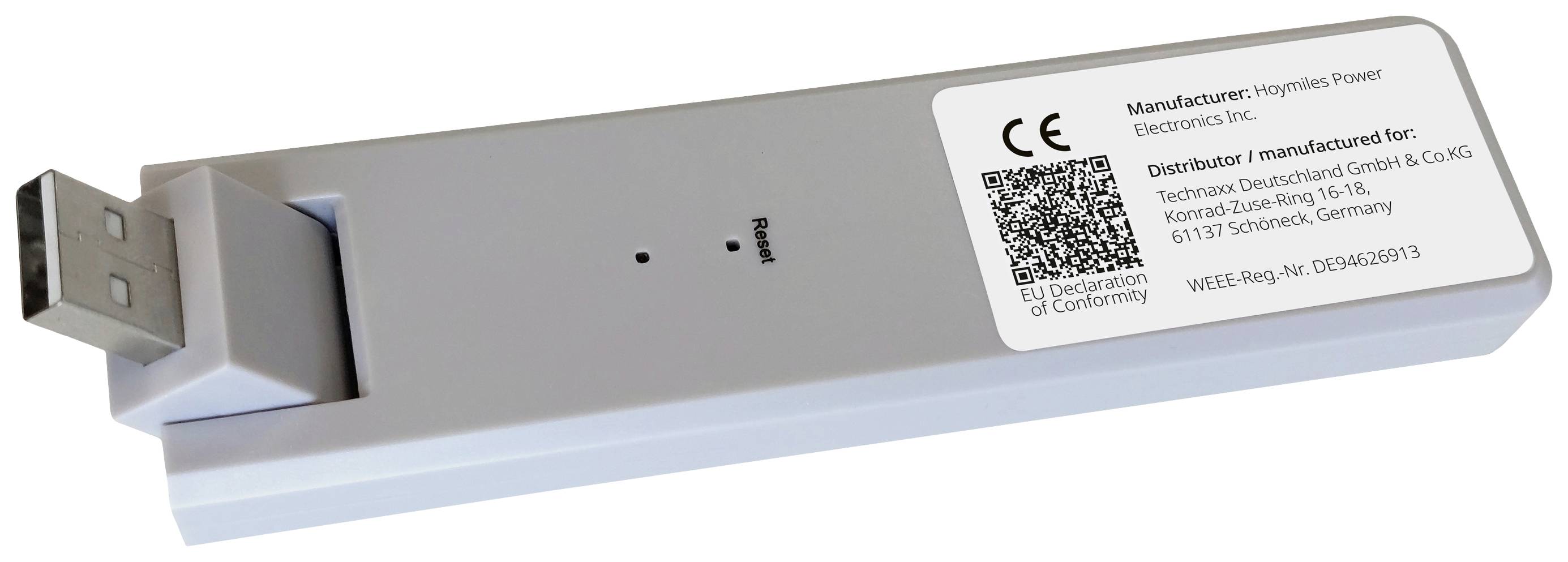

USB charging adapter by 'Hoplite Power Electronics Inc.', with CE marking and manufacturer information on the label.

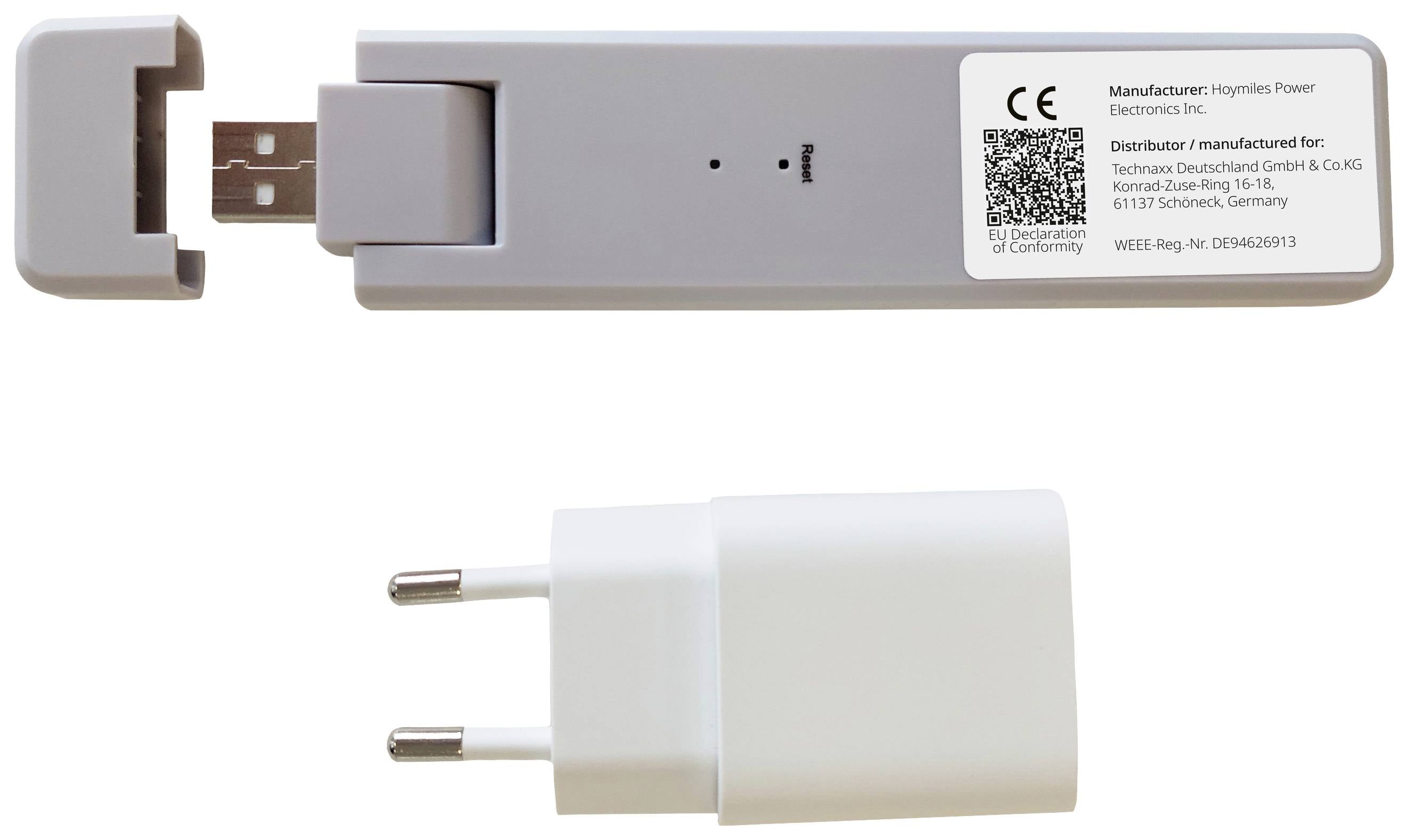

'USB stick and plug adapter: manufacturer details and CE marking visible. EAN code on the stick.'

Packaging for a TECHNAXX WiFi Stick TX-247. Labelled with functions such as data logging for solar installations and app compatibility.

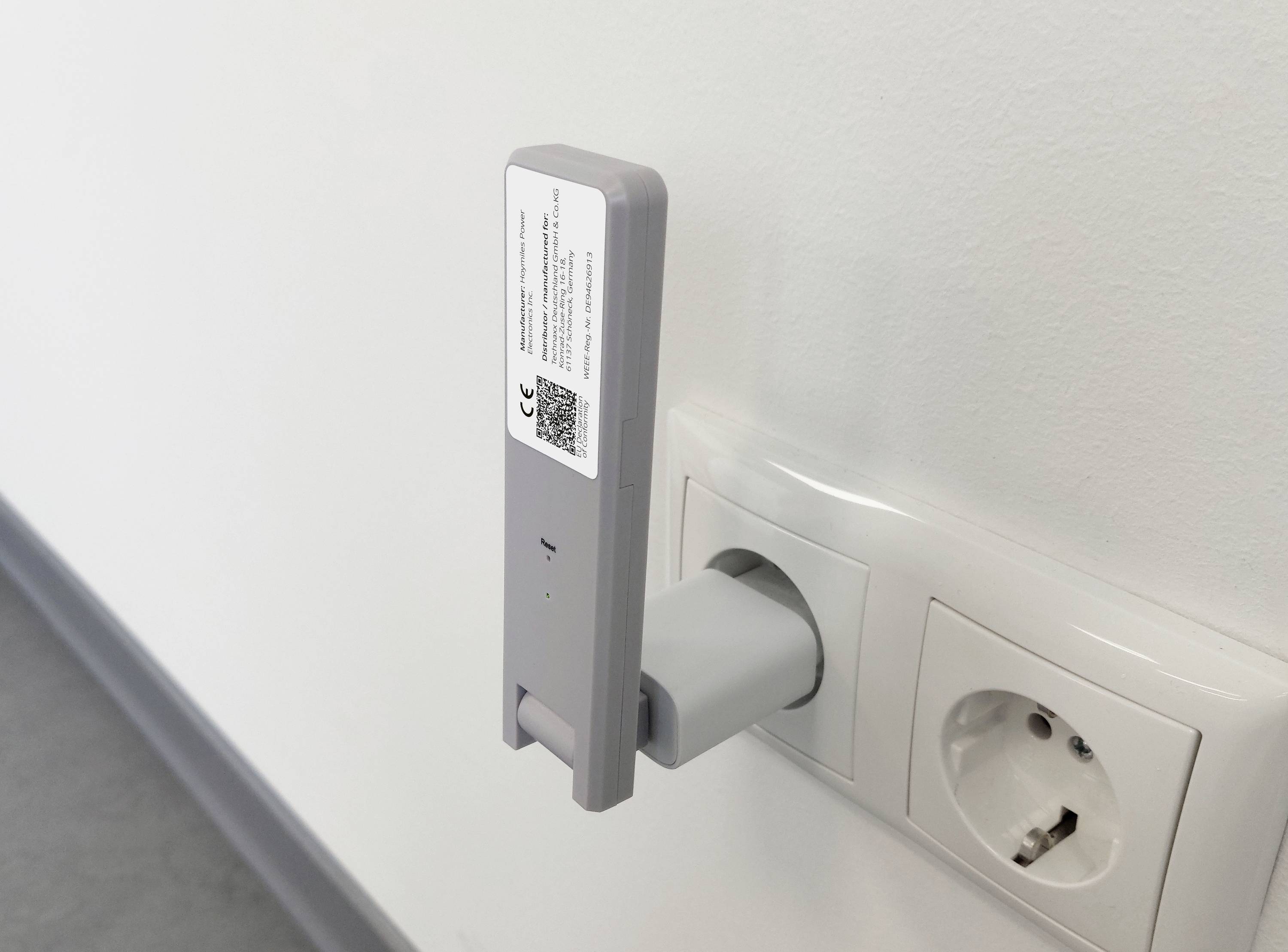

A grey device is plugged into a wall socket. It has a QR code and text on its side. Next to it is an empty socket.

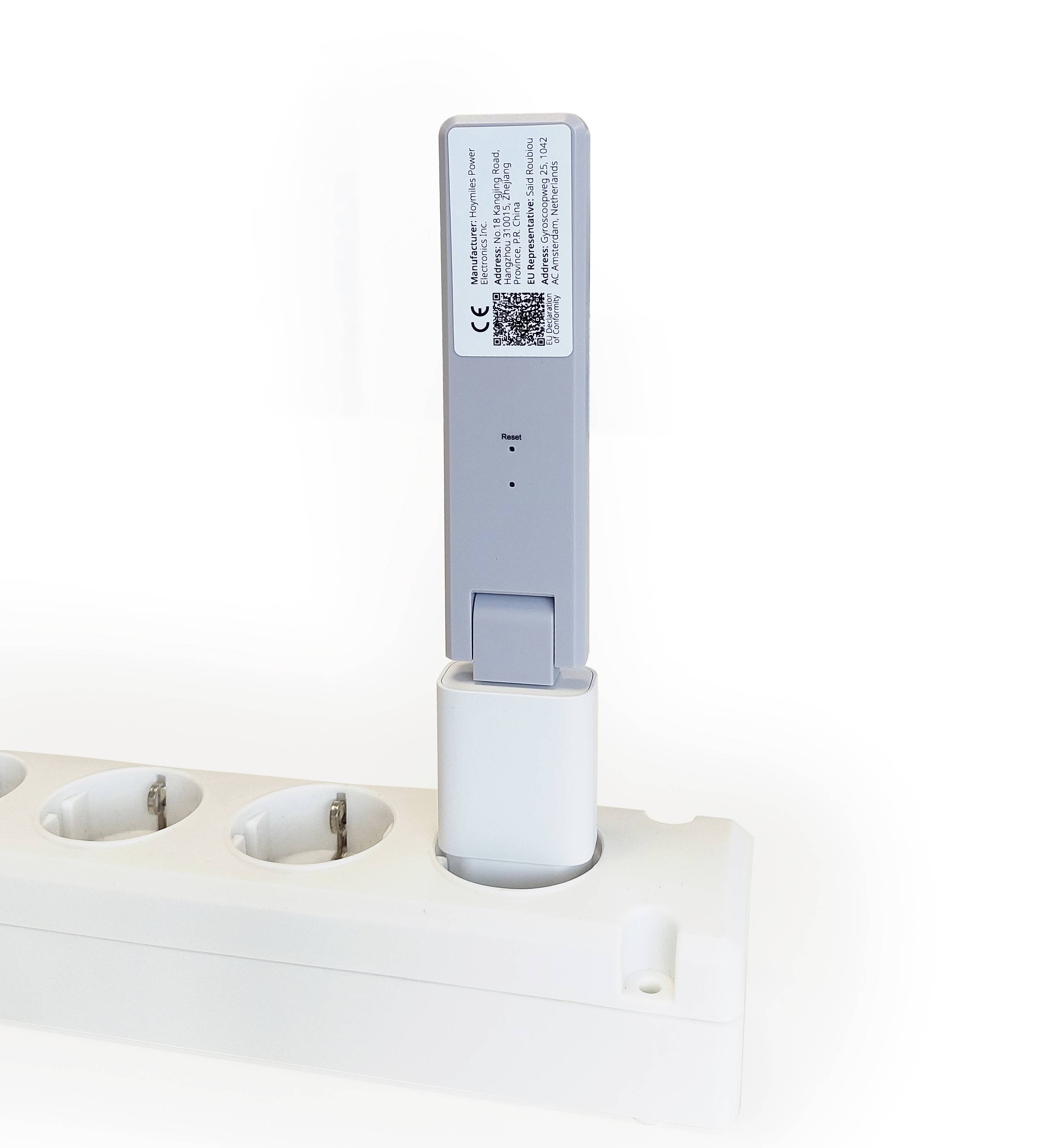

A grey device is plugged into a white power strip. A label with small text and a QR code is located on the device.

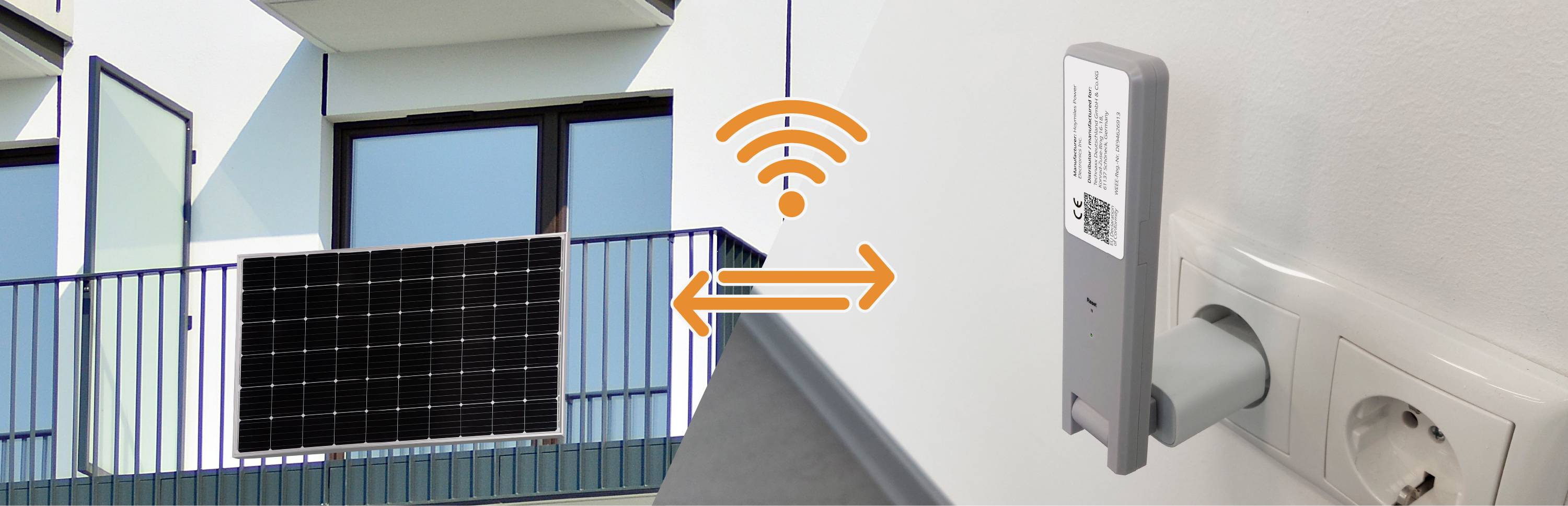

A solar panel on a balcony is connected to a Wi-Fi and socket device, symbolised by an orange Wi-Fi symbol.

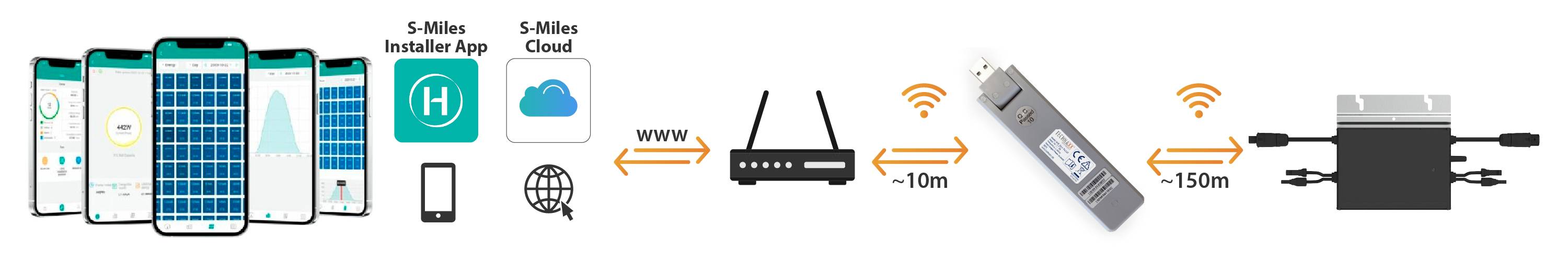

The '5-Miles Installer App' connects to a router via the internet. This router communicates wirelessly with a device that ultimately controls another system approximately 150 metres away.

1/10

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 45.37 / piece)

€ 45.37

plus VAT.

Only 1 Piece(s) available

Report legal concerns

Technaxx TX-247 WiFi stick

Highlights & Details

Data acquisition for power generation
Easy installation with Plug and Play
Limiting of the micro-inverter
Maximum distance up to 150 m.

Technical specifications

Compatible with (details): TX-212, TX-220, TX-228, TX-241, TX-203, TX-204 and TX-242

Product type: USB stick for setup

Dim: (Ø x H) 1.25 cm x 3.30 cm

Weight: 430 g

Factory colour: Grey

Content: 1 pc(s)

Width: 14.30 cm

Height: 3.30 cm

(Ø): 1.25 cm

System voltage: 230 V

Documents & Downloads

Datasheet

Datasheet 2898221 Technaxx 5073 TX-247 USB stick for setup

User & Safety Instructions

User & Safety Instructions 2898221 Technaxx 5073 TX-247 USB stick for setup

Warranty Terms

Warranty Terms 2898221 Technaxx 5073 TX-247 USB stick for setup

Description

Data acquisition for balcony power stations with Hoymiles inverters of the HM and MI series. Remote system management via the S-Miles cloud: Access via APP (Android + Apple) and web browser

This text is machine translated.

Features

Data collection for power generation (15 minute interval)
Easy installation with Plug and Play
Reduction of the micro-inverter (800W-->600W)
Maximum distance (open terrain and depending on installation environment): Up to 150 m.
TX-212, TX-220, TX-228, TX-241, TX-203, TX-204 and TX-242
Communication to the micro-inverter
Communication method: 2.4 GHz RF proprietary (Nordic)
Frequency range 2.403 - 2.475 GHz
Max. Transmitted power output -2.72 dBm/0.53 mW
Maximum distance (open area): 150 m.
Communication to the cloud (S-Miles)
WLAN communication standard Wi-Fi (802.11b/g/n)
Frequency range 2.412 - 2.472 GHz
Max. Transmitted power output 13.99 dBm/25.6 mW
Maximum distance (open area): 10 m.
Data upload: Every 15 minutes
Power supply unit (adapter)
Adapter input voltage/frequency 100 to 240 VAC, 50 or 60 Hz
Adapter output voltage/current 5 V/2 A
Power consumption: 1 W (typical), 5 W (maximum)
Mechanical properties:
Ambient temperature range (°C): -20 to +55

Scope of delivery

WLAN-Stick TX-247, 1x USB-power supply, instructions for use (short)

System requirements

TX-212, TX-220, TX-228, TX-241, TX-203, TX-204 and TX-242
APP: IOS 13.0 or higher
Android 10.0 or higher / EN, DE, FR, ES, NL, PL, PO, IT, CZ (05-2023)
