Tektronix 2260B-30-108 Bench PSU (adjustable voltage) 0 - 30 0 - 108 A 1080 W USB , LAN programmable No. of outputs 1 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3,923.53 / piece)
€ 3,923.53
plus VAT.
Highlights & Details
Programmable DC power supply, 30V, 108A, 1080W
- No. of outputs 1 x
- 0 - 30 / 0 - 108 A
- 1080 W
- USB , LAN
- programmable
Technical specifications
- Type
2260B-30-108
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
1080 W
- Interfaces
USB
LAN
- Features
programmable
- Dim
(L x W x H) 350 x 214 x 124 mm
Manufacturer's standards (no certificate)
- Weight
7.5 kg
- Output voltage (max.)
30 V AC
- Output voltage (min.)
0 V AC
- Max. output current
108 A
- Output current (min.)
0 A
- Width
214 mm
- Height
124 mm
- Length
350 mm
Documents & Downloads
Datasheet
Datasheet 3190750 Tektronix 2260B-30-108 Bench PSU (adjustable voltage) 0 - 30 0 - 108 A 1080 W USB , LAN programmable No. of outputs 1 x
User & Safety Instructions
User & Safety Instructions 3190750 Tektronix 2260B-30-108 Bench PSU (adjustable voltage) 0 - 30 0 - 108 A 1080 W USB , LAN programmable No. of outputs 1 x
Description

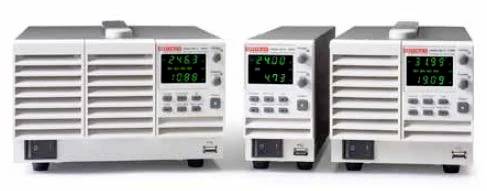

You can create a wide range of voltages and currents with 2260B programmable 360 W, 720 W or 1080 W DC power supplies. Choose from 12 versions with output voltages of 30 V, 80 V, 250 V or 800 V. The 360-W versions can output a current of 36 A, 13.5 A, 4.5 A or 1.44 A; the 720-W models can output 72 A, 27 A, 9 A or 2.88 A; and the 1080 W devices can 108 A, 40. Output 5 A, 13.5 A, or 4.32 A. With this wide range of output voltages and currents and a wide range of interface choices, the 2260B Ideal series is suitable for a wide range of applications, including research and development, quality control and production testing.
