Tektronix AFG31102 Mains-powered 0.000001 Hz - 100 MHz 2-channel
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 8,306.72 / piece)
€ 8,306.72
plus VAT.
Technical specifications
- Sampling rate 250 MSa/s
- 14-bit vertical amplitude resolution
- Frequency stability: ±1 ppm, 0 to 50 °C.
- Frequency range
0.000001 Hz - 100 MHz
- Frequency range (sine)
1 μHz - 100 MHz
- Max. frequency
100 MHz
Manufacturer's standards (no certificate)
- No. of channels
2-channel
- Display
Digital
- Interfaces
GPIB
LAN
USB
- Voltage supply
Mains
- Type
AFG31102
- Min. frequency
0.000001 Hz
- Product type
Mains-powered
Documents & Downloads
Datasheet
Datasheet 3061918 Tektronix AFG31102 Mains-powered 0.000001 Hz - 100 MHz 2-channel
User & Safety Instructions
User & Safety Instructions 3061918 Tektronix AFG31102 Mains-powered 0.000001 Hz - 100 MHz 2-channel
Description

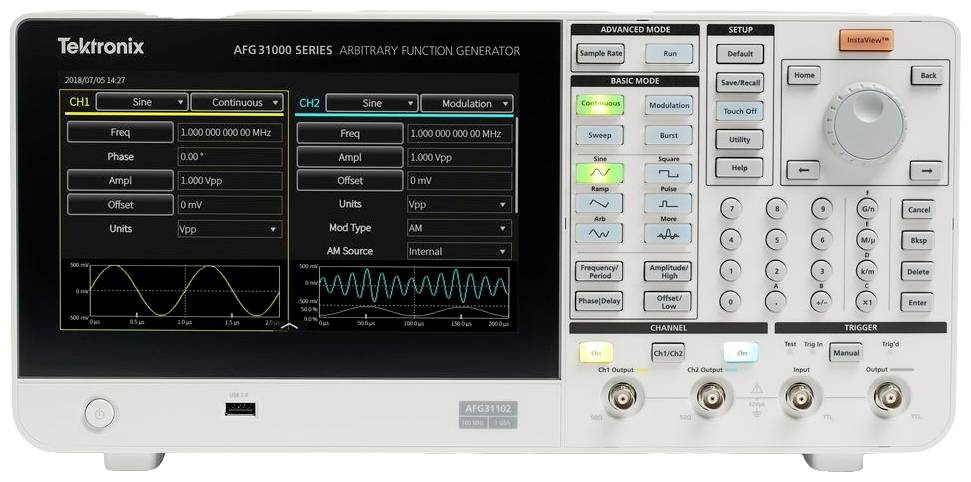

The Tektronix AFG31000 series is a high-performance AFG with integrated arbitrary signal generation, real-time waveform monitoring and the largest touchscreen on the market. The new AFG31000 offers advanced waveform generation and programming features, waveform checking, and a modern touch screen interface that makes it easy for any researcher and engineer to work.
