Tektronix DMM7512 Transistor tester Digital Data logger
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 9,410.92 / piece)
€ 9,410.92
plus VAT.
14-day return policy included
Technical specifications
- Product type
Transistor tester
- Amperage reading range DC (min.)
1 pA
- Temperature
-200 to 1820 °C
- Interfaces
USB
LAN
- Height
44 mm
- Width
483 mm
- Length
696 mm
- Weight
11.3 kg
Manufacturer's standards (no certificate)
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
DMM7512
- Display
Digital
- Dim
(L x W x H) 696 x 483 x 44 mm
- Features
Data logger
- Interfaces
USB device
USB host
RJ45 socket
Documents & Downloads
Datasheet
Datasheet 1880094 Tektronix DMM7512 Transistor tester Digital Data logger
User & Safety Instructions
User & Safety Instructions 1880094 Tektronix DMM7512 Transistor tester Digital Data logger
Information
Information 1880094 Tektronix DMM7512 Transistor tester Digital Data logger
Description

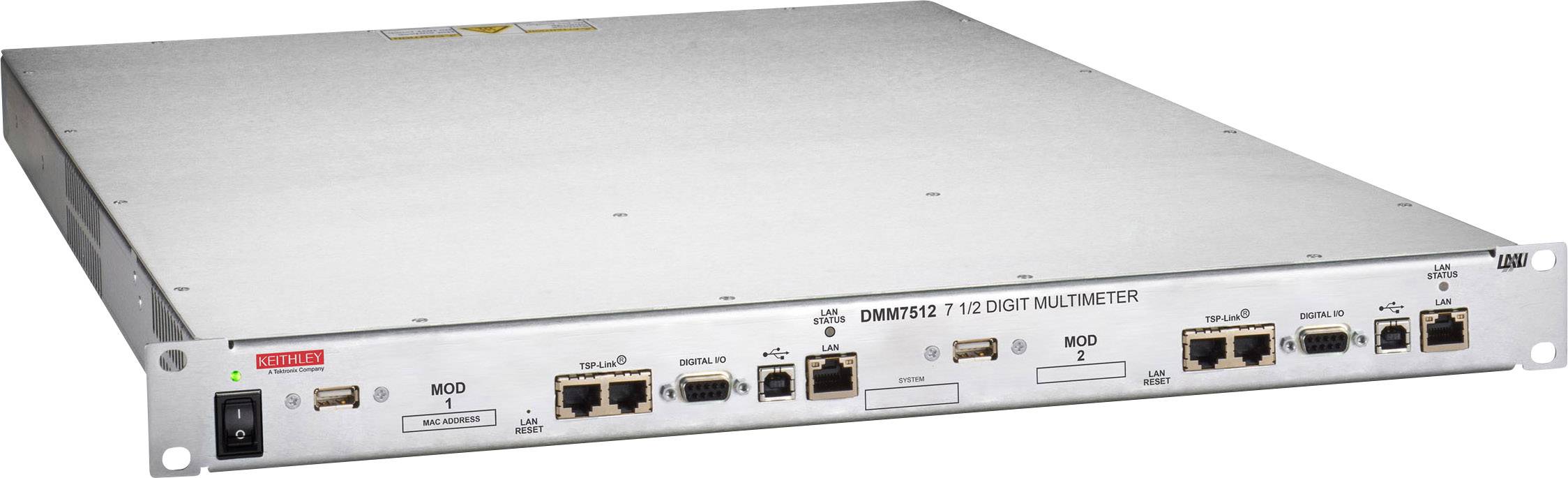

The DMM 7512 Dual Channel 7½-digit multimeter combines two fully functional, high-precision DMMs with high scanning speed in a compact 1U form factor. Each DMM has the same functionality and both are completely independent of each other. The DMMs have a wide range of features, including voltage digitization, current digitization and temperature measurements with resistance temperature sensor (RTDs), thermistors and thermocouples.
This text is machine translated.
This text is machine translated.
Features
- The auto-calibration improves the accuracy and stability through the minimization of temperature and time drift
- USBTMC and LAN LXI compliant interfaces
- Close synchronisation between the two DMMs with the help of TSP-Link® communication.
Scope of delivery
- 4 x test lead set
- 2x LAN cable, 40 cm
- 1 x shielded crossover cables with RJ-45 plug, 1.5 m
- 1x green and yellow earthing cable, 3.0 m
- 1U Rack Mount Kit
- Safety data sheet
- Information sheet
- User manual.
