Teledyne LeCroy HDO4024A Digital 200 MHz 10 GS/s 12.5 MP 12 Bit 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 18,147.06 / piece)
€ 18,147.06
plus VAT.
Highlights & Details

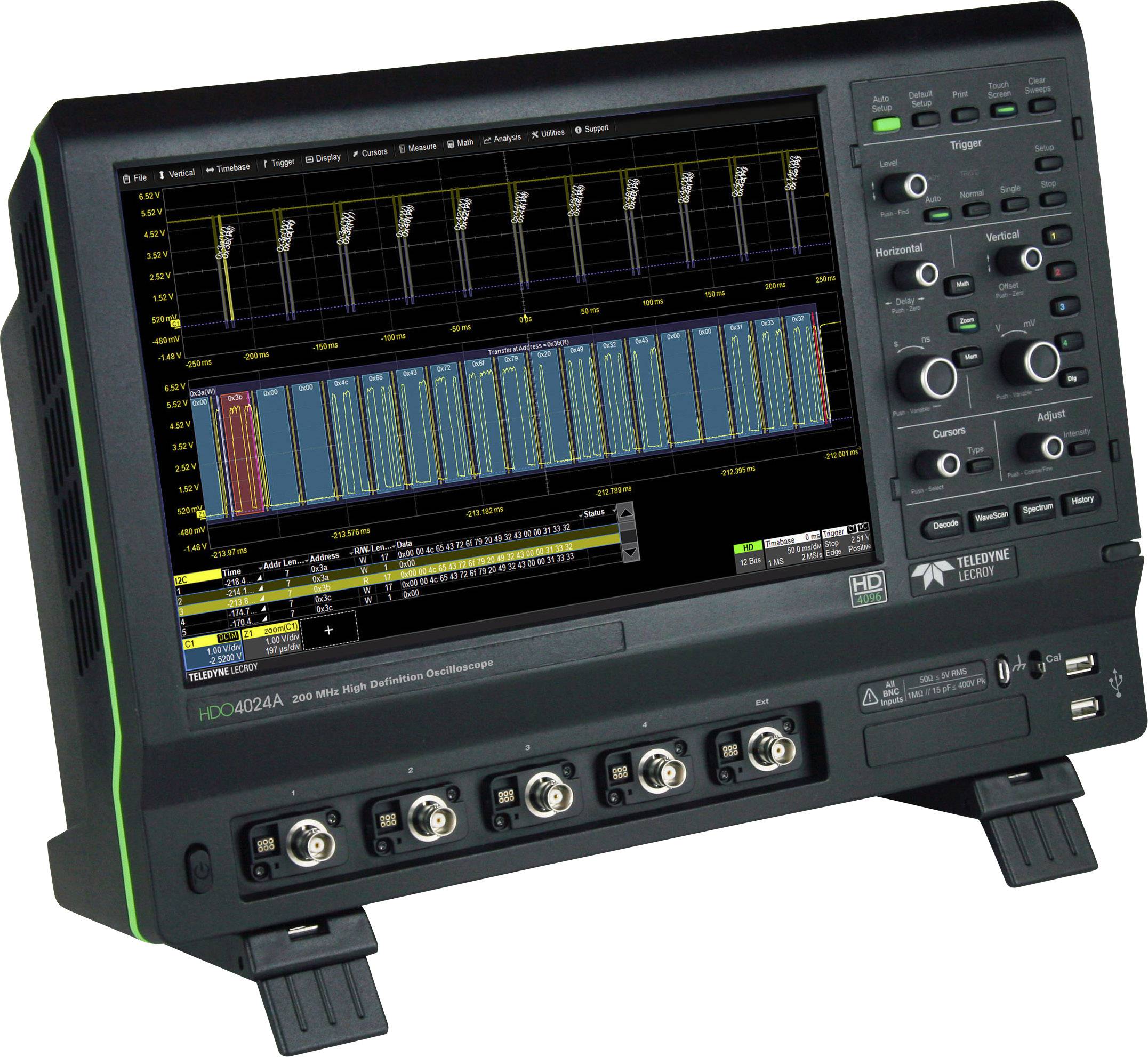

Teledyne LeCroy oscilloscope HDO4024A
- 200 MHz
- No. of analogue inputs 4
Technical specifications
- Product type
Digital
- Bandwidth
200 MHz
- Channel sample rate
10 GS/s
- Displays
Colour TFT touchscreen
- Resolution
12 Bit
- Screen size
30.73 cm
- No. of analogue inputs
4
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Input impedance
50 Ω ± 2.0%;1 MΩ ± 2.0% 16 pF
- Input coupling
50 Ω: DC, GND; 1 MΩ: AC, DC, GND
- Dim
(L x W x H) 131.31 x 399.4 x 291.7 mm
- Weight
5.86 kg
- Display
1280 x 800
- Width
399.4 mm
- Height
291.7 mm
- Length
131.31 mm
- Interfaces
Ethernet
GPIB
USB device
USB host
- Channel memory depth
12.5 MP
- Type
HDO4024A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1845801 Teledyne LeCroy HDO4024A Digital 200 MHz 10 GS/s 12.5 MP 12 Bit 1 pc(s)
Description
The oscilloscopes HDO4000 A feature 4 analog input channels, 12-bit resolution using the from teledyne LeCroy developed HD 4096 High Definition technology, up to 1 GHz bandwidth and a compact form factor with a large 12.1" multi-touch display. They are ideal for troubleshooting in power electronics, digital power management or Power integrity analysis, automotive electronics systems and for deep embedded or mechatronic design.
This text is machine translated.
This text is machine translated.
Features
- Multi-language user interface
- Wave scan search and find
- LabNotebook documentation and report generation
- Spectrum Analyzer mode
- Performance analysis software
- Serial trigger and decoding options
