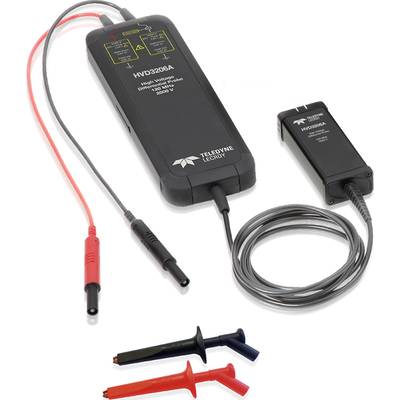

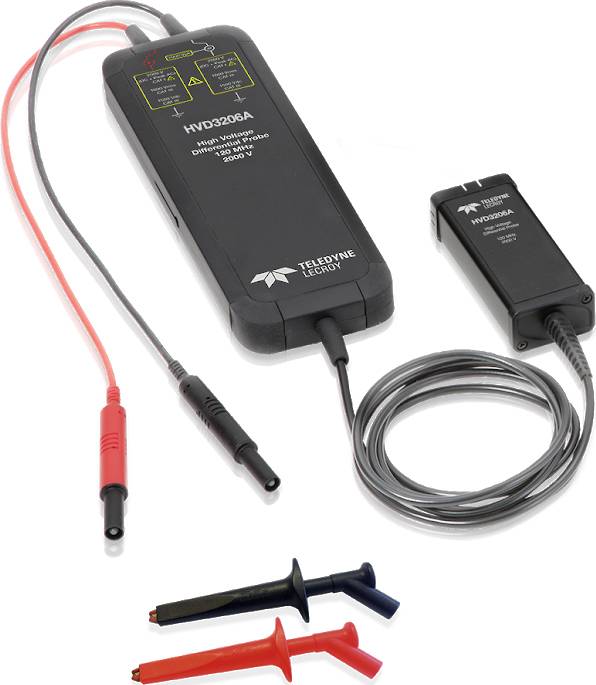

Teledyne LeCroy HVD3206A HVD3206A Probe 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 3,864.71 / piece)
€
Highlights & Details
Differential probe HVD3206A
- 1%, Accuracy:
- High offset capability at high and low attenuation
- AC and DC coupling
- ProBus active probe interface with automatic scaling
Technical specifications
- Bandwidth: 120 MHz
- Max. Safe input voltage: 2000 V (DC + peak AC) CAT I; 1500 V DC CAT III; 1000 V rms CAT III
- Rise rate: 400 V/ns (maximum)
- Damping: 50x / 500x
- Input impedance: 10 MΩ : 2.5 pF (between inputs)
- 5 MΩ : 5.0 pF (either input to ground).
- Compatible with
Teledyne LeCroy
- Compatible with
Teledyne LeCroy WaveSurfer 3000
Teledyne LeCroy HDO4000
Teledyne LeCroy HDO6000
Teledyne LeCroy HDO8000
- Reading category
CAT III
- Type
HVD3206A
- Product type
Probe
Documents & Downloads
Datasheet
Datasheet 1845897 Teledyne LeCroy HVD3206A HVD3206A Probe 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1845897 Teledyne LeCroy HVD3206A HVD3206A Probe 1 pc(s)
Description
The high-voltage differential probes of the series HVD3000A offers a high CMRR over a wide frequency range, in order to simplify the measuring tasks. The design of the probe is easy to use and enables a safe, precise measurement.
