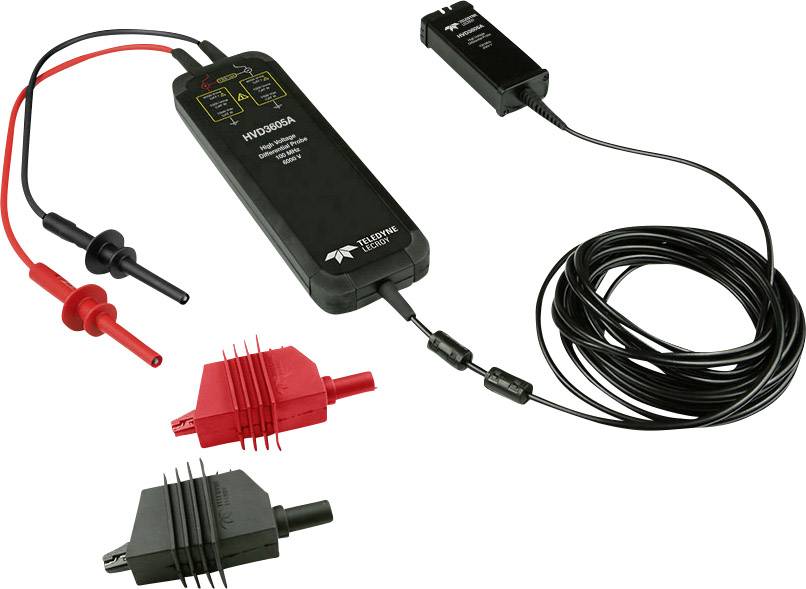

Teledyne LeCroy HVD3605A HVD3605A Probe 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 5,987.39 / piece)
€ 5,987.39
plus VAT.
14-day return policy included
Highlights & Details
Differential probe HVD3605A
- 1%, Accuracy:
- High offset capability at high and low attenuation
- AC and DC coupling
- ProBus active probe interface with automatic scaling
Technical specifications
- Bandwidth: 100 MHz
- Max. Safe input voltage: 7000 V
- Rise rate: 1000 V/ ns (maximum)
- Damping: 200x/2000x
- Input impedance: 48 MΩ : 2.5 pF (between inputs).
- Product type
Probe
- Compatible with
Teledyne LeCroy
- Reading category
CAT III
- Compatible with
Teledyne LeCroy WaveSurfer 3000
Teledyne LeCroy HDO4000
Teledyne LeCroy HDO6000
Teledyne LeCroy HDO8000
- Type
HVD3605A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1845875 Teledyne LeCroy HVD3605A HVD3605A Probe 1 pc(s)
Description
The high-voltage differential probes of the series HVD3000A offers a high CMRR over a wide frequency range, in order to simplify the measuring tasks. The design of the probe is easy to use and enables a safe, precise measurement.
