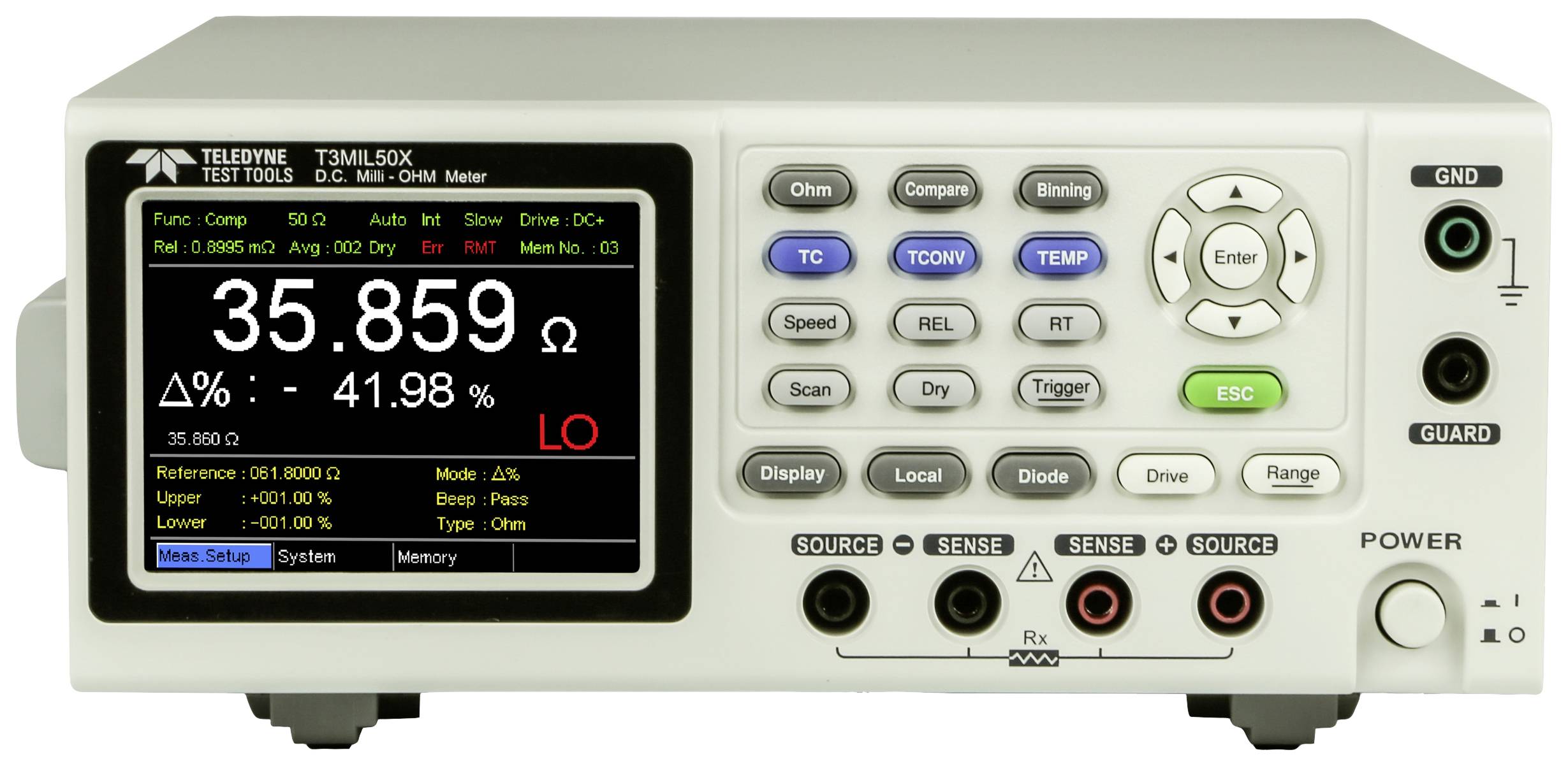

Teledyne LeCroy Milli OHM Meter Ohmmeter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,570.59 / piece)
€ 1,570.59
plus VAT.
14-day return policy included
Highlights & Details
Teledyne LeCroy D.C. Milli-OHM meter - Advanced Features
- TFT LCD displayFast measurement rate of 60 readings per second with an accuracy of 0.05%Integrated measurement function for temperature compensationStandard interfaces: USB, RS-232C
Technical specifications
- Product type
Ohmmeter
- Reading type
Resistance
Manufacturer's standards (no certificate)
- Reading range - resistance
5 mΩ - 5 MΩ
- Interfaces
USB
RS232C
- Power supply (details)
100 - 240 V AC
- Dim
(L x W x H) 28.3 x 22.3 x 10.2 cm
- Weight
3 kg
- Display type
Digital (LCD)
- Width
22.3 cm
- Height
10.2 cm
- Length
28.3 cm
Documents & Downloads
Datasheet
Datasheet 2588117 Teledyne LeCroy Milli OHM Meter Ohmmeter
User & Safety Instructions
User & Safety Instructions 2588117 Teledyne LeCroy Milli OHM Meter Ohmmeter
Description
Teledyne Test Tools introduces a brand new range of DC milli-ohm meters. The T3MIL series includes the two models T3MIL50 and T3MIL50X, which are characterized by a 3.5-inch TFT display with a measurement accuracy of 0.05%, a display of a maximum of 50,000 measurements and a sampling rate of 60 measured values per second. The T3MIL series also offers four-wire measurements, temperature measurement and temperature compensation capabilities to meet the requirements of low-resistance applications.
