Teledyne LeCroy Power Meter Network diagnostics 1-phase
EAN:
Part number:
Item no:
Number
Total (€ 1,721.85 / piece)
€ 1,721.85
plus VAT.
Highlights & Details
Teledyne LeCroy AC/DC Single Phase Digital power meter 6 kHz
- TFT LCD displayTwo numerical display modes together with a waveform display of different parametersFront and rear input terminalsSTANDARD INTERFACES: USB, LAN, RS-232C
Technical specifications
- Rated voltage: 600 VNominal current 20 AImpedance (50/60 Hz) Voltage: 2.4 MΩCurrent 5 mA - 200 mA: 500 mΩCurrent 0.5 A - 20 A: 5 mΩMaximum voltage 700 V.Maximum current 25 A.Maximum common mode voltage 300 V.
- Product type
Network diagnostics
Manufacturer's standards (no certificate)
- Power supply (details)
100 - 240 V
- Dim
(L x W x H) 35 x 27 x 11 cm
- Weight
2.9 kg
- Measurement type
1-phase
- Width
27 cm
- Height
11 cm
- Length
35 cm
- Interfaces
USB
LAN
RS232C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2588114 Teledyne LeCroy Power Meter Network diagnostics 1-phase
Description

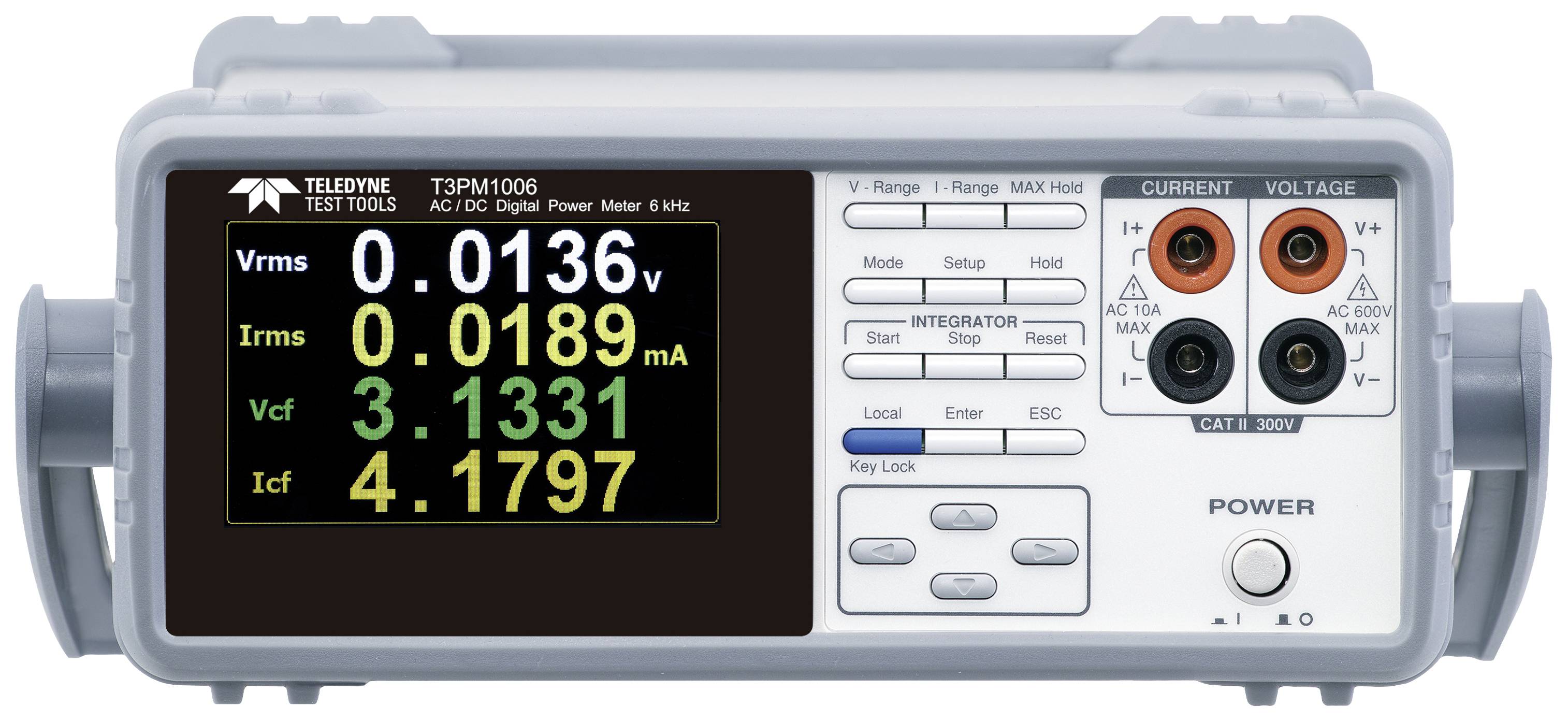

Teledyne Test Tools T3PM1006 is a digital power meter for single-phase (1P/2W) AC power measurements. Measurements with a test bandwidth of DC, 45 Hz to 6 kHz. The T3PM1006 has a TFT LCD screen with a five-digit measurement display. It offers 19 power measurement parameters, an integration measurement function, input connections on the front and rear side and various communication interfaces, which provide the user with a convenient and accurate performance measurement.
