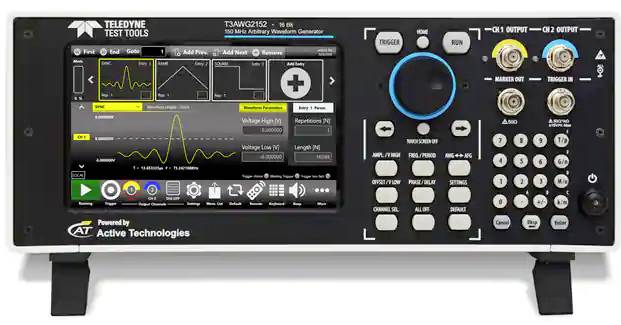

Teledyne LeCroy T3AWG2152 Mains-powered 150 MHz (max) 2-channel Sinus, Rectangle, Arbitrary, Triangle
EAN:
Part number:
Item no:
Number
Total (€ 14,273.11 / piece)
€ 14,273.11
plus VAT.
14-day return policy included
Highlights & Details
Function generatorT3AWG2152
- 150 MHz sine wave 16
- -bit vertical resolution
- This text is machine translated.
Technical specifications
- Product type
Mains-powered
- Frequency range
150 MHz (max)
- Signal output types
Sinus
Rectangle
Arbitrary
Triangle
- Frequency range (sine)
1μHz - 150 MHz
- Frequency range square wave
1μHz - 20 kHz
- Square wave slew rate
4 ns
- Display
Digital
- Frequency range triangle
1μHz - 15 MHz
- ARB frequency range
1μHz - 5 MHz
Manufacturer's standards (no certificate)
- Frequency reading (external)
10 MHz - 150 MHz
- Weight
3.5 kg
- No. of channels
2-channel
- Max. frequency
150 MHz
- Features
Modulation
- Interfaces
USB
- Voltage supply
Mains
- Type
T3AWG2152
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2305674 Teledyne LeCroy T3AWG2152 Mains-powered 150 MHz (max) 2-channel Sinus, Rectangle, Arbitrary, Triangle
Description
An affordable yet powerful solution for all AFG and AWG functions that specializes in key applications such as Automotive Ethernet Transmitter Distortion Test and Dual Pulse Test.
Designed for any waveform, a vertical resolution of 16 bits, an output voltage of 6 Vpp (50 Ω to 50 Ω), a memory of 128 Mpts / ch, a maximum sampling rate of 600 MS / s and a maximum sine wave frequency of 150 MHz.
This text is machine translated.
Designed for any waveform, a vertical resolution of 16 bits, an output voltage of 6 Vpp (50 Ω to 50 Ω), a memory of 128 Mpts / ch, a maximum sampling rate of 600 MS / s and a maximum sine wave frequency of 150 MHz.
This text is machine translated.
Features
- 150 MHz sine wave form
- 16-bit vertical resolution
- Maximum sampling rate of 600 MS/s.
- Built-in waveforms are sine, square, pulse, double pulse, ramp, noise, DC, sin(x)/x, Gauss, Lorentz, exponential rise, exponential decade, haversin and others
- Modulation modes include AM, FM, PM, PSK, FSK, and PWM
- Output impedance 50 Ω and low impedance (0 Ω) can be selected
- Variable load impedance can be selected
