Teledyne LeCroy T3DSO714HD Digital 100 MHz 2 GS/s 50 MP 12 Bit Mixed signal (MSO) 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,281.51 / piece)
€ 1,281.51
plus VAT.
Only 1 Piece(s) available
Highlights & Details

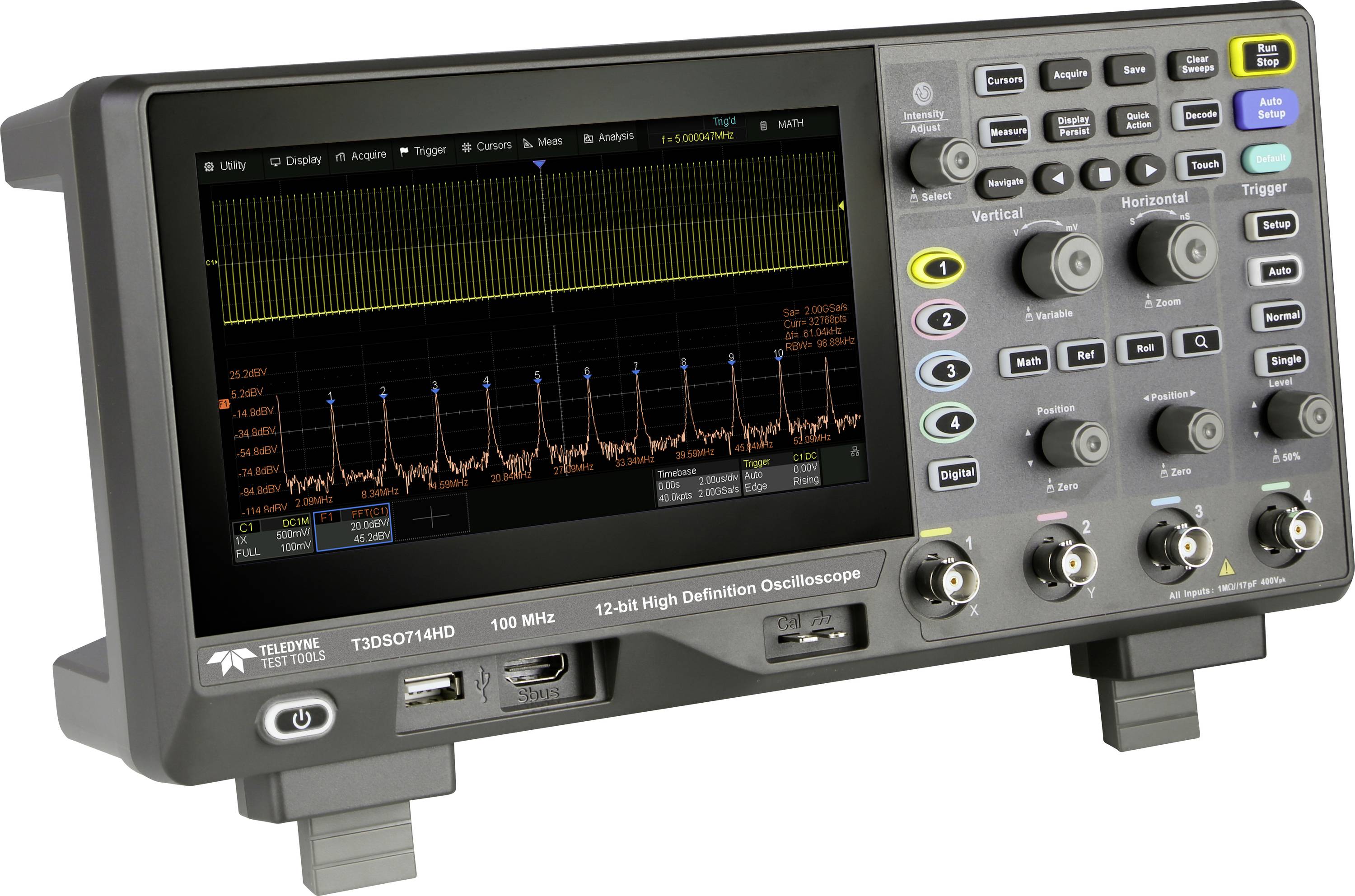

Teledyne LeCroy, 100 MHz, 500 MS/s per Ch, 2 GS/s interleaved, 4 CH, 50 Mpts/Ch Oscilloscope with 7" Color Display
- 100 MHz
- No. of analogue inputs 4
Technical specifications
- Waveform capture rate up to 120,000 WFM/s (normal mode) and 500,000 WFM/s (sequence mode),
- Serial bus triggering and decoding (I2C, SPI, UART, CAN, LIN),
- History waveform recording (up to 80,000 frames),
- Bode Plot and Power Analysis as standard
- Product type
Digital
- Bandwidth
100 MHz
- Channel sample rate
2 GS/s
- Displays
7" TFT-LCD with capacitive touch-screen, 1024×600 resolution
- Resolution
12 Bit
- Screen size
7 inch
- Oscilloscope features
Mixed signal (MSO)
- Time base
2 ns/div - 100 s/div
- No. of analogue inputs
4
Manufacturer's standards (no certificate)
- Vertical deflection
0.5 mV/div to 10 V/div
- Input impedance
1 MΩ
- Input coupling
DC AC GND
- Input voltage
400 V
- Power supply (details)
240 V/50 - 60 Hz
- Dim
(L x W x H) 132.6 x 312 x 151 mm
- Weight
2.6
- No. of digital inputs (max.)
16
- Display
1024×600 p
- Width
312 mm
- Height
151 mm
- Length
132.6 mm
- Interfaces
USB host
USB device
LAN
- Channel memory depth
50 MP
- Type
T3DSO714HD
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3521319 Teledyne LeCroy T3DSO714HD Digital 100 MHz 2 GS/s 50 MP 12 Bit Mixed signal (MSO) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3521319 Teledyne LeCroy T3DSO714HD Digital 100 MHz 2 GS/s 50 MP 12 Bit Mixed signal (MSO) 1 pc(s)
User & Safety Instructions 3521319 Teledyne LeCroy T3DSO714HD Digital 100 MHz 2 GS/s 50 MP 12 Bit Mixed signal (MSO) 1 pc(s)
Description
A Modern, ultra low cost 12 bit Oscilloscope available in 70 MHz, 100 MHz and 200 MHz bandwidths all with 4 channels. Each Oscilloscope comes with all trigger/decode and analysis software as standard as well as optional 16 channel logic probe to provide mixed signal capability. A truly low cost, feature packed 12 bit high definition Oscilloscope each with a large 7" colour touchscreen display.
This text is machine translated.
This text is machine translated.
Features
- 70 MHz, 100 MHz and 200 MHz bandwidth models, 12-bit ADC, Includes all trigger/decode and analysis software, an optional 16 channel logic probe for mixed signal capability with a large 7" colour touchscreen.
Scope of delivery
- Oscilloscope
- 4 x Passive Probes
- USB Cable
- Power Cord
- Quick Start Guide
- Certificate of Calibration
