Teledyne LeCroy T3RC0060-LF Probe 11 Hz
EAN:
Part number:
Item no:
Number
Total (€ 2,990.76 / piece)
€ 2,990.76
plus VAT.
14 days return policy included
Highlights & Details
Teledyne LeCroy, AC Rogowski current probes, 100 mV/A, 60A, 11 Hz LF bandwidth, 5MHz HF bandwidth, 1m cable.
- Bandwidth 11 Hz
Technical specifications
- 100 mV/A, 60A, 11 Hz
- Product type
Probe
- Bandwidth
11 Hz
Manufacturer's standards (no certificate)
- Cable length
1.00 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2464711 Teledyne LeCroy T3RC0060-LF Probe 11 Hz
Description

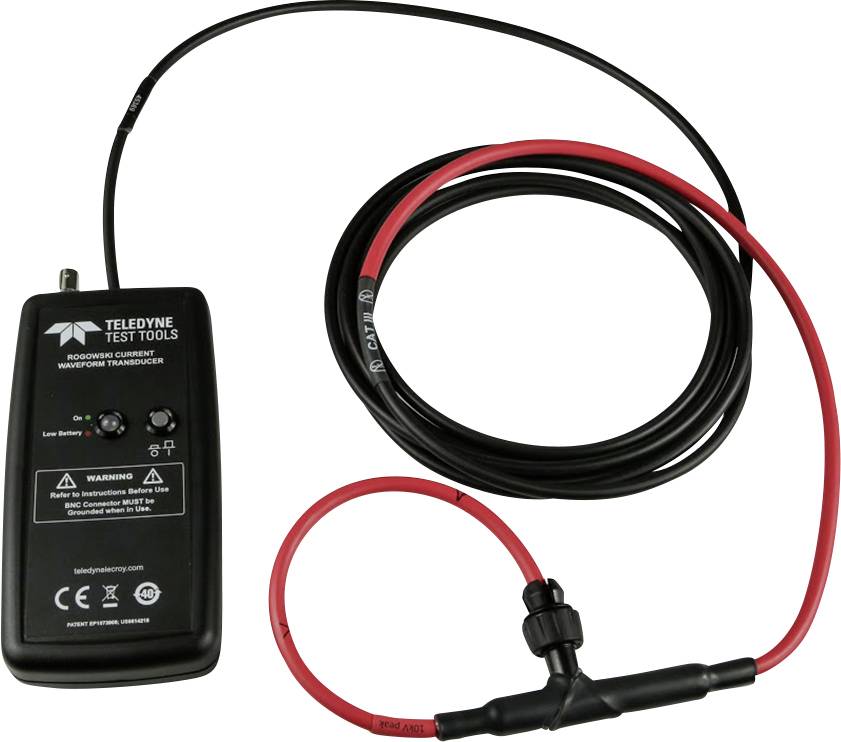

Rogowski current probes from Teledyne Test Tools offer a wide range of products that cover a wide frequency range and current measurement ranges for maximum application coverage while being easy to use in difficult-to-access parts of the circuit.
The flexibility of the probe's measuring coil means that measurements can often be performed without modification of the circuit to be tested, WAS provides more accurate results while remaining isolated, with a very low insertion load of only a few pH.
The integration of battery power and AC plug operation means that the Rogowski current probes from Teledyne Test Tools are just as satisfied in the field as they are on the workbench.
The T3RC0060-LF is our highest sensitivity Rogowski probe with a maximum measurement range of 60 amps with 2 kV isolation and a wide operating temperature range of -20°C to +100°C.
This text is machine translated.
The flexibility of the probe's measuring coil means that measurements can often be performed without modification of the circuit to be tested, WAS provides more accurate results while remaining isolated, with a very low insertion load of only a few pH.
The integration of battery power and AC plug operation means that the Rogowski current probes from Teledyne Test Tools are just as satisfied in the field as they are on the workbench.
The T3RC0060-LF is our highest sensitivity Rogowski probe with a maximum measurement range of 60 amps with 2 kV isolation and a wide operating temperature range of -20°C to +100°C.
