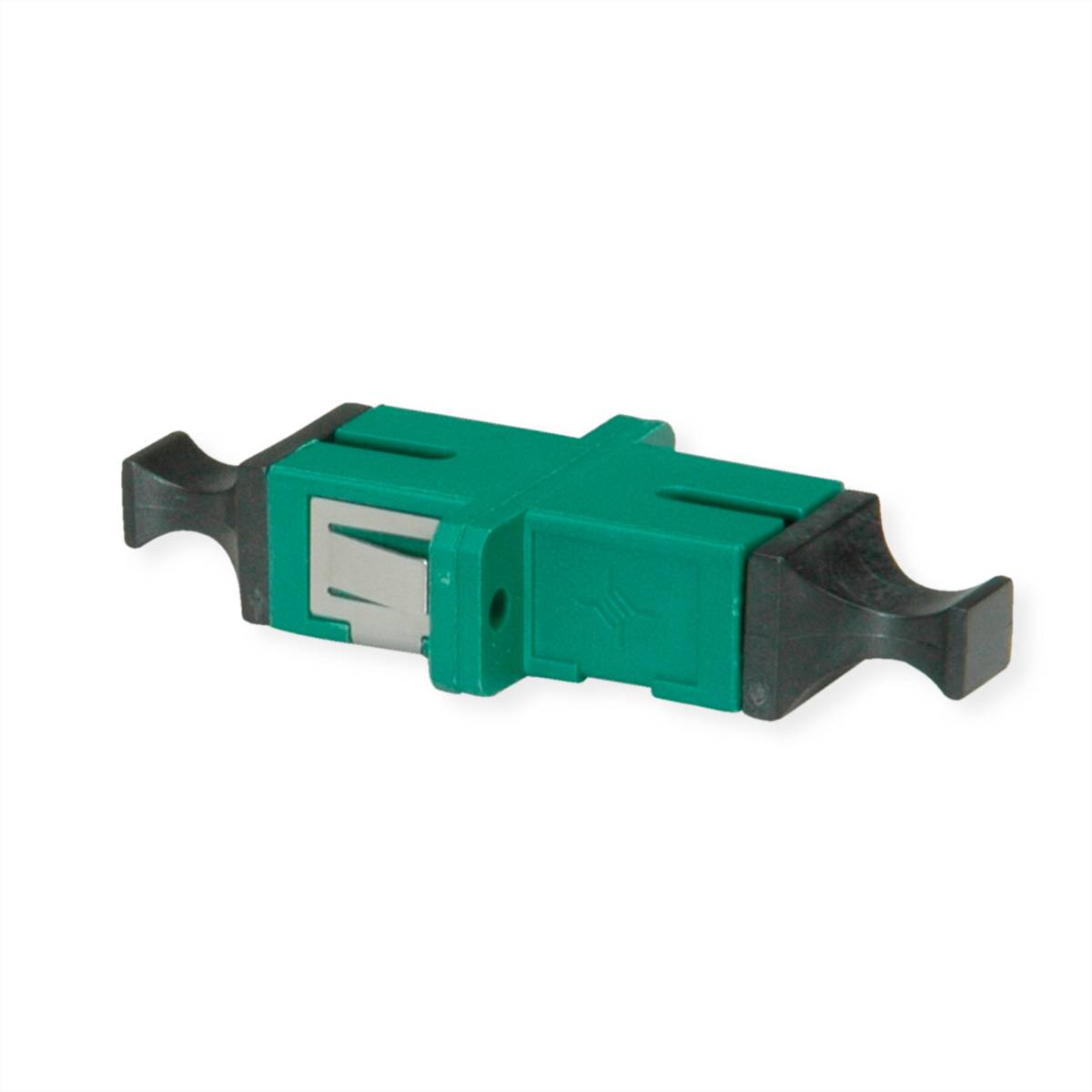

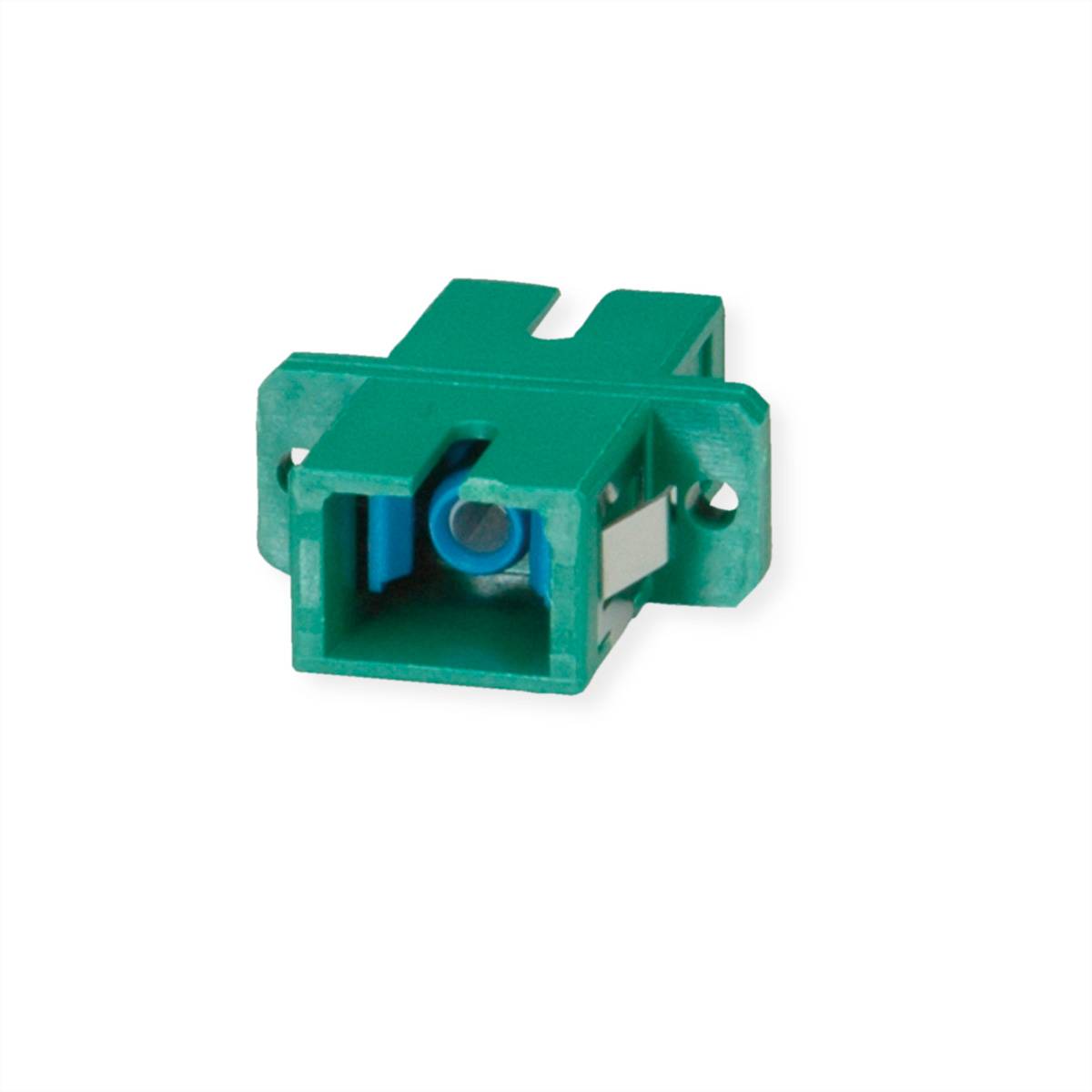

Telegärtner 100007243 FO adapter Green 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

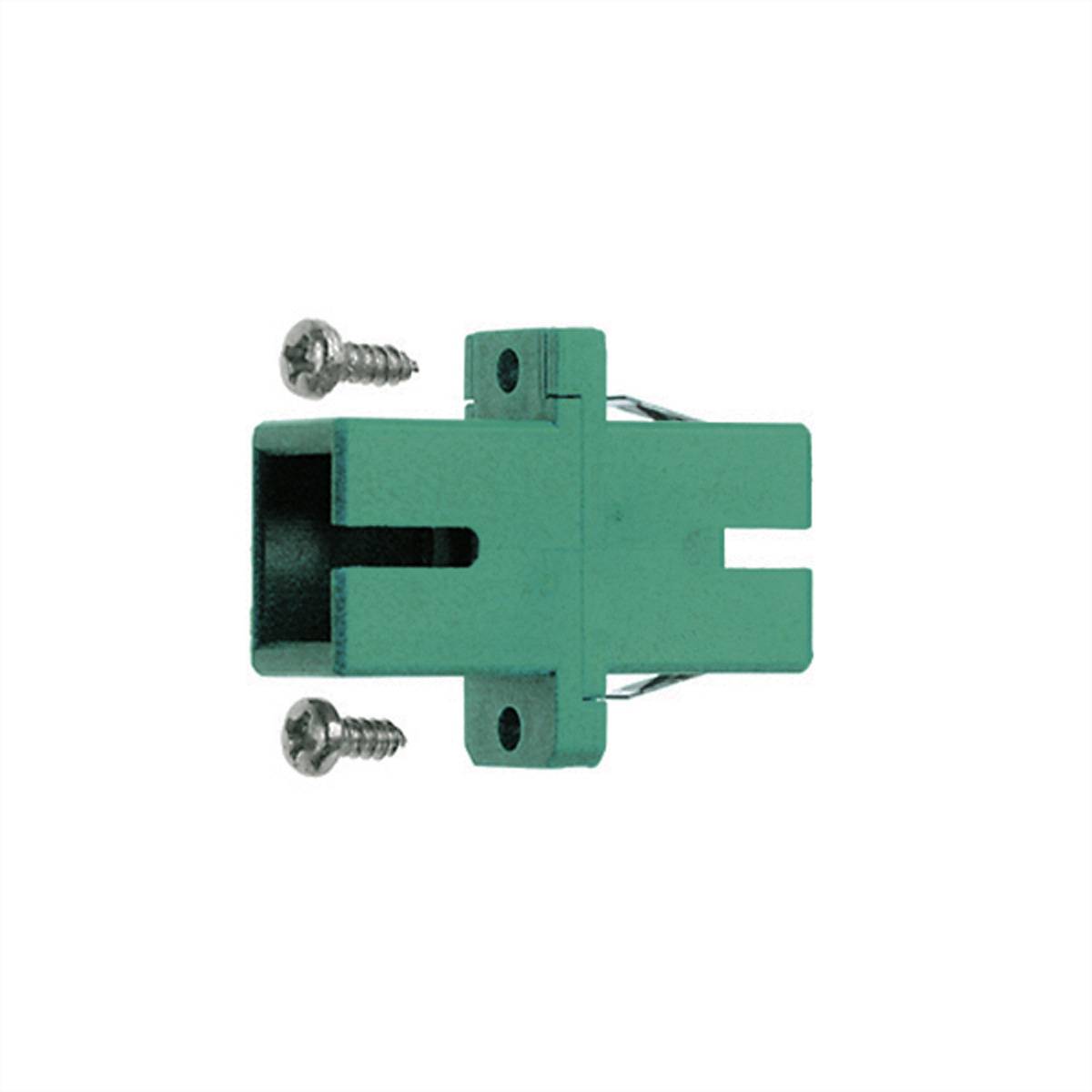

SC/APC coupling, single mode, ceramic sleeve, plastic casing, incl. self-tapping retaining screws...
- Long-lasting, precise and reliable
- Angled Physical Contact with diagonally ground face
- Return loss of over 60 dB
- With plug-ferrule and coupling sleeve made of zirconia-ceramic
Technical specifications
- Product group: Connection technology FO
- Product type: Fibre optic connector
- Colour: green
- Page 1 Type of connection: SC APC
- Page 2 Type of connection: SC APC
- Min. Operating temperature -20 °C
- Max. operating temperature: 80 °C
- Min. Storage temperature: -40 °C
- Storage temperature max. 90 °C.
- Height: 22 mm
- Width 12.8 mm
- Depth: 27.6 mm
- Weight: 6 g
- Packaging height 20 mm
- Package width 70 mm
- Packaging depth 130 mm
- Package weight: 0,007 kg
- Gross weight: 0.007
- Product type
FO adapter
- Type A
SC/APC 8° plug
- Type B
SC/APC 8° plug
- Factory colour
Green
- Version
Adapter
- Cable use
PC
- Connection type
Connector
- Weight
0.007
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3798602 Telegärtner 100007243 FO adapter Green 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3798602 Telegärtner 100007243 FO adapter Green 1 pc(s)
Description
SC/APC coupling, single mode, ceramic sleeve, plastic casing, incl. self-cutting retaining screws in single mode and multimode. For 0.9 mm fiber mounting as well as cable mounting up to 3.2 mm. Multimode as 50 µ, 62.5 µ, 200 µ and 980 µ. Single-mode as 9 µ. SC/APC coupling, single mode, ceramic sleeve, plastic casing, incl. self-cutting attachment screws. Snap or screw mounting. Casing color: Green. Mounting dimensions Z77
This text is machine translated.
Features
- Telegärtner modular input
- Product Type : Modular input
- Dimensions (width x depth x height): 2.2 cm x 2.8 cm x 0.9 cm
- Product material : plastic
- Colour: green.
- Number of ports : 1 port
Scope of delivery
- Telegärtner SC/APC socket, single mode
