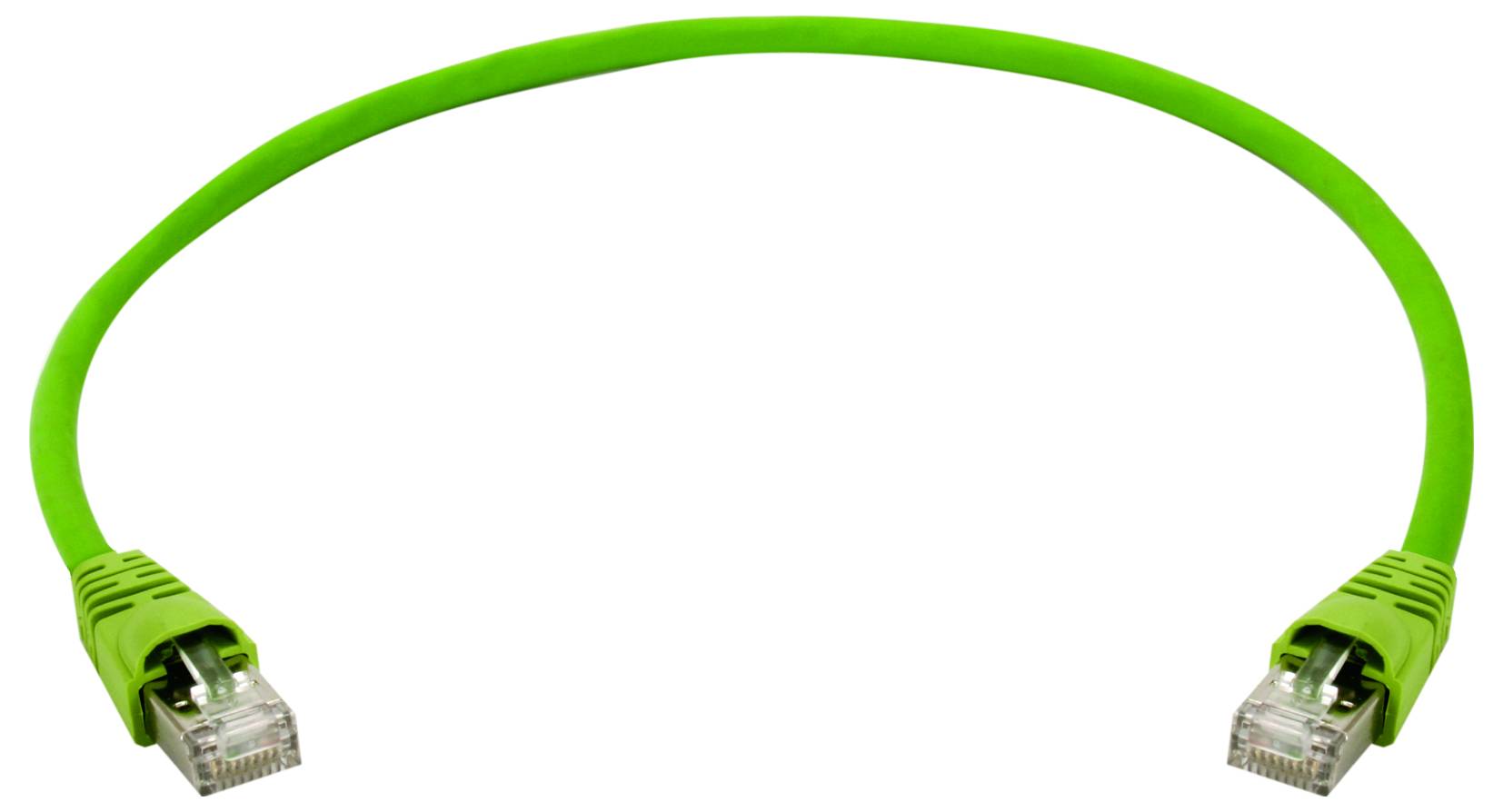

Telegärtner 100008661 RJ45 Patch cable CAT 5 SF/UTP 5.0 m Green incl. bend relief 1 pc(s)
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 5
Shielding
SF/UTP
Connection type
RJ45
Cable length
5.0 m
Datasheet (PDF)
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Technical specifications
- Product type
Patch cable
CAT 5
SF/UTP
- Connection type
RJ45
- No. of A connectors
1 x
- Type A
RJ45
- No. of B connections
1 x
- Type B
RJ45
- Cable length
5.0 m
- Factory colour
Green
- Cable features
incl. bend relief
- Cable use
Networks
- Version
Cable
- LAN transfer rate
1000 MBit/s
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3741862 Telegärtner 100008661 RJ45 Patch cable CAT 5 SF/UTP 5.0 m Green incl. bend relief 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3741862 Telegärtner 100008661 RJ45 Patch cable CAT 5 SF/UTP 5.0 m Green incl. bend relief 1 pc(s)
Description
Specifications:
Proven plug quality for permanently high-quality connections,
Wide range with lengths from 0.5 m to 15 m,
The shielded RJ45 connectors are CAT.6A (ISO/IEC) compliant with IEC 60603-7-51.
Through the connection of 8 wires this industrial cabling system can transfer Gigabit Ethernet with high system reserve and thus offers a high investment protection,
Extended temperature range for use in harsh environments,
Suitable for PoE+,
S/FTP CAT.6A (ISO/IEC) cable available with PUR, PE or PVC sheath,
SF/UTP CAT.5 cable available with PUR or PVC sheath
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Colour: Green RAL 6018
Protection class IP20 - IP20
Short term: SF/UTP CAT.5 PUR
Length: 5 m
This text is machine translated.
Proven plug quality for permanently high-quality connections,
Wide range with lengths from 0.5 m to 15 m,
The shielded RJ45 connectors are CAT.6A (ISO/IEC) compliant with IEC 60603-7-51.
Through the connection of 8 wires this industrial cabling system can transfer Gigabit Ethernet with high system reserve and thus offers a high investment protection,
Extended temperature range for use in harsh environments,
Suitable for PoE+,
S/FTP CAT.6A (ISO/IEC) cable available with PUR, PE or PVC sheath,
SF/UTP CAT.5 cable available with PUR or PVC sheath
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Colour: Green RAL 6018
Protection class IP20 - IP20
Short term: SF/UTP CAT.5 PUR
Length: 5 m
This text is machine translated.
