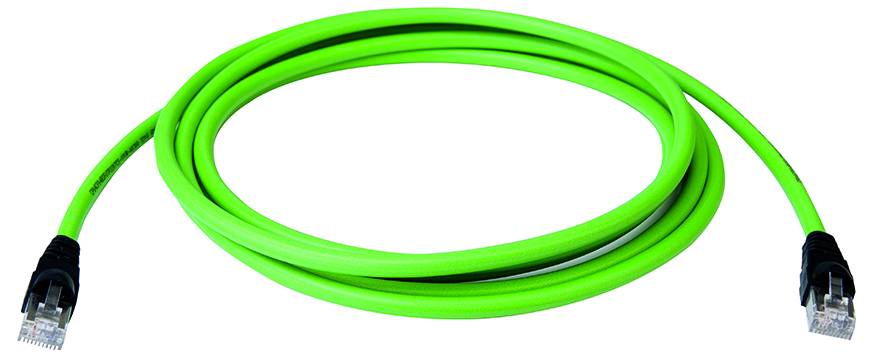

Telegärtner 100017357 RJ45 Patch cable CAT 5 SF/UTP 20 m Green incl. bend relief 1 pc(s)

The requirements of the industry for the safe and consistent transmission of ever increasing amounts of data demand cabling solutions that can withstand current and future demands. In order to meet the ever increasing demands, Telegärtner is constantly working on the development of new products and on the further development of its existing product portfolio. The UL-listed raw cable used for the assemblies (CMX, E344985) complies with the SF/UTP 2x2xAWG22/7 CAT.5 Type C specification according to the PROFINET cabling guideline. In addition to PROFINET, the cable also supports the protocol types EtherCAT and Ethernet/IP. The cable with PUR-sheath is resistant to oils and UV-radiation, halogen-free and flame-resistant and can be used in a temperature range of -40 to 85 °C. They are perfectly suitable for applications such as security and video surveillance systems or production monitoring systems with cameras, even in moving applications with narrow bending radii (> 64 mm, 2 MIO. Bending cycles). The molded RJ45 connectors with lock lever protection and length marking offer a secure grip when plugging and unplugging.

Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Colour: Green RAL 6018
Protection class IP20-IP20
Short term: STX RJ45-RJ45 CC Profinet CAT5
Length 20 m

This text is machine translated.
