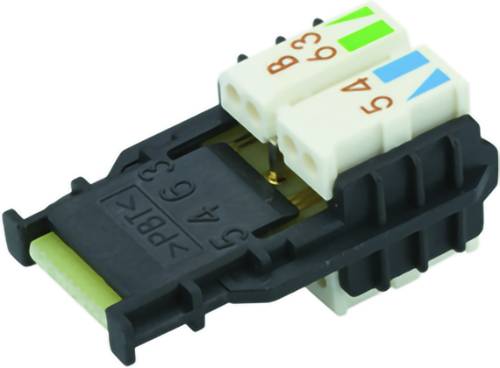

Telegärtner 100020635 Telegärtner 100020635 N/A 100020635 Plug Silver 1 pc(s) 100020635 Plug Silver 1 pc(s)

The field-installable RJ45 connector from the MPP8 series of Telegärtner can be mounted directly on the installation cable to connect terminals with RJ45 connection to the network; connection socket and patch cable are not required. The MFP8 series is the ideal solution for shielded Modular Plug Terminated Link (MPTL), End-to-End Links (E2E Links) and Direct Attach Cabling (DAC).
The plugs are connected again up to four times. In addition, the wire manager can be purchased as a spare part, so that changes and reassembly can be carried out in a particularly economical way.

Specifications:
Suitable for 10 Gigabit Ethernet 10GBASE-T according to IEEE 802.3,
Suitable for four pair Power over Ethernet 4PPPoE according to IEEE 802.3bt,
Four-chamber wire manager with color coding T568B,
For shielded cables,
Assembled in 60 seconds without special tools,
Optimised for on-site assembly,
IPC penetration contacts suitable for solid and stranded conductors,
SAP product title CU-ACC wiremgr MFP8 C6A D.85-1.1 T568B

NOTES: AWG26/1-AWG24/1, AWG27/7-AWG24/7
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: Blister pack (30 pcs.)
Short name: MFP8 wire manager T568B
