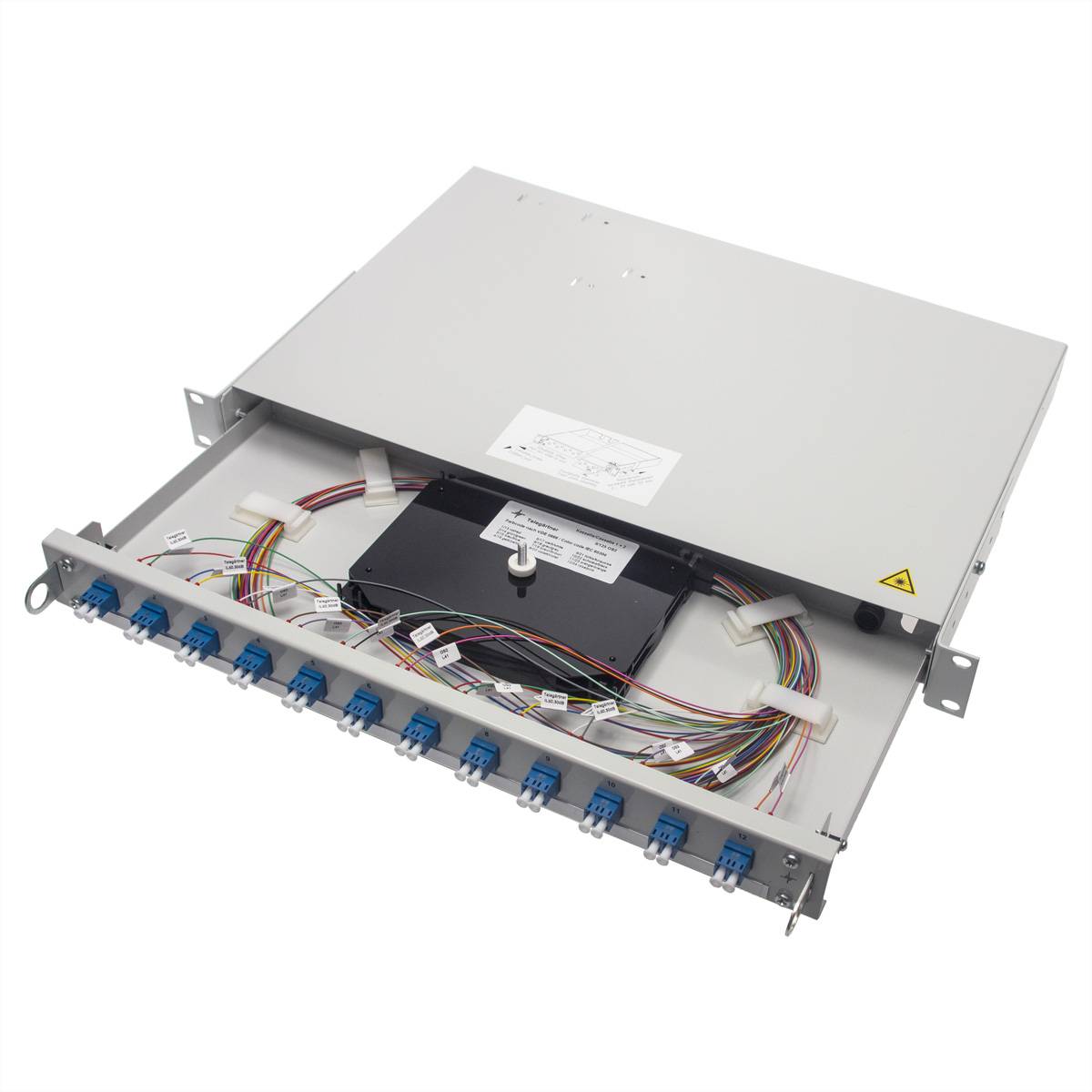

Telegärtner 100021961 Shunt distributor Grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFESSIONAL V, 12xLC-D coupling, 24x 50/125, colored...
- In case of the variants with Pigtails: Splice protection enclosed
- Safe storage/management of excess fiber lengths and splices
- The right installation depth for your rack with 300 mm
- Retrofitting enables individual adjustment
- Cable interception by means of cable binders, hook-and-loop tapes
Technical specifications
- Product group: Connection technology FO
- Product type: Patch panel fiber optic
- Colour: grey
- Fibre cross-section: Single-mode 9/125µm OS2
- Cabinet system: 19" technology
- Number of ports: 12
- Page 1 Type of connection: LC
- Protection class (IP code) IP20
- Height units 1 HE
- RAL color: Light gray RAL 7035
- Height: 44 mm
- Width 482 mm
- Depth: 300 mm
- Weight: 3650 g
- Packaging height 90 mm
- Package width 380 mm
- Packaging depth 540 mm
- Package weight: 2.9 kg
- Gross weight: 2.9
- Product type
Shunt distributor
- Type A
LC
Pigtail
Singlemode OS2
- Fibre type
9/125 µ
- Factory colour
Grey
- Cable length
0 m
- Version
Cable
- Cable use
FO
FO
- Connection type
Fibreglass
Optical fiber
Documents & Downloads
Datasheet
Datasheet 3798558 Telegärtner 100021961 Shunt distributor Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3798558 Telegärtner 100021961 Shunt distributor Grey 1 pc(s)
Description
19" LWL-SHERTELL PROFI V 1 HE WITH
This text is machine translated.
This text is machine translated.
Scope of delivery
- Housing with 2 cable entries for M25, 1 cable gland M25 for 9-13 mm, 1 blind plugs for M25, 1 fiber protective hose with 12 mm inner diameter, splice box with integrated splice holders for max. 24 fibers and cover, front plate, couplings and pigtails, see table, When supplied with pigtails, crimp splice protectors system Telekom and labeling strips are included
