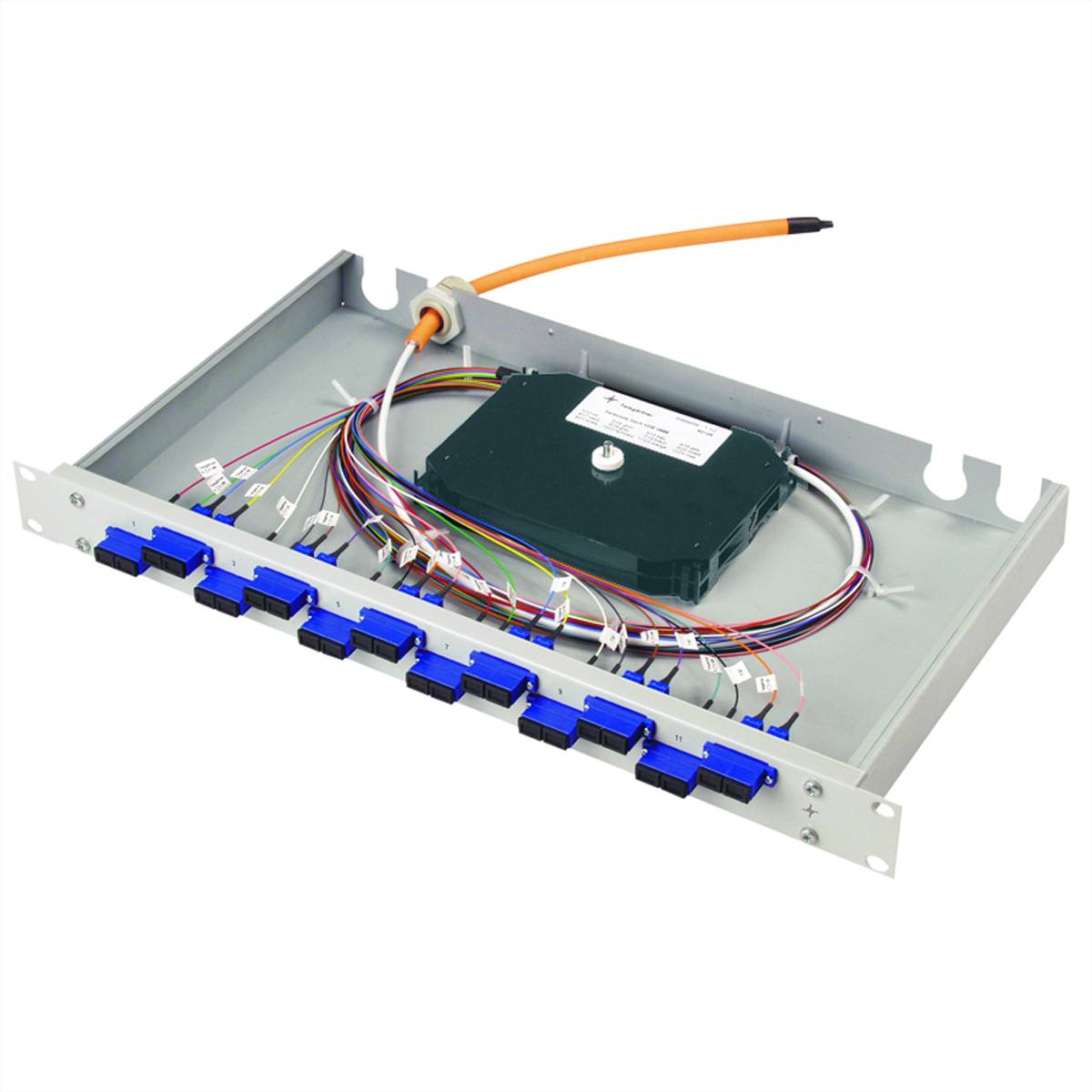

Telegärtner 100021997 Shunt distributor Grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BASIS eco marshaling distributor with built-in couplings and pigtails, 12x LC duplex, OM4, ericaviolet...
- In case of the variants with Pigtails: Splice protection enclosed
- Safe storage/management of excess fiber lengths and splices
- The right installation depth for your rack with 265mm
- Retrofitting enables individual adjustment
- Cable interception by means of cable binders, hook-and-loop tapes
Technical specifications
- Product group: Connection technology FO
- Product type: Patch panel fiber optic
- Colour: grey
- Fibre cross-section: Multimode 50/125µm OM4
- Cabinet system: 19" technology
- Number of ports: 12
- Page 1 Type of connection: LC
- Protection class (IP code) IP20
- Height units 1 HE
- RAL color: Light gray RAL 7035
- Height: 44 mm
- Width 482 mm
- Depth: 265 mm
- Weight: 2440 g.
- Packaging height 90 mm
- Package width 330 mm
- Packaging depth 540 mm
- Package weight: 2,415 kg
- Gross weight: 2.415
- Product type
Shunt distributor
- Factory colour
Grey
- Width
482 mm
- Height
44 mm
- Cable length
0 mm
- Version
Cable
- Length
265 mm
- Rack unit
1 U
- Cable use
FO
- Rack size
483 mm (19")
- Connection type
Fibreglass
Optical fiber
- Connections
12x LC duplex couplings 24x fiber pigtail 50/125 OM4 2 m LC. Cable input: 2x M20 and 2x M25
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3798561 Telegärtner 100021997 Shunt distributor Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3798561 Telegärtner 100021997 Shunt distributor Grey 1 pc(s)
Description
BASIC eco Shunting distributor with built-in couplings and pigtails, 12x LC Duplex, OM4, ericaviolet For connecting bundles of wires and TICNET-routes. For accepting up to 12 spliceboxes. Fixed installation. Number of couplings 12. Colour: Ericaviolet. 24x 50/125, OM4, 2 m, LC. Cable input: 2x M20 and 2x M25. Coupling: Colour: Violet. Coupler: LC duplex, ceramic sleeve, plastic casing, ericaviolet. Comments: Coloured, ready to splice
This text is machine translated.
Scope of delivery
- Housing with 2 cable guides each for M20 and M25, 1 M20 cable gland for 5-9 mm, 1 M25 cable gland for 9-13 mm, 2 filler plugs for M20 and M25, splice box with integrated splice holders for max. 24 fibers and cover, front plate, couplings and pigtail keys.
