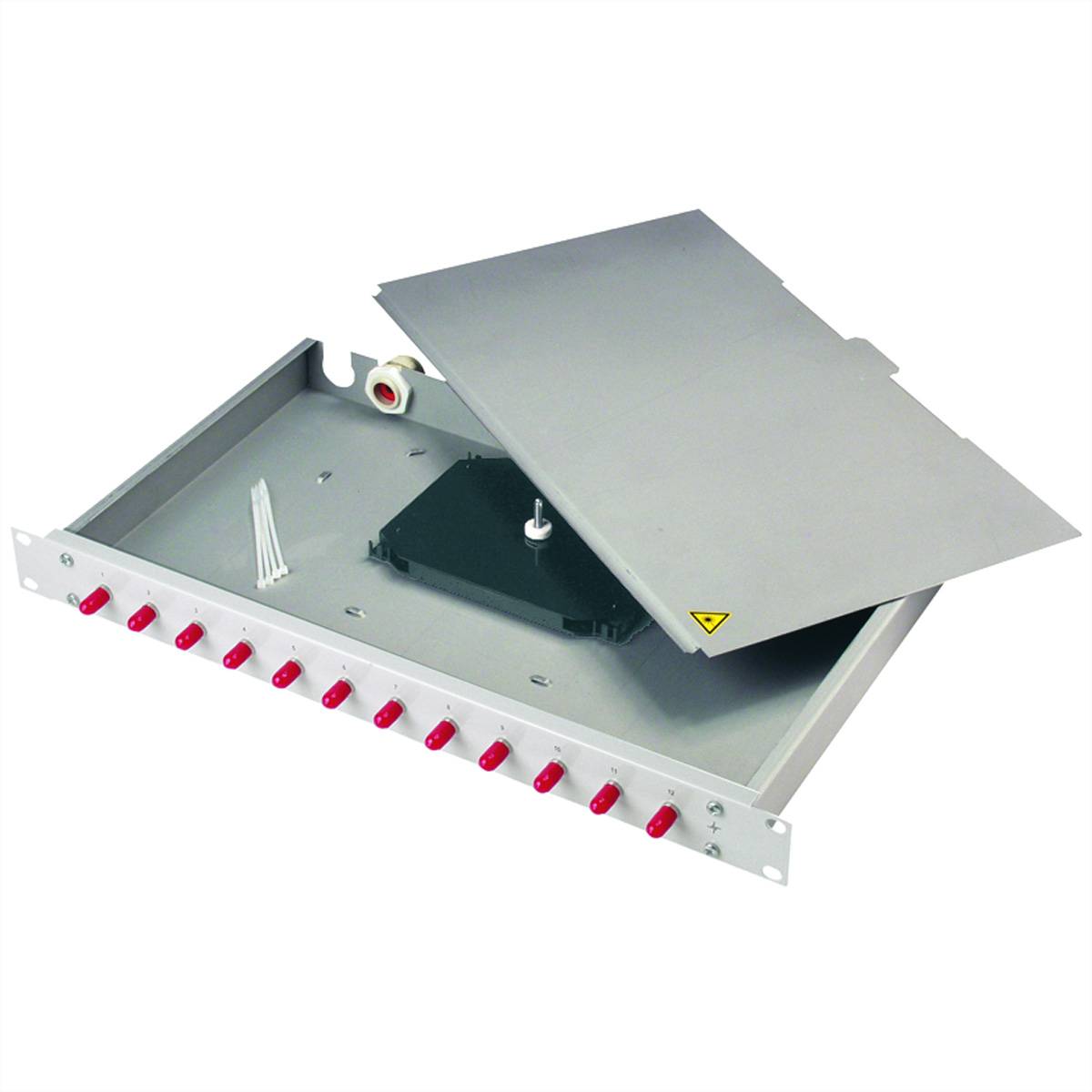

Telegärtner 100022005 Shunt distributor Grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
BASE eco switch distributor with built-in
- In case of the variants with Pigtails: Splice protection enclosed
- Safe storage/management of excess fiber lengths and splices
- The right installation depth for your rack with 265mm
- Retrofitting enables individual adjustment
- Cable interception by means of cable binders, hook-and-loop tapes
Technical specifications
- Product group: Connection technology FO
- Product type: Patch panel fiber optic
- Colour: grey
- Fibre cross-section: Multimode 50/125µm OM5
- Cabinet system: 19" technology
- Number of ports 24
- Page 1 Type of connection: LC
- Protection class (IP code) IP20
- Height units 1 HE
- RAL color: Light gray RAL 7035
- Height: 44 mm
- Width 482 mm
- Depth: 265 mm
- Weight: 2380 g
- Packaging height 90 mm
- Package width 340 mm
- Packaging depth 530 mm
- Package weight: 2,386 kg
- Gross weight: 2.386
- Product type
Shunt distributor
- Factory colour
Grey
- Width
482 mm
- Height
44 mm
- Length
265 mm
Optical fiber
- Connections
24x LC duplex OM5 lime green
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3798562 Telegärtner 100022005 Shunt distributor Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3798562 Telegärtner 100022005 Shunt distributor Grey 1 pc(s)
Description
BASIS eco distribution distributor with in-built couplings, 24x LC Duplex, OM5, blind green For connecting bundle-wire cables and TICNET-routes. For accepting up to 12 spliceboxes. Fixed installation. Number of couplings 24. Coupling: Colour: Lime green. Coupler: LC duplex, ceramic sleeve, plastic casing, lime green. Comments: Coloured, ready to splice
This text is machine translated.
Scope of delivery
- Housing with 2 cable entries each for M20 and M25, 1 cable gland M20 for 5-9 mm
