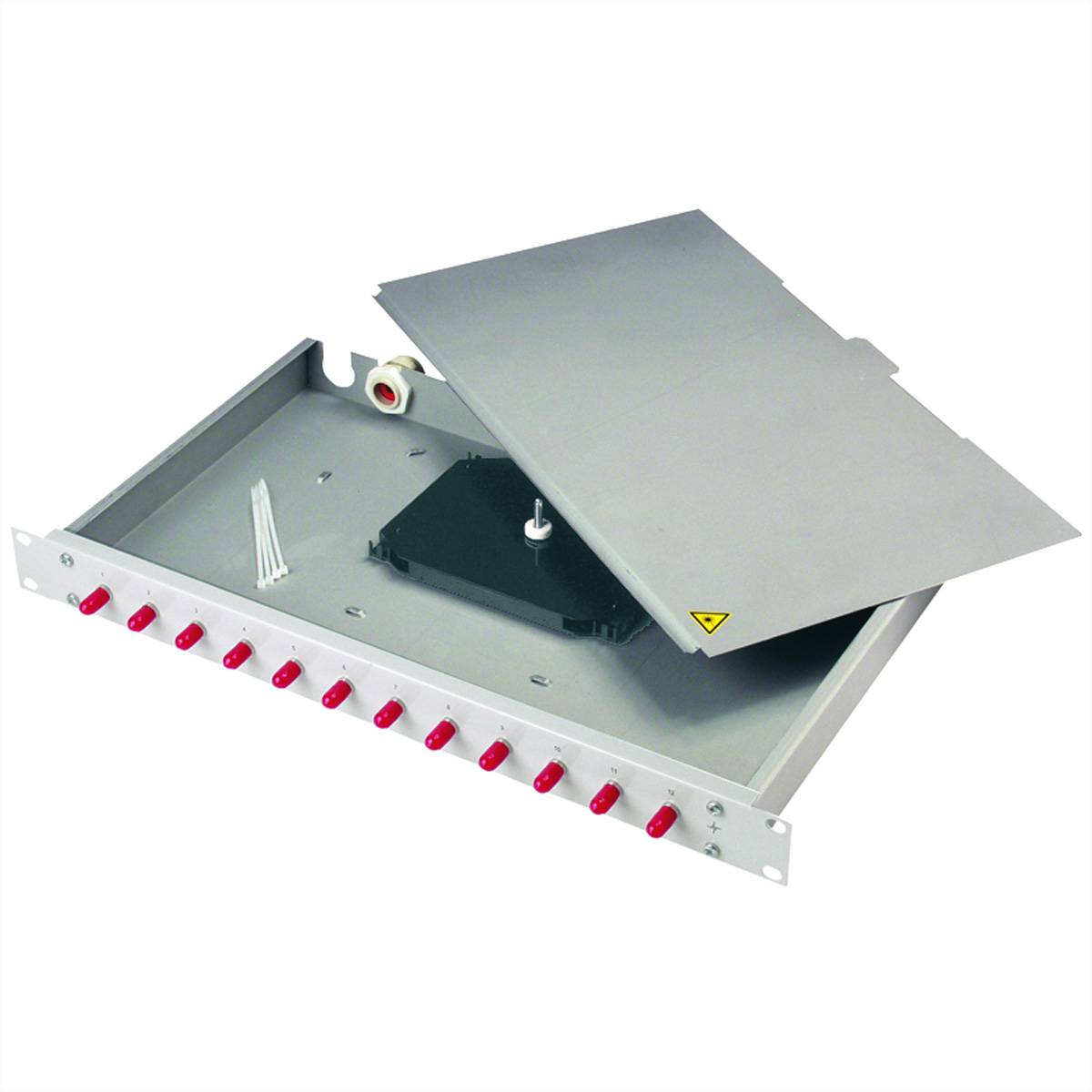

Telegärtner 100022109 Shunt distributor Grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
19" LWL-SHUNTER.BASIS ECO, 1 HE
- For connecting cable bundles and TICNET-lines
- In case of the variants with Pigtails: Splice protection enclosed
- Safe storage/management of excess fiber lengths and splices
- Closed casing protects against dust ingress
Technical specifications
- Product group: Connection technology FO
- Product type: Patch panel fiber optic
- Colour: grey
- Fibre cross-section: Single-mode 9/125µm OS2
- Cabinet system: 19" technology
- Number of ports: 12
- Page 1 Port Type: SC
- Protection class (IP code) IP20
- Height units 1 HE
- RAL color: Light gray RAL 7035
- Height: 44 mm
- Width 482 mm
- Depth: 265 mm
- Weight: 2390 g
- Packaging height 90 mm
- Package width 340 mm
- Packaging depth 530 mm
- Package weight: 2,474 kg
- Gross weight: 2.474
- Product type
Shunt distributor
- Factory colour
Grey
Optical fiber
Documents & Downloads
Datasheet
Datasheet 3798567 Telegärtner 100022109 Shunt distributor Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3798567 Telegärtner 100022109 Shunt distributor Grey 1 pc(s)
Description
19" LWL-SHUNTER.BASIS ECO, 1 HE
This text is machine translated.
This text is machine translated.
Scope of delivery
- Housing with 2 cable guides each for M20 and M25, 1 M20 cable gland for 5-9 mm, 1 M25 cable gland for 9-13 mm, 2 filler plugs for M20 and M25, splice box with integrated splice holders for max. 24 fibers and cover, front plate, couplings and pigtail keys.
