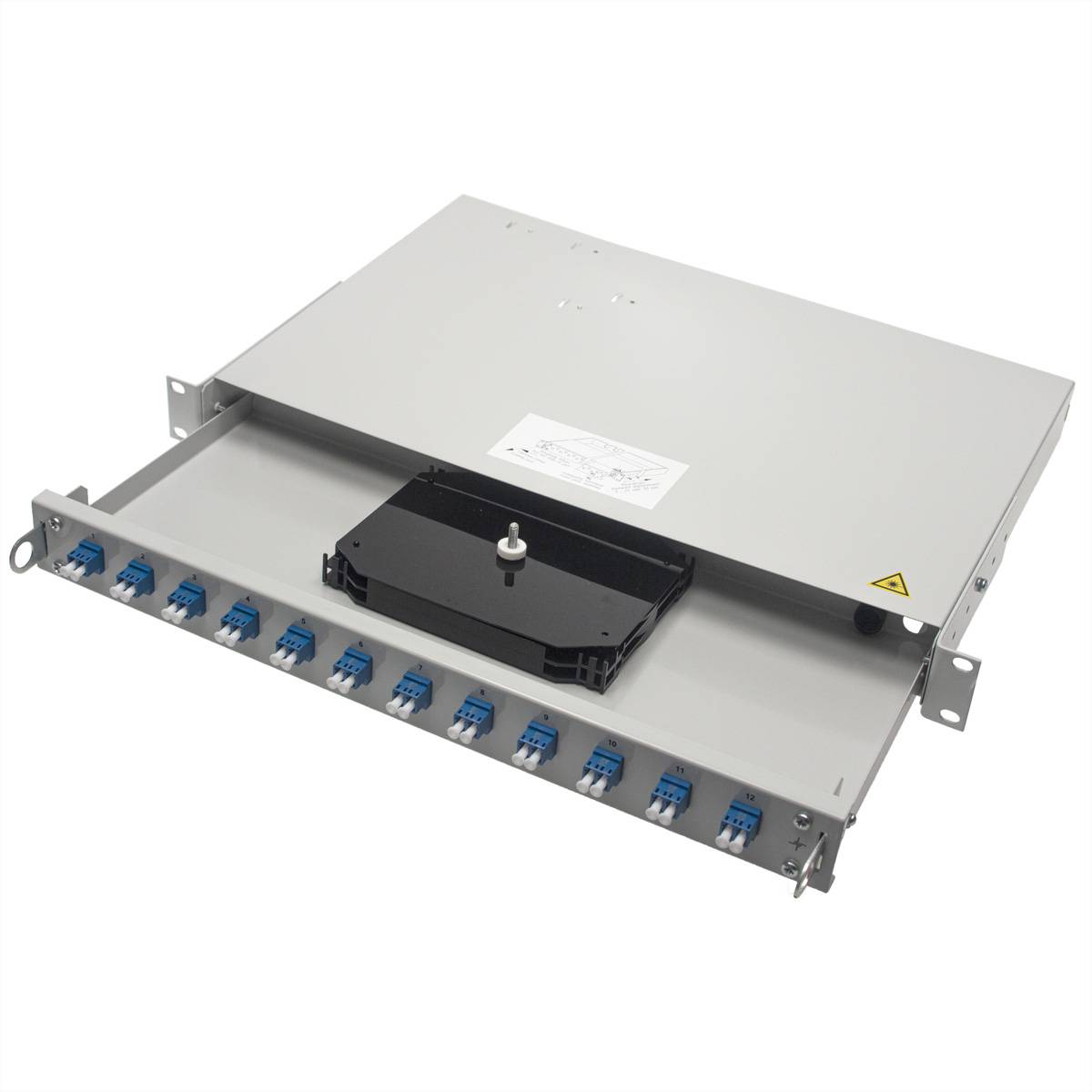

Telegärtner 100022128 Shunt distributor Grey 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PROFI V, 12xLC-D coupling...
- In case of the variants with Pigtails: Splice protection enclosed
- Safe storage/management of excess fiber lengths and splices
- The right installation depth for your rack with 300 mm
- Retrofitting enables individual adjustment
- Cable interception by means of cable binders, hook-and-loop tapes
Technical specifications
- Product group: Connection technology FO
- Product type: Patch panel fiber optic
- Colour: grey
- Fibre cross-section: Multimode 50/125µm OM3
- Cabinet system: 19" technology
- Number of ports: 12
- Page 1 Type of connection: LC
- Protection class (IP code) IP20
- Height units 1 HE
- RAL color: Light gray RAL 7035
- Height: 44 mm
- Width 482 mm
- Depth: 300 mm
- Weight: 3630 g
- Packaging height 90 mm
- Package width 380 mm
- Packaging depth 550 mm
- Package weight: 2,842 kg
- Gross weight: 2.842
- Product type
Shunt distributor
Pigtail
Multimode OM3
- Fibre type
50/125 µ
- Material
Plastic
- Factory colour
Grey
- Width
482 mm
- Height
44 mm
- Depth
300 mm
Optical fiber
Documents & Downloads
Datasheet
Datasheet 3798569 Telegärtner 100022128 Shunt distributor Grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3798569 Telegärtner 100022128 Shunt distributor Grey 1 pc(s)
Description
PROFESSIONAL V, 12xLC-D coupling For connecting bundles of cables. can be pulled out With fixed rear wall for fixed cable management in the cabinet. Number of couplings 12. Number of spliceboxes: 2. Coupling: Colour: Turquoise. Coupler: LC duplex, ceramic sleeve, plastic casing, turquoise. Notes: For multimode OM3
This text is machine translated.
Scope of delivery
- Housing with 2 cable entries for M25, 1 cable gland M25 for 9-13 mm, 1 blind plugs for M25, 1 fiber protective hose with 12 mm inner diameter, splice box with integrated splice holders for max. 24 fibers and cover, front plate, couplings and pigtails, see table, When supplied with pigtails, crimp splice protectors system Telekom and labeling strips are included
