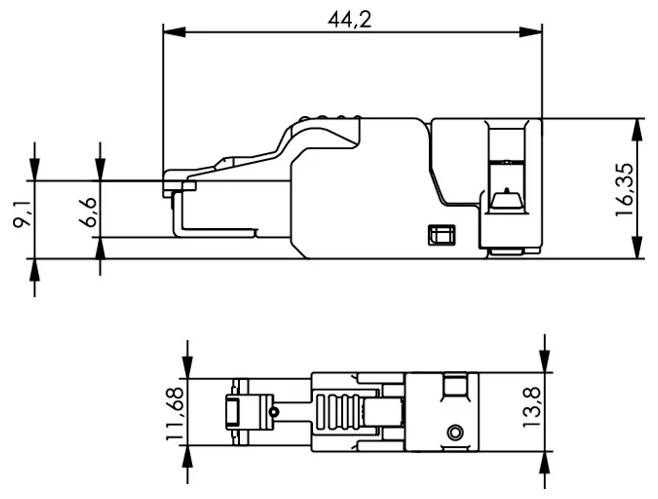

Image similar
1/2
Image similar
Telegärtner 100023056 RJ45 unshielded field-ready assembly connector UFP8 T568B CAT.6A(IEC), AWG24/1-AWG23/1, AWG27/7-AW
EAN:
Part number:
Item no:
Packaging type
Package
Product type
RJ45 connector
Connector type
Plug
No. of pins
8P8C
Specification
CAT 6A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Package
- Type
100023056
- Product type
RJ45 connector
- Connector type
Plug
- No. of pins
8P8C
CAT 6A
- Connector standard
RJ45
- AWG max.
27
- AWG (min.)
23
- Connection
RJ45
- Content
1 pc(s)
- RoHS-compliant
Yes
- Features
Industrial-grade (w/o tools)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3737255 Telegärtner 100023056 RJ45 unshielded field-ready assembly connector UFP8 T568B CAT.6A(IEC), AWG24/1-AWG23/1, AWG27/7-AW
User & Safety Instructions
User & Safety Instructions 3737255 Telegärtner 100023056 RJ45 unshielded field-ready assembly connector UFP8 T568B CAT.6A(IEC), AWG24/1-AWG23/1, AWG27/7-AW
Description
The Telegärtner UPF8 Series field-ready RJ45 connectors can be mounted directly to the installation cable to connect terminal devices with RJ45 connector to the network; connection socket and patch cable are not required. The UFP8 series is the ideal solution for unshielded Modular Plug Terminated Link (MPTL), End-to-End Links (E2E Links) and Direct Attach Cabling (DAC).
With the field-ready RJ45 plug UFP8 by Telegärtner, terminals with RJ45 connection can be connected easily, quickly and safely to the installation cable. If the terminal is mounted over the cable outlet or if the cable is led into the protective housing of the device, the connection is invisible and inaccessible to unauthorized persons, WAS not only looks good, but also offers the user the decisive plus in protection against manipulation.
Specifications:
Connectors according to IEC 60603-7 RJ45 8P8C,
Suitable for 10 Gigabit Ethernet 10GBASE-T according to IEEE 802.3,
Suitable for Power over Ethernet plus PoE+ according to IEEE 802.3at,
Four-chamber wire manager with color coding,
For unshielded cables,
Multi-port enabled,
Can be assembled in 60 seconds without special tools,
Optimised for on-site installation
IPC penetration contacts suitable for solid and stranded conductors,
Protection class IP20.
Suitable for cable external diameter 5.5 to 8.5 mm
Cable strain relief latching in fine steps,
With pre-mounted protective cap,
UL listed
Notes: AWG 24/1-23/1, AWG 27/7-23/7, with pre-fitted protective cap
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: Blister pack (10 pcs.)
Short designation UFP8 T568B CAT.6A (ISO/IEC)
This text is machine translated.
With the field-ready RJ45 plug UFP8 by Telegärtner, terminals with RJ45 connection can be connected easily, quickly and safely to the installation cable. If the terminal is mounted over the cable outlet or if the cable is led into the protective housing of the device, the connection is invisible and inaccessible to unauthorized persons, WAS not only looks good, but also offers the user the decisive plus in protection against manipulation.
Specifications:
Connectors according to IEC 60603-7 RJ45 8P8C,
Suitable for 10 Gigabit Ethernet 10GBASE-T according to IEEE 802.3,
Suitable for Power over Ethernet plus PoE+ according to IEEE 802.3at,
Four-chamber wire manager with color coding,
For unshielded cables,
Multi-port enabled,
Can be assembled in 60 seconds without special tools,
Optimised for on-site installation
IPC penetration contacts suitable for solid and stranded conductors,
Protection class IP20.
Suitable for cable external diameter 5.5 to 8.5 mm
Cable strain relief latching in fine steps,
With pre-mounted protective cap,
UL listed
Notes: AWG 24/1-23/1, AWG 27/7-23/7, with pre-fitted protective cap
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: Blister pack (10 pcs.)
Short designation UFP8 T568B CAT.6A (ISO/IEC)
This text is machine translated.
