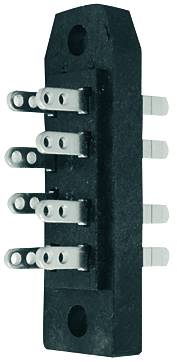

Telegärtner 100023255 Edge connector (sockets) Total number of pins 30 1 pc(s)
EAN:
Part number:
Item no:
Product type
Edge connector (sockets)
Total no. of pins
30
Connector type
Edge connector, straight
Content
1 pc(s)
Connector orientation
Perpendicular (to the PCB)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Highlights & Details
Terminal block B 30
- Total number of pins 30
- Content 1 pc(s)
Technical specifications
- Product type
Edge connector (sockets)
- Total no. of pins
30
- Connector type
Edge connector, straight
- Connector orientation
Perpendicular (to the PCB)
- Total number of pins
30
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Pins per row
2
- Connection
Soldering
- Case material
PA
- Manufacturer part #
100023255
- Content
1 pc(s)
- Type
100023255
- Nominal voltage
380 V AC
450 V DC
- Number of pins
30
- Mating cycles
500
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2535658 Telegärtner 100023255 Edge connector (sockets) Total number of pins 30 1 pc(s)
