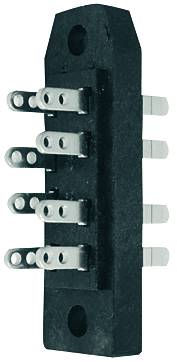

Telegärtner 100023258 Edge connector (pins) Total number of pins 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Edge connector (pins)
Total no. of pins
8
Connector type
Multipole connector, straight
Content
1 pc(s)
Connector orientation
Perpendicular (to the PCB)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details
Multipole connector A 8
- Total number of pins 8
- Content 1 pc(s)
Technical specifications
- Product type
Edge connector (pins)
- Total no. of pins
8
- Connector type
Multipole connector, straight
- Connector orientation
Perpendicular (to the PCB)
- Total number of pins
8
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Pins per row
2
- Connection
Soldering
- Case material
PA
- Manufacturer part #
100023258
- Content
1 pc(s)
- Type
100023258
- Nominal voltage
380 V AC
450 V DC
- Number of pins
8
- Mating cycles
500
- UKCA
yes
