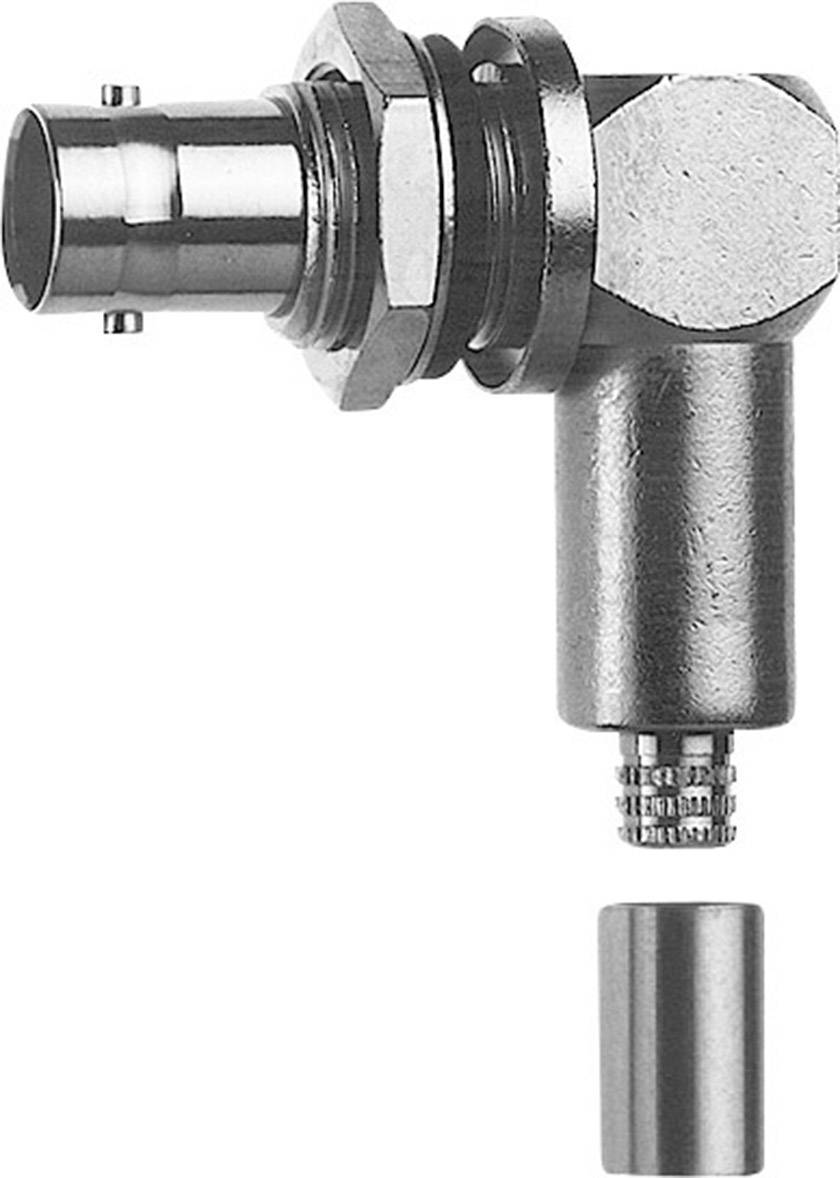

Telegärtner 100023566 100023566 BNC connector Socket, horizontal mount 75 Ω 1 pc(s)
EAN:
Part number:
Item no:
Cable category
RG 59 B/U
Product type
BNC connector
Connector type
Socket, horizontal mount
Impedance
75 Ω
Connection
Crimp
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 22.68 / piece)
€ 27.72
-18 %
€ 22.68
plus VAT.
Highlights & Details
BNC plug connector
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Cable category
RG 59 B/U
- Product type
BNC connector
- Connector type
Socket, horizontal mount
- Impedance
75 Ω
- Connection
Crimp
- Content
1 pc(s)
- Cable Ø
6 mm
- Max. frequency
4 GHz
- Case material
Brass nickel plated
- Manufacturer part #
100023566
- Insulation material
PTFE
- Contact material
Brass gold plated
- RoHS-compliant
Yes
- Temperature range
-40 - +155 °C
- Type
100023566
- Seal type
Bayonet
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1366346 Telegärtner 100023566 100023566 BNC connector Socket, horizontal mount 75 Ω 1 pc(s)
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
