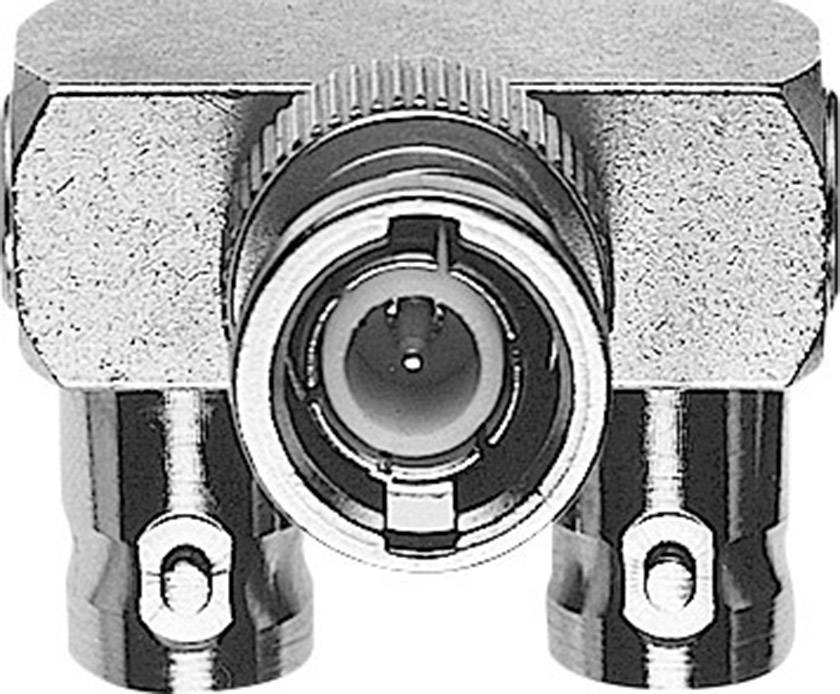

Telegärtner 100023586 100023586 BNC adapter BNC socket - BNC plug, BNC socket 1 pc(s)
EAN:
Part number:
Item no:
Content
1 pc(s)
Type A
BNC socket
Type B
BNC plug
BNC socket
Impedance
50 Ω
Connector type
Adapter, Y-shaped
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.95
€ 20.89
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 24.36
-10 %
€
Only 2 Piece(s) available
Highlights & Details

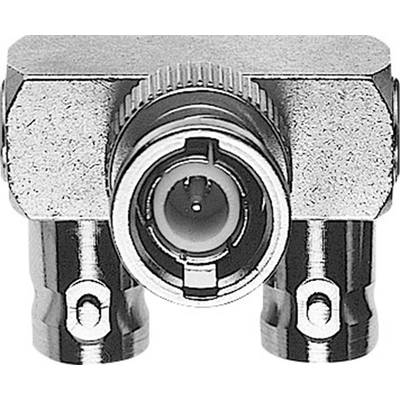

BNC Y-adapter
- BNC socket - BNC plug, BNC socket
Our service for you
Technical specifications
- Content
1 pc(s)
- Type A
BNC socket
- Type B
BNC plug
BNC socket
- Max. frequency
4 GHz
- Impedance
50 Ω
- Manufacturer part #
100023586
- Type
100023586
- Connector type
Adapter, Y-shaped
- Insulation material
PTFE
- Case material
Brass nickel plated
- RoHS-compliant
Yes
- Product type
BNC adapter
Documents & Downloads
Datasheet
Datasheet 1366093 Telegärtner 100023586 100023586 BNC adapter BNC socket - BNC plug, BNC socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366093 Telegärtner 100023586 100023586 BNC adapter BNC socket - BNC plug, BNC socket 1 pc(s)
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
