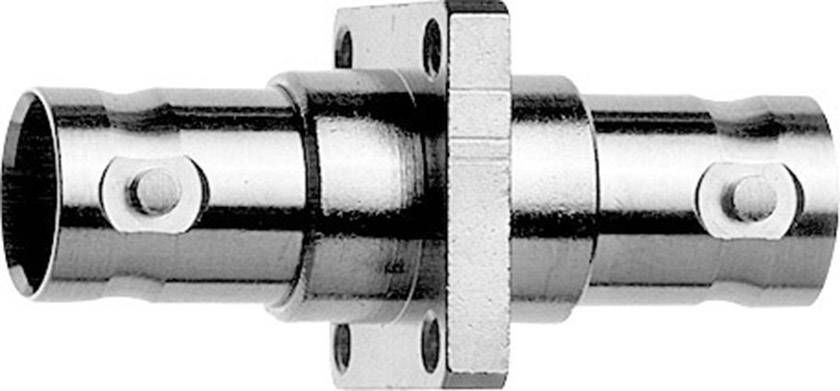

Telegärtner 100023591 100023591 BNC feedthrough BNC socket - BNC socket 1 pc(s)
EAN:
Part number:
Item no:
Product type
BNC feedthrough
Type A
BNC socket
Type B
BNC socket
Connector type
Adapter, flange
Impedance
50 Ω
Datasheet (PDF)
48 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
5
3% = € 0.31
€ 9.77
10
5% = € 0.51
€ 9.57
50
10% = € 1.01
€ 9.07
100
20% = € 2.02
€ 8.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€
Highlights & Details
BNC plug connector
- BNC socket - BNC socket
Our service for you
Technical specifications
- Product type
BNC feedthrough
- Type A
BNC socket
- Type B
BNC socket
- Connector type
Adapter, flange
- Impedance
50 Ω
- Content
1 pc(s)
- Max. frequency
4 GHz
- Case material
Brass nickel plated
- Manufacturer part #
100023591
- Insulation material
PTFE
- RoHS-compliant
Yes
- Type
100023591
- Seal type
Bayonet
Documents & Downloads
Datasheet
Datasheet 1366384 Telegärtner 100023591 100023591 BNC feedthrough BNC socket - BNC socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366384 Telegärtner 100023591 100023591 BNC feedthrough BNC socket - BNC socket 1 pc(s)
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
