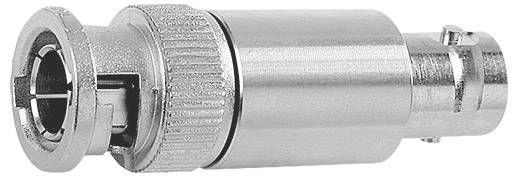

Telegärtner 100023618 100023618 BNC attenuator BNC plug - BNC socket 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
BNC attenuator
Type A
BNC plug
Type B
BNC socket
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 2 Piece(s) available
Highlights & Details
BNC attenuator, m-f, 2W 6GHz 3dB 50 OHM
- BNC plug - BNC socket
Technical specifications
- Packaging type
Piece
- Product type
BNC attenuator
- Type A
BNC plug
- Type B
BNC socket
- Content
1 pc(s)
- Max. frequency
6000 MHz
- Manufacturer part #
100023618
- RoHS-compliant
Yes
- Type
100023618
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3741921 Telegärtner 100023618 100023618 BNC attenuator BNC plug - BNC socket 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3741921 Telegärtner 100023618 100023618 BNC attenuator BNC plug - BNC socket 1 pc(s) Piece
Description
Telegärtner attenuators are used to attenuate RF signals. The area of application of the attenuators is in the test and measuring range as well as in antenna cables (e.g. mobile phones, W-LANs), in which the radiation power is to be set to certain values.
Z 50 Ω
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: M-f
Max. Frequency:6 GHz
Max. power 2 W
Return loss: Typ.: 1 GHz: -35 dB; 4 GHz: -22 dB; 6 GHz: -20 dB
Damping 3 dB
This text is machine translated.
Z 50 Ω
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: M-f
Max. Frequency:6 GHz
Max. power 2 W
Return loss: Typ.: 1 GHz: -35 dB; 4 GHz: -22 dB; 6 GHz: -20 dB
Damping 3 dB
This text is machine translated.
