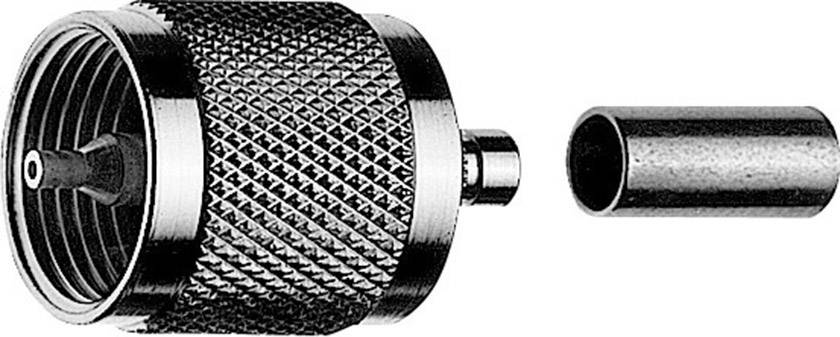

Telegärtner 100024325 100024325 UHF connector Plug, straight 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Cable category
RG 214/U
Product type
UHF connector
Connector type
Plug, straight
Impedance
50 Ω
Connection
Crimp
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
14-day return policy included
Highlights & Details
UHF plug connector
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Cable category
RG 214/U
- Product type
UHF connector
- Connector type
Plug, straight
- Impedance
50 Ω
- Connection
Crimp
- Content
1 pc(s)
- Cable Ø
10.80 mm
- Max. frequency
200 MHz
- Case material
Brass nickel plated
- Manufacturer part #
100024325
- Insulation material
PTFE
- Contact material
Brass silver plated
- RoHS-compliant
Yes
- Temperature range
-40 - +70 °C
- Type
100024325
- Seal type
Screw-on
Documents & Downloads
Datasheet
Datasheet 1366365 Telegärtner 100024325 100024325 UHF connector Plug, straight 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366365 Telegärtner 100024325 100024325 UHF connector Plug, straight 50 Ω 1 pc(s)
Description
The UHF series is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled. Flexible cables up to 11 mm (0.433") in diameter can be used. Soldering and crimping techniques are used for terminating these connectors. Applications for the UHF connectors are for low-frequency communication equipment.
