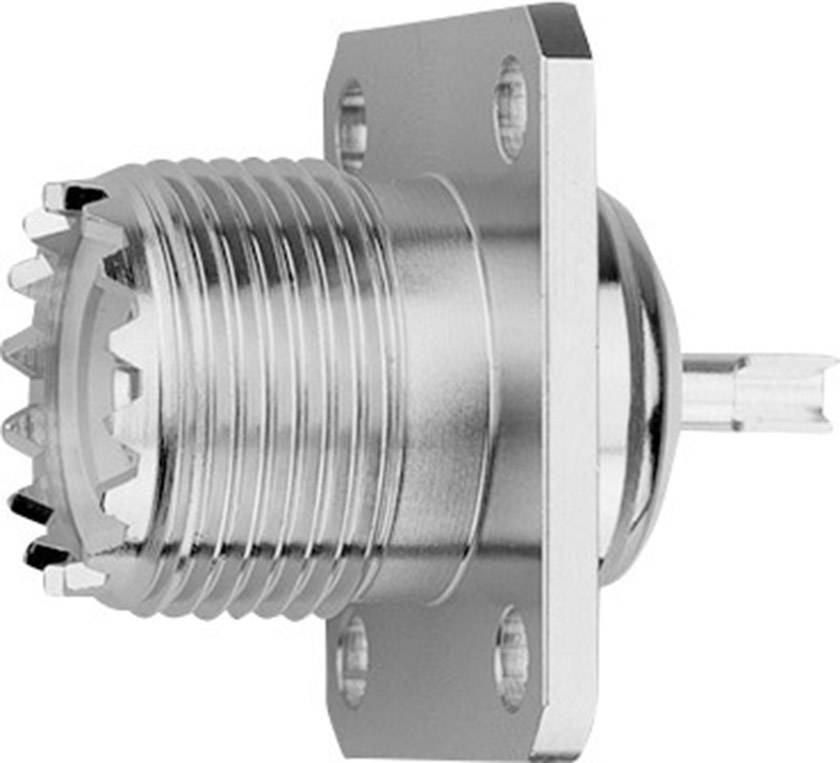

Telegärtner 100024344 100024344 UHF connector Socket, built-in 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Product type
UHF connector
Connector type
Socket, built-in
Impedance
50 Ω
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Only 10 Piece(s) available
Highlights & Details
UHF plug connector
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Product type
UHF connector
- Connector type
Socket, built-in
- Impedance
50 Ω
- Connection
Soldering
- Content
1 pc(s)
- Max. frequency
200 MHz
- Front panel thickness
13.2 mm
- Case material
Brass nickel plated
- Manufacturer part #
100024344
- Insulation material
PTFE
- Contact material
Brass silver plated
- RoHS-compliant
Yes
- Temperature range
-40 - +70 °C
- Type
100024344
- Seal type
Screw-on
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1366746 Telegärtner 100024344 100024344 UHF connector Socket, built-in 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366746 Telegärtner 100024344 100024344 UHF connector Socket, built-in 50 Ω 1 pc(s)
Description
The UHF series is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled. Flexible cables up to 11 mm (0.433") in diameter can be used. Soldering and crimping techniques are used for terminating these connectors. Applications for the UHF connectors are for low-frequency communication equipment.
