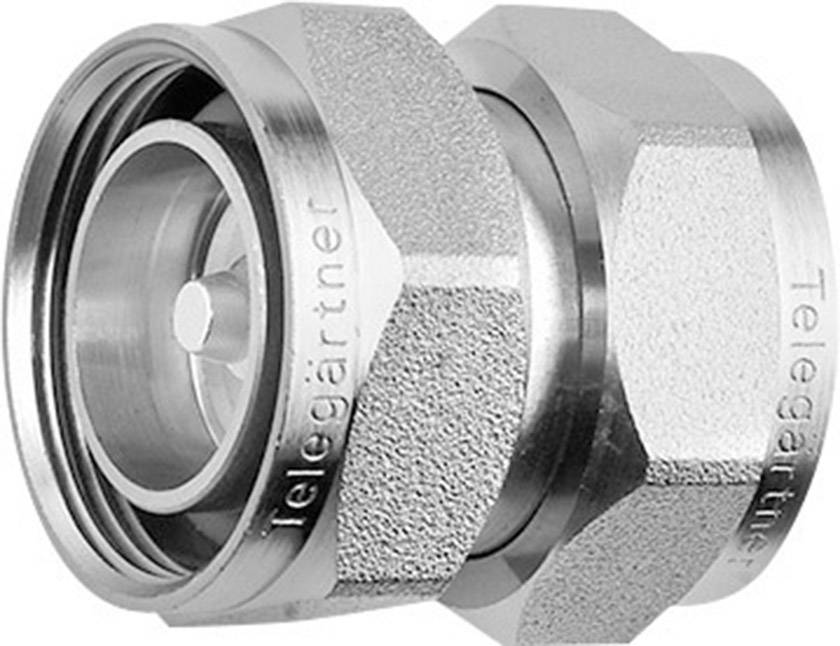

Telegärtner 100024553 100024553 HF adapter 7-16 DIN plug - 7-16 DIN plug 1 pc(s)
EAN:
Part number:
Item no:
Product type
HF adapter
Type A
7-16 DIN plug
Type B
7-16 DIN plug
Connector type
Adapter
Impedance
50 Ω
Datasheet (PDF)
Number
Total (€ 39.49 / piece)
€ 44.53
-11 %
€ 39.49
plus VAT.
14-day return policy included
Highlights & Details
Adapter 7-16 DIN
- 7-16 DIN plug - 7-16 DIN plug
Our service for you
Technical specifications
- Product type
HF adapter
- Type A
7-16 DIN plug
- Type B
7-16 DIN plug
- Connector type
Adapter
- Impedance
50 Ω
- Content
1 pc(s)
- Max. frequency
7.5 GHz
- Case material
Brass tin plated
- Manufacturer part #
100024553
- Insulation material
PTFE
- RoHS-compliant
Yes
- Type
100024553
Documents & Downloads
Datasheet
Datasheet 1366253 Telegärtner 100024553 100024553 HF adapter 7-16 DIN plug - 7-16 DIN plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366253 Telegärtner 100024553 100024553 HF adapter 7-16 DIN plug - 7-16 DIN plug 1 pc(s)
Description
The 7-16 (DIN) series is a very popular coax connector for use in Mobile Radio equipment. It is a larger sized precision weatherproof connector supplied with a thread coupling. Depending on design, this connector can be used up to 7.5 GHz. Only 50 Ω impedances are available. Connector styles are available for flexible, conformable, semi-rigid and corrugated cable types. Solder, clamp or crimp cable terminations are used for this series. Applications for these connectors are typically radio base station interconnection and test equipment where vibration resistance and environmental protection is required. Special design techniques for this series of connectors have resulted in previously unattainable levels of performance in regard to return loss (VSWR) and intermodulation distortion. 7-16 connectors allow high-power high-frequency transmission in coaxial lines.
