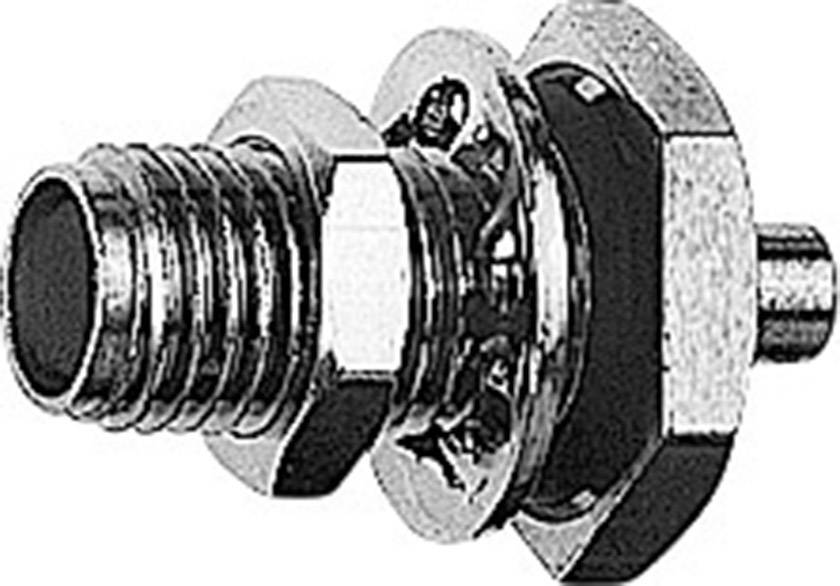

Telegärtner 100024675 100024675 SMA connector Socket, built-in 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Cable category
UT 85
Product type
SMA connector
Connector type
Socket, built-in
Impedance
50 Ω
Connection
Soldering
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 10.08 / piece)
€ 13.44
-25 %
€ 10.08
plus VAT.
Highlights & Details
SMA connectors
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Cable category
UT 85
- Product type
SMA connector
- Connector type
Socket, built-in
- Impedance
50 Ω
- Connection
Soldering
- Content
1 pc(s)
- Cable Ø
2.20 mm
- Case material
Brass gold plated
- Manufacturer part #
100024675
- Insulation material
PTFE
- Contact material
Brass gold plated
- RoHS-compliant
Yes
- Temperature range
-55°C to 155 °C
- Type
100024675
- Seal type
Screw-on
Documents & Downloads
Datasheet
Datasheet 1366075 Telegärtner 100024675 100024675 SMA connector Socket, built-in 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366075 Telegärtner 100024675 100024675 SMA connector Socket, built-in 50 Ω 1 pc(s)
Description
The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the SMA connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fittechniques, as well as surface mount types (SMD). Solder, crimp and clamp techniques are used to terminate this series to cables. SMA applications include communications, satellite and test equipment.
