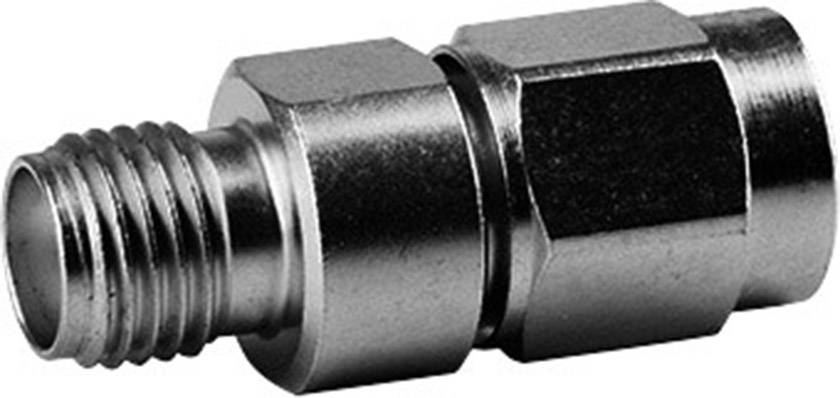

Telegärtner 100024795 100024795 HF adapter SMA socket - SMA plug 1 pc(s)
EAN:
Part number:
Item no:
Product type
HF adapter
Type A
SMA socket
Type B
SMA plug
Connector type
Connector, straight
Impedance
50 Ω
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
14-day return policy included
Highlights & Details
- SMA socket - SMA plug
Technical specifications
- Product type
HF adapter
- Type A
SMA socket
- Type B
SMA plug
- Connector type
Connector, straight
- Impedance
50 Ω
- Content
1 pc(s)
- Case material
Brass gold plated
- Manufacturer part #
100024795
- Insulation material
PTFE
- RoHS-compliant
Yes
- Type
100024795
- Seal type
Screw-on
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1366758 Telegärtner 100024795 100024795 HF adapter SMA socket - SMA plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366758 Telegärtner 100024795 100024795 HF adapter SMA socket - SMA plug 1 pc(s)
Description
The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the SMA connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fittechniques, as well as surface mount types (SMD). Solder, crimp and clamp techniques are used to terminate this series to cables. SMA applications include communications, satellite and test equipment.
