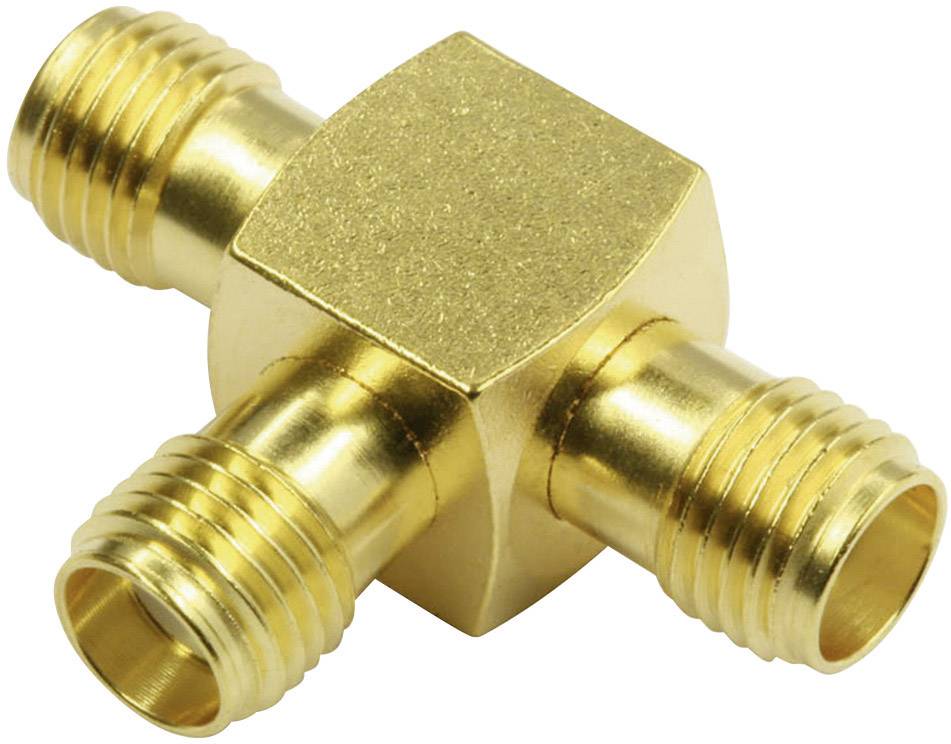

Telegärtner 100024805 100024805 SMBA adapter SMA socket - SMA socket, SMA socket 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMBA adapter
Type A
SMA socket
Type B
SMA socket
SMA socket
Connector type
Adapter, straight
Impedance
50 Ω
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.52
3
4% = € 1.02
€ 22.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
14-day return policy included
Highlights & Details
SMBA adapter
- SMA socket - SMA socket, SMA socket
Our service for you
Technical specifications
- Product type
SMBA adapter
- Type A
SMA socket
- Type B
SMA socket
SMA socket
- Connector type
Adapter, straight
- Impedance
50 Ω
- Content
1 pc(s)
- Case material
Brass gold plated
- Manufacturer part #
100024805
- Insulation material
PTFE
- RoHS-compliant
Yes
- Type
100024805
Documents & Downloads
Datasheet
Datasheet 1090945 Telegärtner 100024805 100024805 SMBA adapter SMA socket - SMA socket, SMA socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1090945 Telegärtner 100024805 100024805 SMBA adapter SMA socket - SMA socket, SMA socket 1 pc(s)
Description
The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the SMA connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fittechniques, as well as surface mount types (SMD). Solder, crimp and clamp techniques are used to terminate this series to cables. SMA applications include communications, satellite and test equipment.
