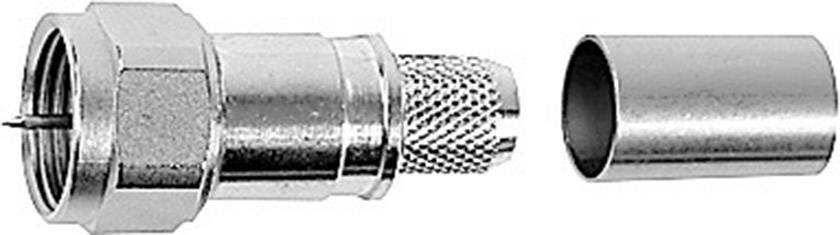

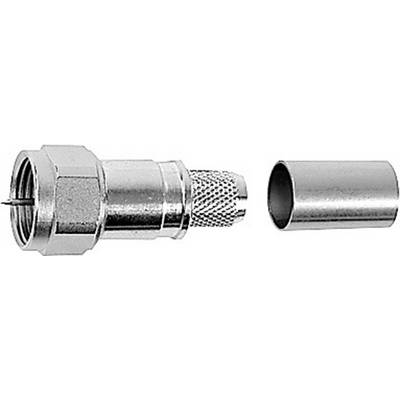

Telegärtner 100025625 100025625 F connector Plug, straight 75 Ω 1 pc(s)
EAN:
Part number:
Item no:
Cable category
1.2/4.9C AL-F
Product type
F connector
Connector type
Plug, straight
Impedance
75 Ω
Connection
Crimp
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Cable category
1.2/4.9C AL-F
- Product type
F connector
- Connector type
Plug, straight
- Impedance
75 Ω
- Connection
Crimp
- Content
1 pc(s)
- Cable Ø
6.80 mm
- Max. frequency
3 GHz
- Case material
Brass tin plated
- Manufacturer part #
100025625
- Insulation material
PTFE
- Contact material
Brass gold plated
- RoHS-compliant
Yes
- Temperature range
-40 - +155 °C
- Type
100025625
- Seal type
Screw-on
- Version
Cable
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1366083 Telegärtner 100025625 100025625 F connector Plug, straight 75 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366083 Telegärtner 100025625 100025625 F connector Plug, straight 75 Ω 1 pc(s)
Description
The F Series RF connectors from Telegärtner are designed for use up to 3 GHZ and as such are ideally suitable for HDTV applications. The F series connectors have a threaded coupling mechanism; the impedance is controlled at 75 Ohm. Cable terminations are either crimp or solder designs. The F series connectors are primarily used in the transmission of analogue and digital video signals. With regards to return loss Telegärtner offers optimized types for professional applications, in particular for HDTV signal transmission, which feature excellent transmission performance up to 3 GHz respectively up to 4.5 GHz.
