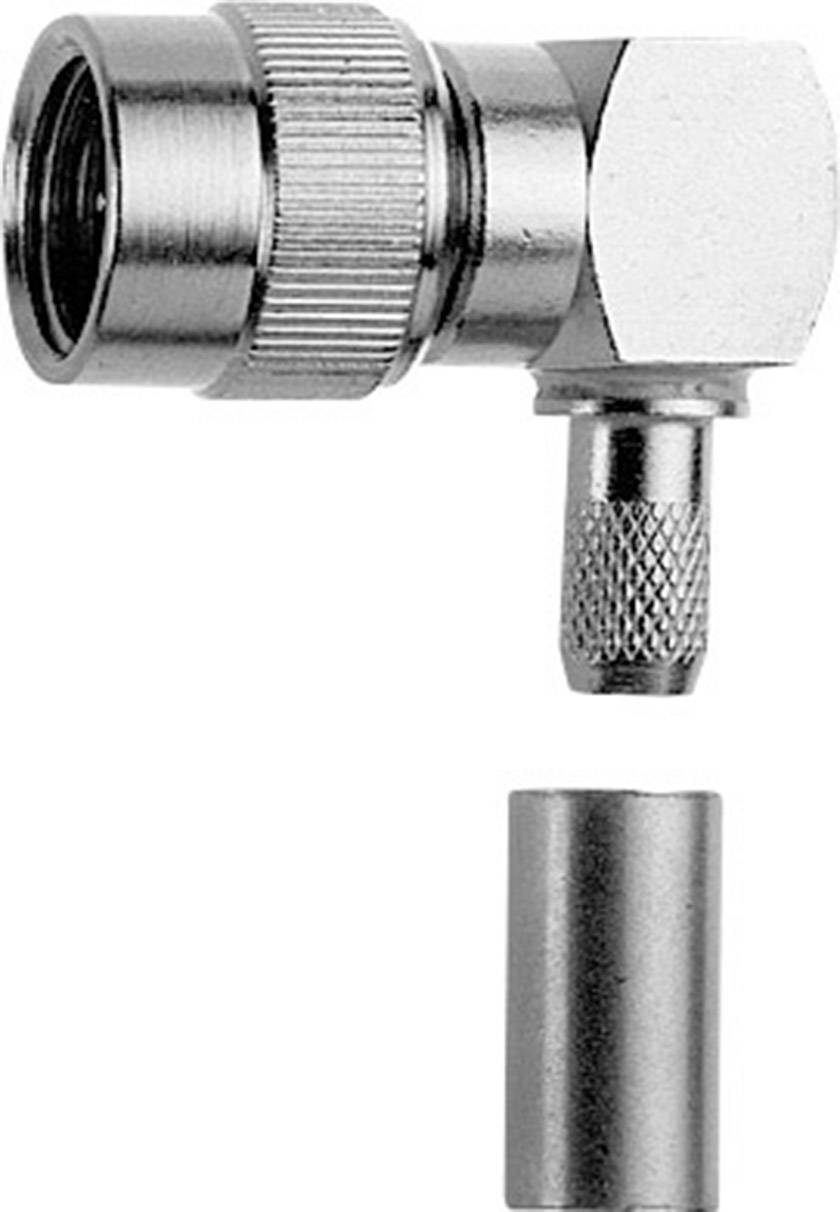

Telegärtner 100027575 100027575 Mini-UHF connector Plug, right angle 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Cable category
RG 58 C/U
Product type
Mini-UHF connector
Connector type
Plug, right angle
Impedance
50 Ω
Connection
Crimp
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.29
5
6% = € 0.38
€ 5.91
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 6.29 / piece)
€ 7.55
-17 %
€ 6.29
plus VAT.
14-day return policy included
Highlights & Details
Mini-UHF-plug connector
- The plug socket - name, according to the shape of the inner conductor defined.
- This text is machine translated.
Our service for you
Technical specifications
- Cable category
RG 58 C/U
- Product type
Mini-UHF connector
- Connector type
Plug, right angle
- Impedance
50 Ω
- Connection
Crimp
- Content
1 pc(s)
- Cable Ø
4.95 mm
- Max. frequency
2.5 GHz
- Case material
Brass nickel plated
- Manufacturer part #
100027575
- Contact material
Brass gold plated
- RoHS-compliant
Yes
- Temperature range
-40 - +85 °C
- Type
100027575
- Seal type
Screw-on
Documents & Downloads
Datasheet
Datasheet 1366166 Telegärtner 100027575 100027575 Mini-UHF connector Plug, right angle 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366166 Telegärtner 100027575 100027575 Mini-UHF connector Plug, right angle 50 Ω 1 pc(s)
Description
The Mini-UHF series is a miniaturized version of the UHF connector, but has improved electrical performance. The Mini-UHF has threaded coupling and can be used up to a frequency of 2.5 GHz. Unlike the UHF, the Mini-UHF series is impedance controlled at 50 Ω. Connector styles are available for flexible and conformable cables. Solder and crimp techniques are used to terminate this series. Applications for the Mini-UHF series are in the area of mobile radios and mobile communications; especially in vehicles.
