Buy Telegärtner 100027647 100027647 SMA connector Socket, straight 50 Ω 1 pc(s)

A gold-coloured coaxial cable with a removable sheath, designed for connecting and transmitting high-frequency signals.

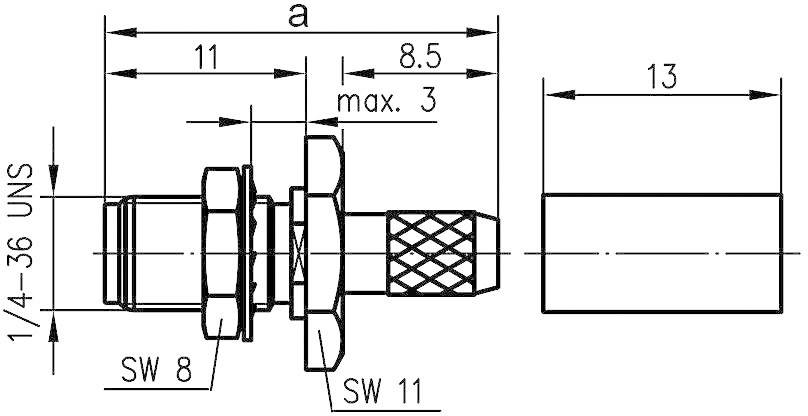

Technical Drawing of a Connector with Dimensions: 11, 8.5, max. 3, 13 mm. Thread Size: 1/4-36 UNS. Spanner Size SW 8, SW 11.

1/2

Cable category

RG 316/U

Content

1 pc(s)

Impedance

50 Ω

Connection

Crimp

Connector type

Socket, straight

Datasheet (PDF)

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 9.24 / piece)

€ 13.44

-31 %

€

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

SMA connectors

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Technical specifications

Mounting dimensions: Z27

Cable category: RG 316/U

Content: 1 pc(s)

Impedance: 50 Ω

Connection: Crimp

Seal type: Screw-on

Manufacturer part #: 100027647

Type: 100027647

Connector type: Socket, straight

Cable Ø: 2.60 mm

Insulation material: PTFE

Insulation resistance: ≥ 5 GΩ

Contact material: Gold plated

Mounting hole diameter: 27 mm

Temperature range: -55 - +155 °C

RoHS-compliant: Yes

Product type: SMA connector
