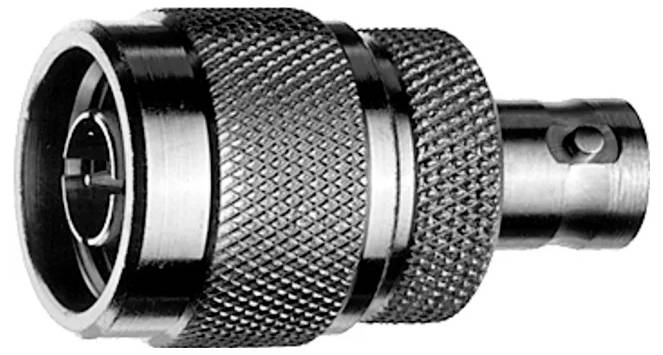

Telegärtner 100123517 100123517 N adapter BNC socket - N plug 1 pc(s)
EAN:
Part number:
Item no:
Product type
N adapter
Type A
BNC socket
Type B
N plug
Connector type
Plug
Socket
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Only 5 Piece(s) available
Highlights & Details
BNC to N Bu-Sti
- BNC socket - N plug
Technical specifications
- Product type
N adapter
- Type A
BNC socket
- Type B
N plug
- Connector type
Plug
Socket
- Content
1 pc(s)
- Manufacturer part #
100123517
- RoHS-compliant
Yes
- Type
100123517
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3737306 Telegärtner 100123517 100123517 N adapter BNC socket - N plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3737306 Telegärtner 100123517 100123517 N adapter BNC socket - N plug 1 pc(s)
Description
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Type BNC (f) / N (m)
Max. Frequency:4 GHz
Return loss: Typ.: 1 GHz: -40 dB; 2 GHz: -39 dB ; 4 GHz: -26 dB
MIL-STD UG-201/U
Mating cycles ≥ 500
This text is machine translated.
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Type BNC (f) / N (m)
Max. Frequency:4 GHz
Return loss: Typ.: 1 GHz: -40 dB; 2 GHz: -39 dB ; 4 GHz: -26 dB
MIL-STD UG-201/U
Mating cycles ≥ 500
