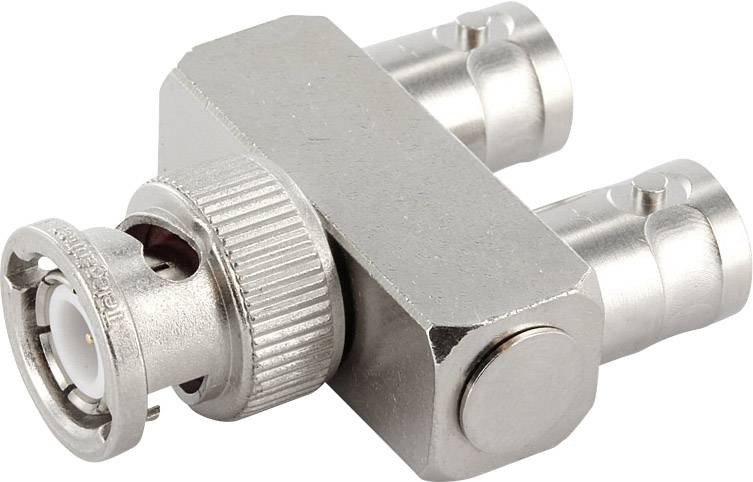

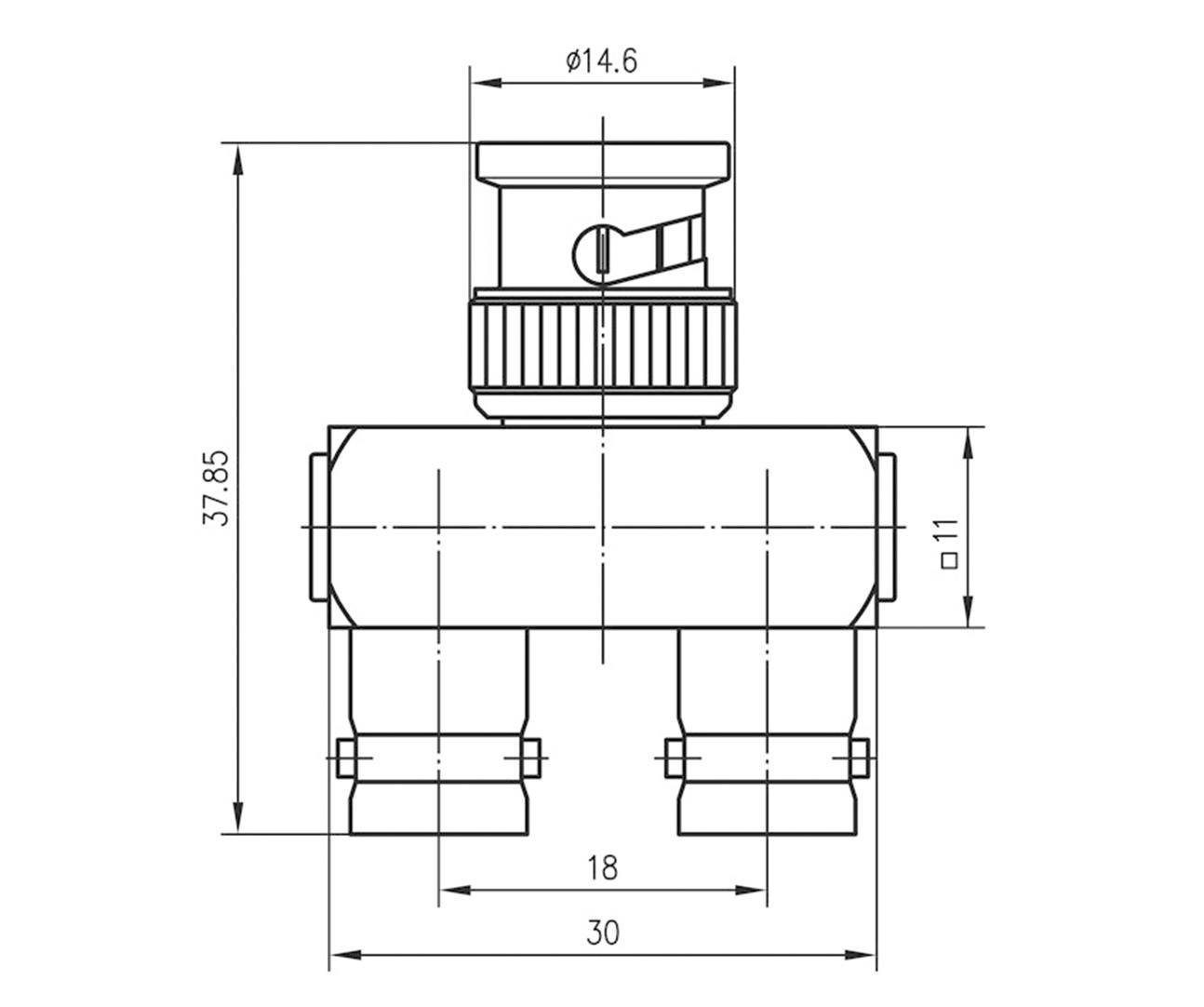

Telegärtner J01004A0009 BNC adapter BNC socket - BNC plug, BNC socket 1 pc(s)
EAN:
Part number:
Item no:
Product type
BNC adapter
Type A
BNC socket
Type B
BNC plug
BNC socket
Connector type
Adapter, Y-shaped
Impedance
50 Ω
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
5
3% = € 0.73
€ 23.63
10
5% = € 1.22
€ 23.14
50
10% = € 2.44
€ 21.92
100
20% = € 4.87
€ 19.49
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 24.36 / piece)
€ 25.20
€ 24.36
plus VAT.
Highlights & Details
BNC Y-adapter
- BNC socket - BNC plug, BNC socket
Our service for you
Technical specifications
- Product type
BNC adapter
- Type A
BNC socket
- Type B
BNC plug
BNC socket
- Connector type
Adapter, Y-shaped
- Impedance
50 Ω
- Content
1 pc(s)
- Max. frequency
4 GHz
- Case material
Brass nickel plated
- Manufacturer part #
J01004A0009
- Insulation material
PTFE
- RoHS-compliant
Yes
- Type
J01004A0009
Documents & Downloads
Datasheet
Datasheet 1366636 Telegärtner J01004A0009 BNC adapter BNC socket - BNC plug, BNC socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1366636 Telegärtner J01004A0009 BNC adapter BNC socket - BNC plug, BNC socket 1 pc(s)
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
